4 CONSTRUCTION

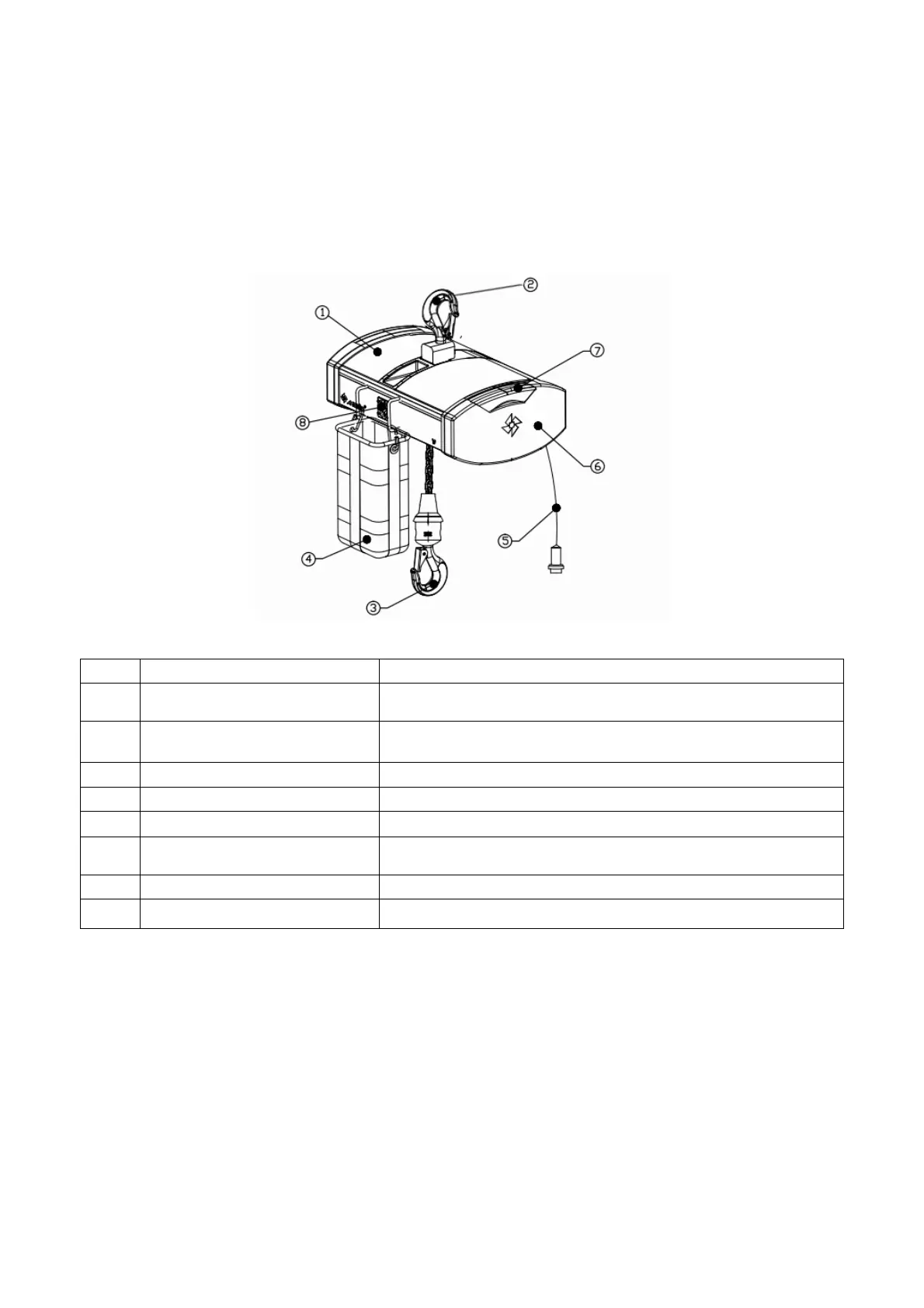

4.1 Identifying the key parts of the hoist
Pos.
Part
Description
1
Hoisting machinery
Equipment composed of hoist frame, hoisting motor, gear,
clutch and brake
2
Upper hook
Rotating upper hook, normally used when hoist is operated in
inverted position
3
Hook
Hook includes hook housing, hook forging and rubber grip
4
Chain bag
Bag where the lifting chain is gathered and stored
5
Control cable+ plug
Plug for connecting power or controls to the hoist
6
Buffers
Rubber buffers at each comer to protect hoist against external
shocks
7
Handles
Integrated handles for easy carrying of hoist
8
Chain guide
Chain flux type chain guide for precise chain alignment
