The maximum height of lift with geared limit switch is the following:
Frame size
HOL [m] (ft.)
Ratio 180
Ratio 280
SR02
20(65)
30 (98)
SR05
25(82)
39(127)
SR10
36(115)
56(180)
5

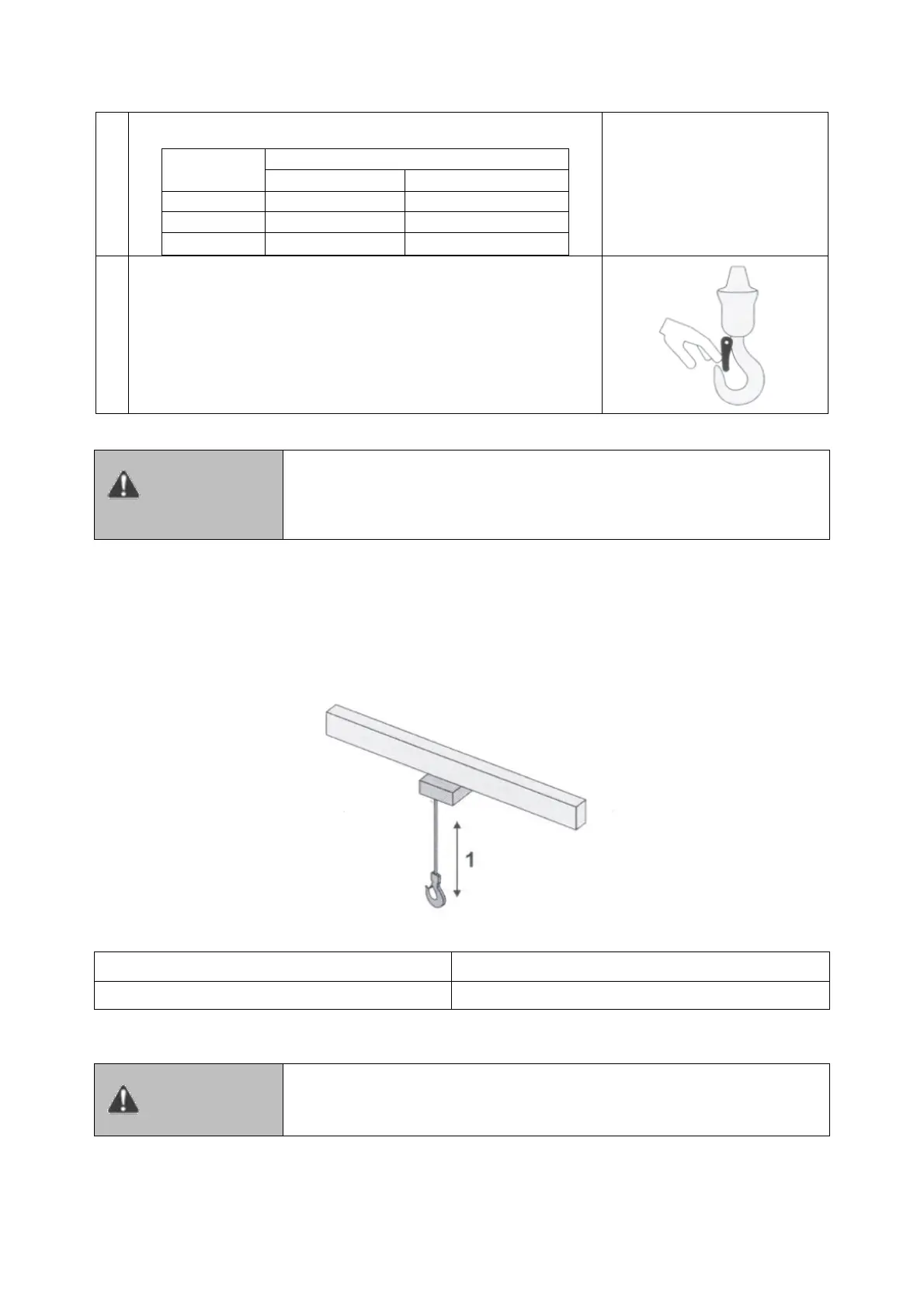

Safety latch
Check to ensure that the hook safety latch is on the hook, is in good
condition and closes automatically.
WARNING
Never release the emergency stop button and drive the product until
you are sure that it is safe to do so. Releasing the emergency stop
button and driving the product when it is unsafe to do so could
cause death or serious injury.
7.3 Movements
The hoist moves in the following directions
Movements
Description
1. Hoist movements
Vertical up and down movements of the lifting device
Essential prerequisites for this section
WARNING
When operating the product, make sure that there are no people
situated underneath or nearby the load. Operating the product when
people are underneath or near the load could cause death or serious
injury.
