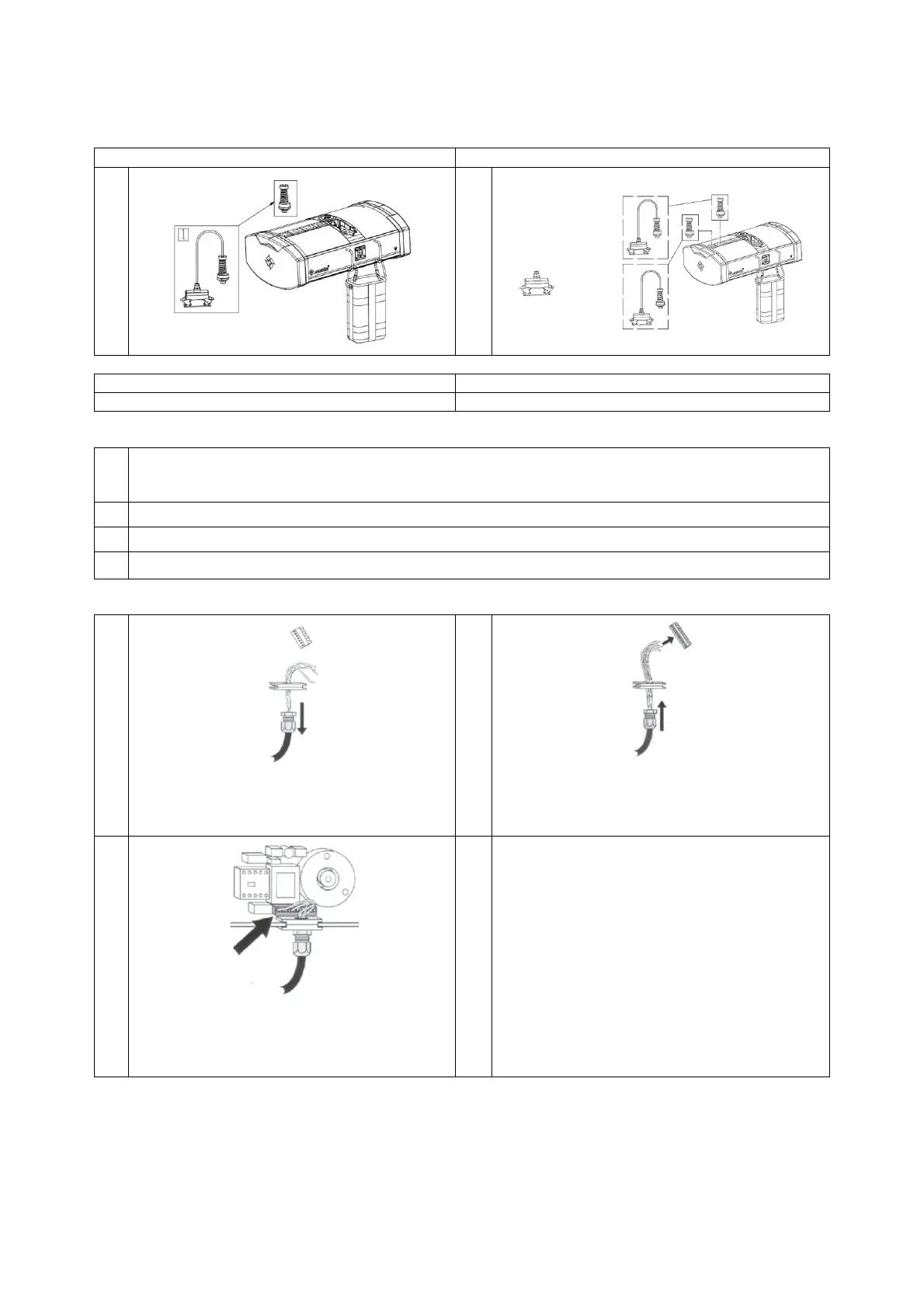

Installing Pendant Cable
Cable Inputs
Configuration A
Configuration B
1
2
Pos.
Part
1 Power supply
2 Control Cable
Carry out the following procedures before connecting the hoist to the main network:
1
Check that the rated voltages correspond to the main voltage.
Voltages and frequencies marked on the data plate of motors driven by inverter can deviate from the
values on the data plate for the hoist.
2
Check that the power supply to the hoist is protected with fuses of the correct size.
3
Check that the phase sequence is correct.
4
Check carefully all connections.
Connecting the hoist to power supply
1
Remove wires from power socket and
open cable gland to remove wire from the
assembly.
2
Place the main power cable through the
cable gland to the connector and connect
wires to socket. Pay attention to the order
of wires to ensure correct phase sequence.
3
Slide the assembly in place and connect
the socket.
Close the cover and tighten to correct
torque.
