System Diagrams and Specifications
134 5016072 A
Diagrams

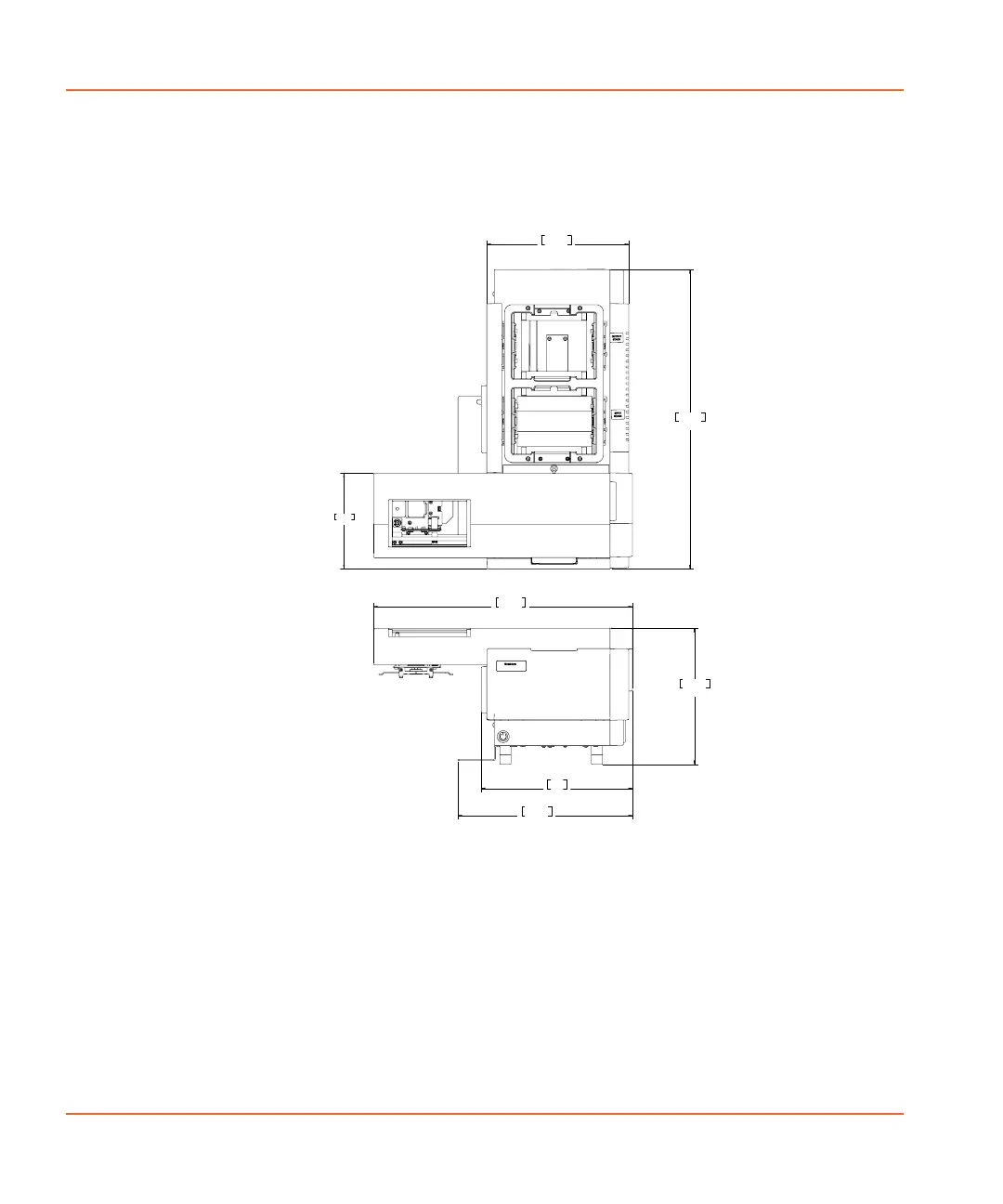

Figure A-1 Dimensions of the StakMax instrument
17.3
440.18
9.1
231.14
11.7
296.57
10.1
257
20.0
508.53
6.4
162.51
9.5
241.30
Vertical clearance:
20 plate stack = 21.27 inches (540.3 mm)
40 plate stack = 31.20 inches (792.5 mm)
50 plate stack = 40.40 inches(1026.2 mm)
[ ] = metric
No [ ] = imperial
