Operation
94 5016072 A
Single Plate Loading Tool
Place the single plate loading tool into the input area of the stacker.
Load a single plate in the opening. See Figure 3-16.

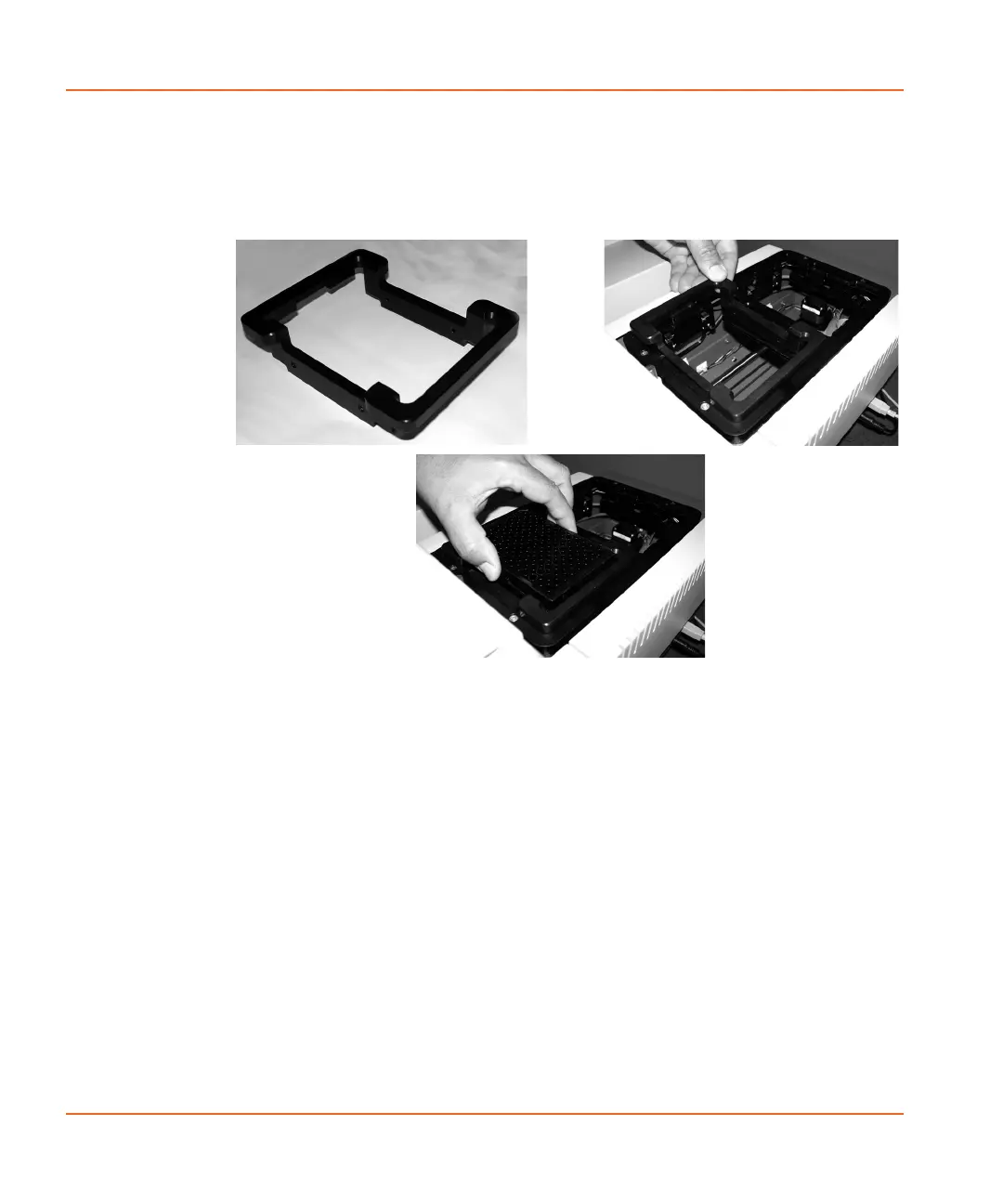

Figure 3-16 (A) Single plate loading tool, (B) inserting the tool, (C)
loading a plate.
A
B
C
