StakMax Microplate Handling System User Guide
5016072 A 93
8. Use your thumbs to unclip the Unload Plate Ring from the
magazine by pushing the two spring clips on the Unload Plate
Ring away from the crossing bars on the sides of the magazine.

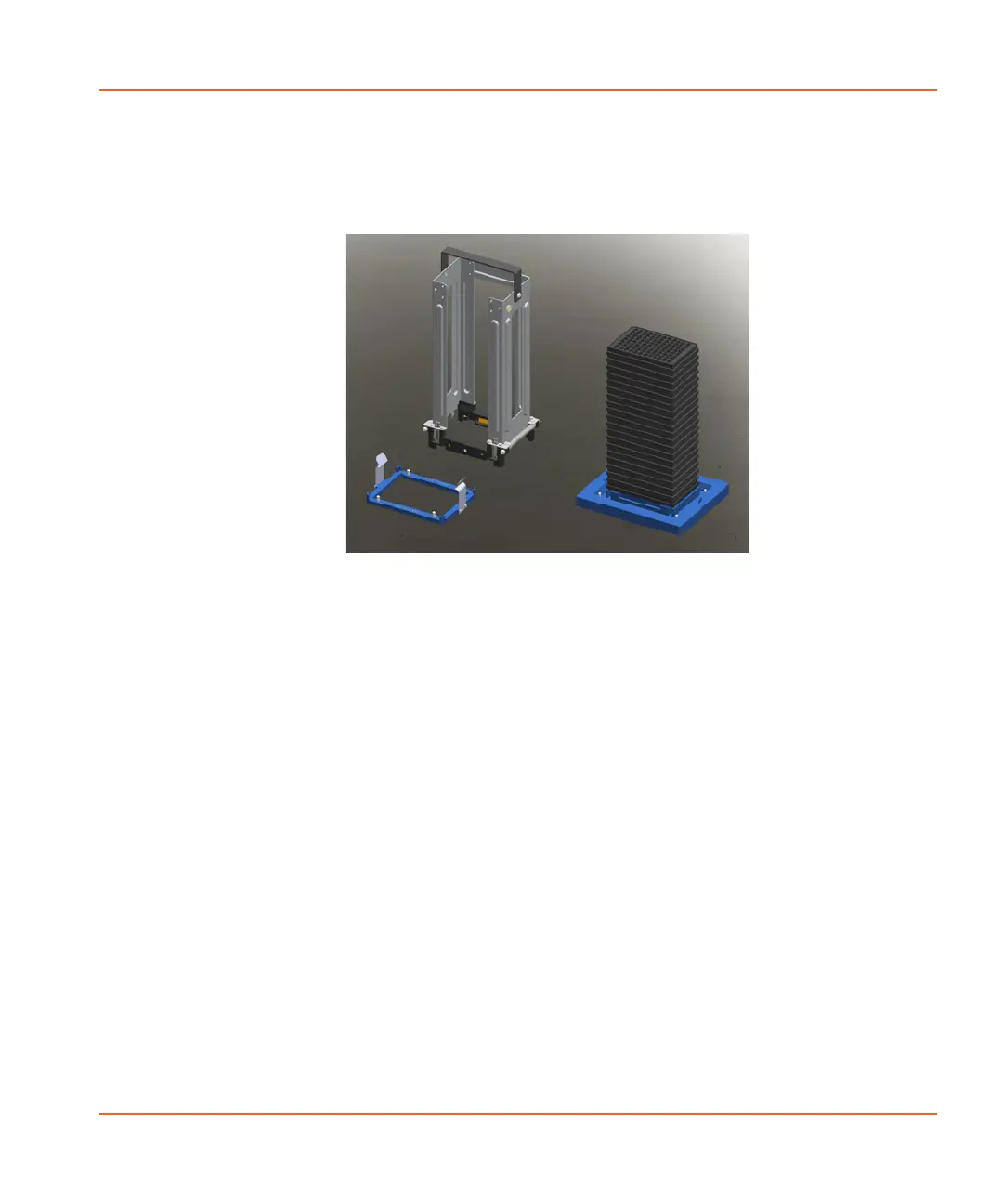

Figure 3-15 Empty magazine unclipped from ring, next to
plates
9. Remove the Unload Plate Ring from the magazine.
To unload another magazine, repeat Step 1 through Step 8.
