Operation
88 5016072 A
To unload plates from a StakMax magazine
1. Place the Unload Plate Ring onto the Plate Loading Base and
make sure it is securely seated in the base.

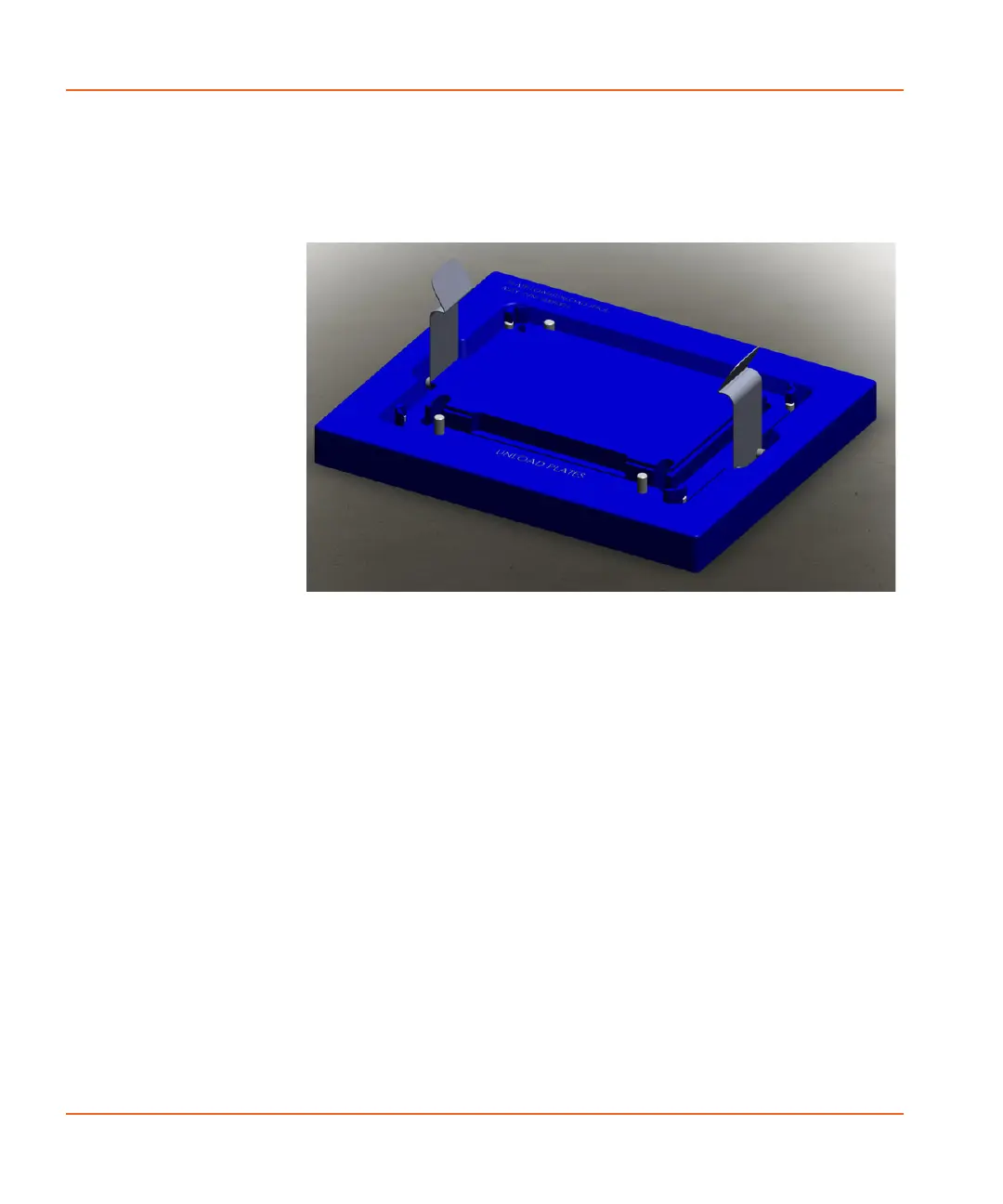

Figure 3-10 Unload Plate Ring seated in Plate Loading Base
2. Using the magazine handle, pick up the loaded magazine.
StakMax-UG-5016072A.book Page 88 Friday, October 21, 2011 3:51 PM
