3. Carefully lower the loaded magazine over the top of the tool,
aligning the corners of the black aluminium magazine base into
the blue raised corners of the Unload Plate Ring.

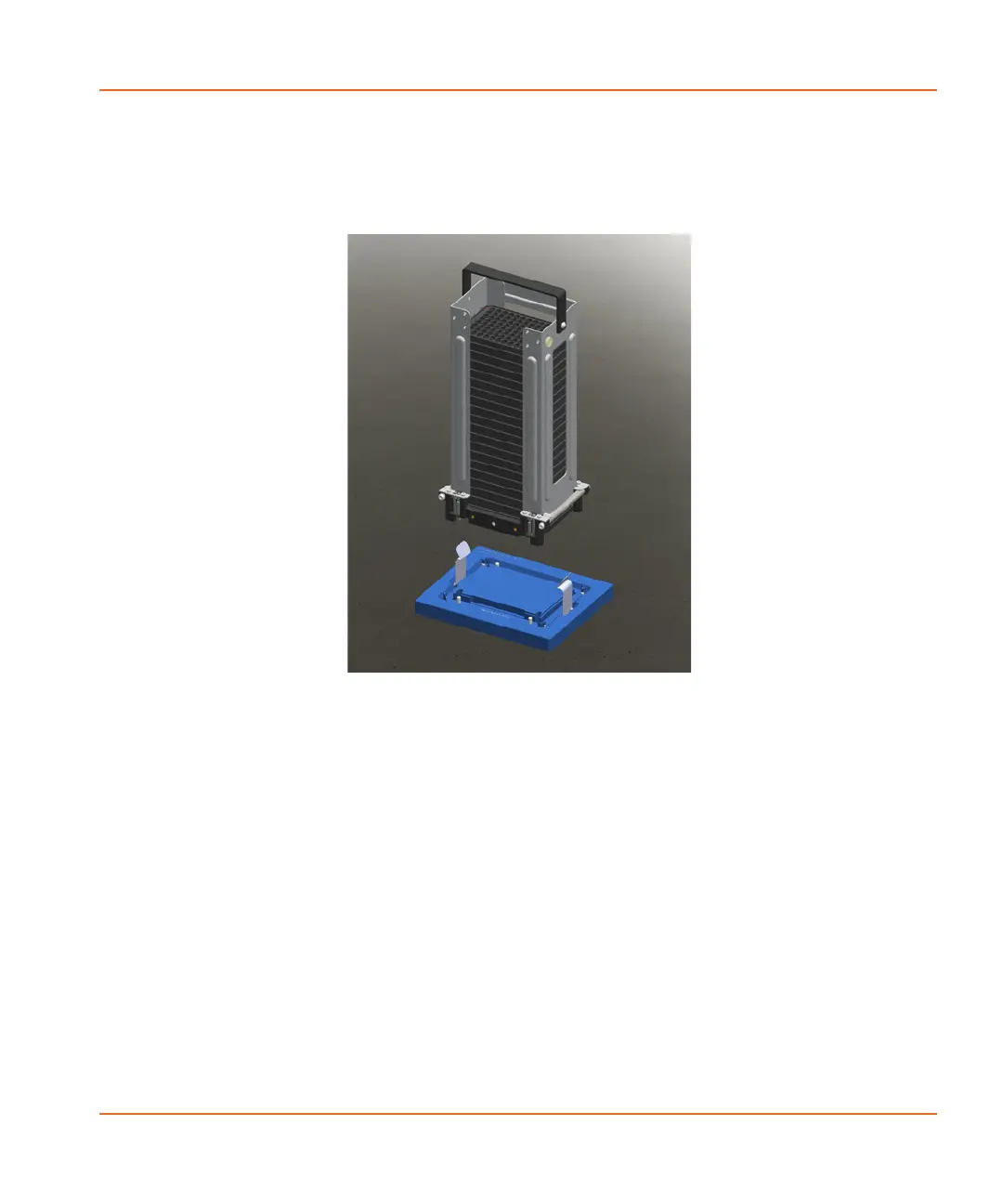

Figure 3-11 Loaded magazine positioned over tool
4. Place the loaded magazine on top of the tool, making sure the
two spring clips on the Unload Plate Ring are securely clipped on
the crossing bars on each side of the magazine.
