Operation
90 5016072 A
5. When the magazine is securely seated on the Unload Plate Ring,
the four (4) hooks at the four (4) corners on the bottom of the
magazine are retracted to allow the plates to slide out from the
bottom of the magazine.

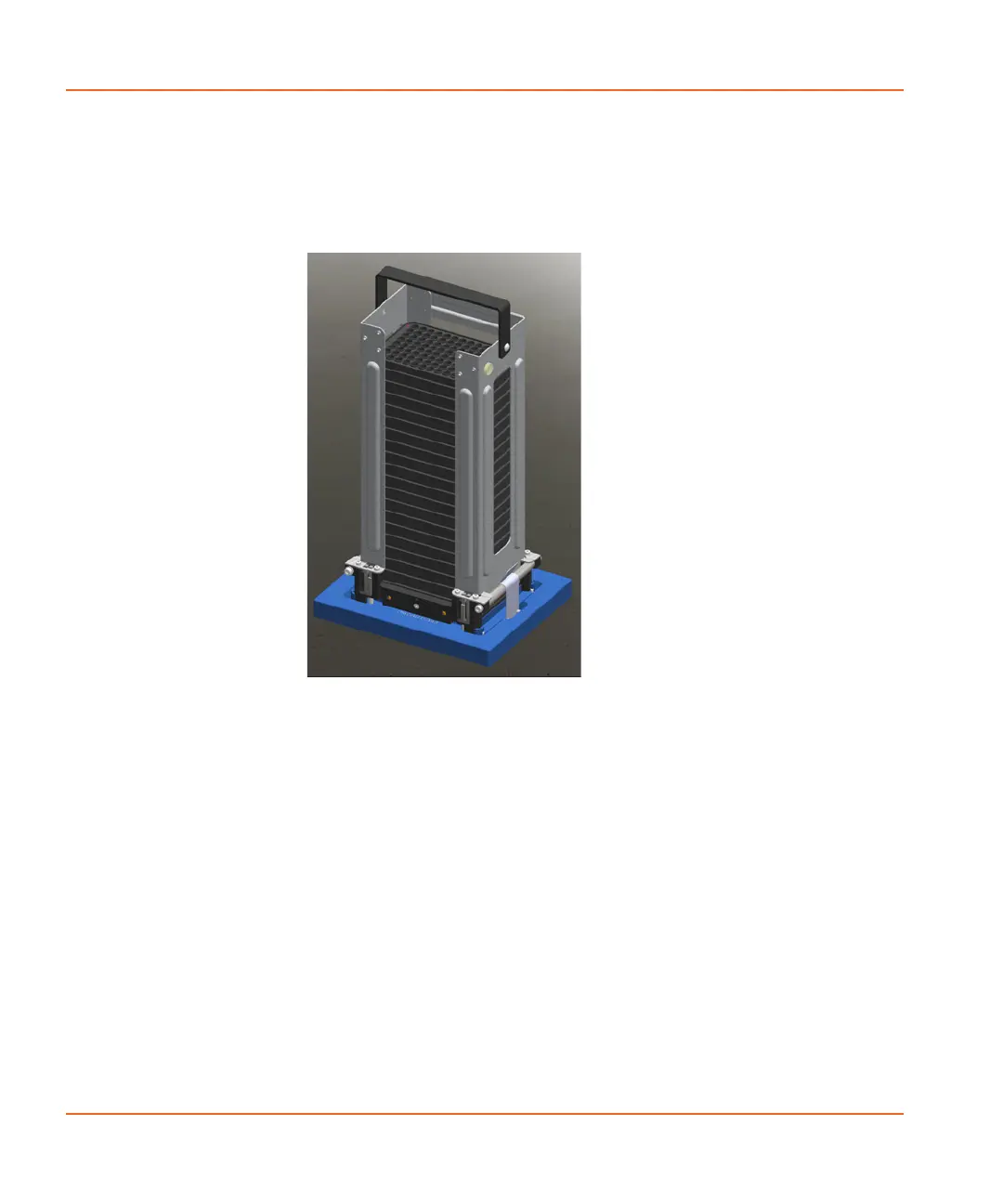

Figure 3-12 Loaded magazine seated on tool
