StakMax Microplate Handling System User Guide
5016072 A 87
6. Using the magazine handle, slowly lift the loaded magazine
straight up and off the Plate Loading Base, and relocate the
magazine and plate stack to an appropriate location.

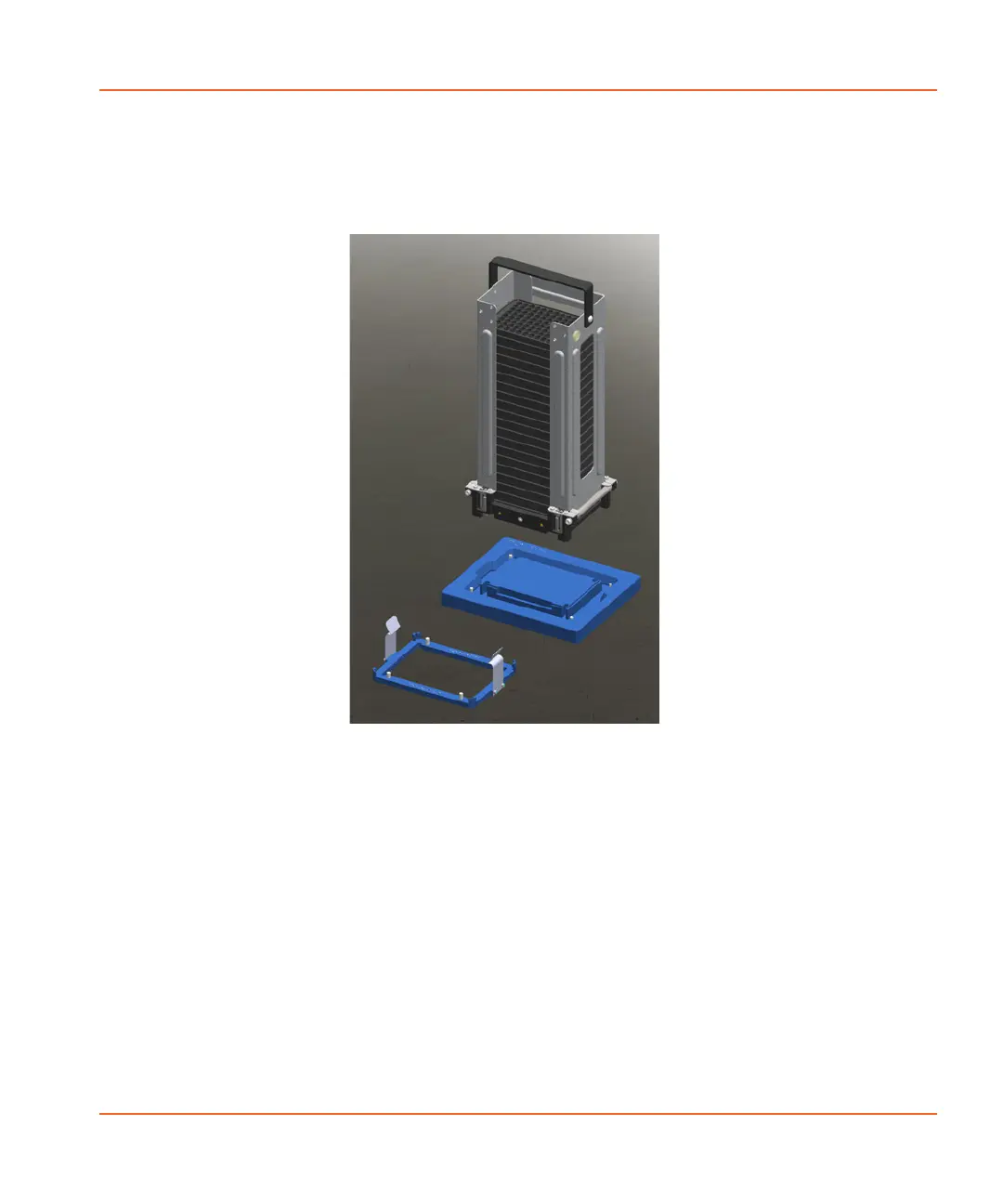

Figure 3-9 Loaded magazine removed from Plate Loading Base
7. To load another magazine with plates, repeat Step 2 through
Step 6.
8. To store the tool, replace the Unload Plate Ring in the recessed
channel of the Plate Loading Base.
The Magazine Loading and Unloading Tool is ready to unload
plates.
