Electrical installation
MSD Single-Axis System Operation Manual AC-AC Servo Drive
ID no.: CA65642-001 06/2018
moog

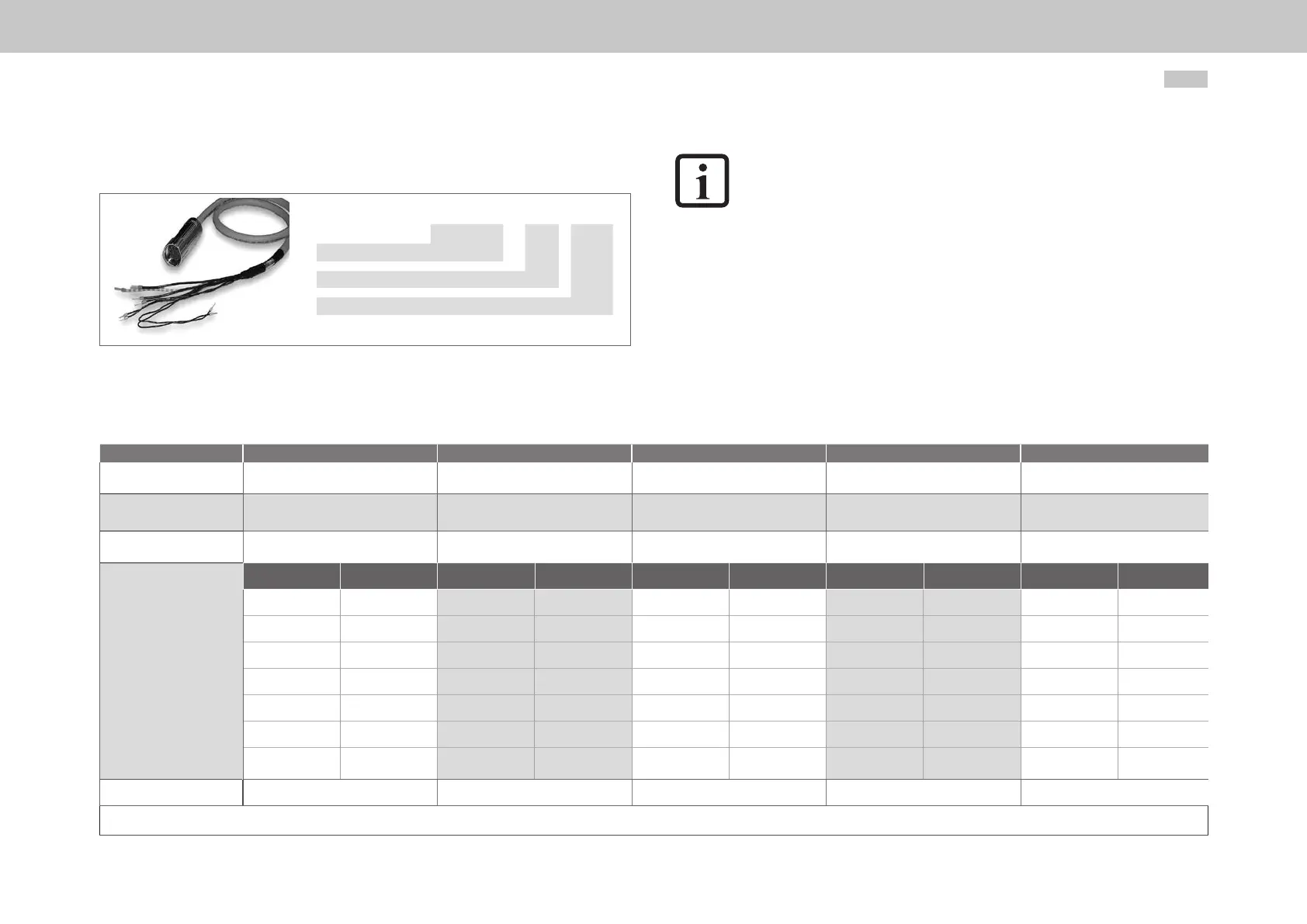

4.15.2 Ready made motor cable
C08336 - xxx yyy
1)
Ready made-up motor cable
Conguration option
Cable length (m)
1) yyy stands for length in meters; standard length: 1 m (3.28 ft), 5 m (16.40 ft), 10 m (32.80 ft), 15 m (49 ft), 20 m (65 ft), 50 m
(164 ft). Further length on request
Motor cable C08336-xxx-yyy Order code
Technical data motor cable
Technical data C08336-xxx-yyy
1),2)
CB05708-xxx-yyy
1),2)
CA44958-xxx-yyy
1),2)
CB00076-xxx-yyy
1),2)
CA98676-xxx-yyy
1),2)
Continuous rated
current
10A TBD 44A 61A 82A
Cable cross-section
4 x 1,5mm² + 2 x 1mm²
(4 x 0.0024 in² + 2 x 0.0016 in²)
4 x 4mm² + 2 x 1,5mm²
(4 x 0.0062 in² + 2 x 0.0023 in²)
4 x 6mm² + 2 x 1,5mm²
(4 x 0.0093 in² + 2 x 0.0023 in²)
4 x 10mm² + 2 x 1,5mm²
(4 x 0.00155 in² + 2 x 0.0023 in²)
4 x 16mm² + 2 x 1,5mm²
(4 x 0.0248 in² + 2 x 0.0023 in²)
Temperature range
-40bis +125°C
(-40 to +275 °F)
TBD
-50bis +90°C
(-58 to +194 °F)
TBD TBD
Wiring
Connector pin Wiring Connector pin Wiring Connector pin Wiring Connector pin Wiring Connector pin Wiring
2 U 2 U U U U U U U
4 VV 4 VV V VV V VV V VV
1 WWW 1 WWW W WWW W WWW W WWW
PE yellow / green PE yellow / green PE yellow / green PE yellow / green PE yellow / green
5 Brake + / white 5 Brake + / white + Brake - / white + Brake + / white + Brake + / white
6 Brake - / black 6 Brake - / black - Brake - / black - Brake - / black - Brake - / black
Connector
housing
Monitor
Connector
housing
Monitor
Connector
housing
Monitor
Connector
housing
Monitor
Connector
housing
Monitor
Connector type Size 1 Size 1 Size 1 Size 1 Size 1
1) yyy stands for length in meters; standard length: 1 m (3.28 ft), 5 m (16.40 ft), 10 m (32.80 ft), 15 m (49 ft), 20 m (65 ft), 50 m (164 ft). Further length on request
2) xxx-001 for standard conguration option, further options on request
Table 4.19 Technical data motor cable
NOTE:
Cores 5 and 6 (PTC) are required only for motors with optical encoders (G12,
G13, G6, G6M). For servo motors with resolver, the PTC is connected via the
resolver cable.
