Moog MSD User Manual

54
Commissioning
MSD Single-Axis System Operation Manual AC-AC Servo Drive
ID no.: CA65642-001 06/2018
moog

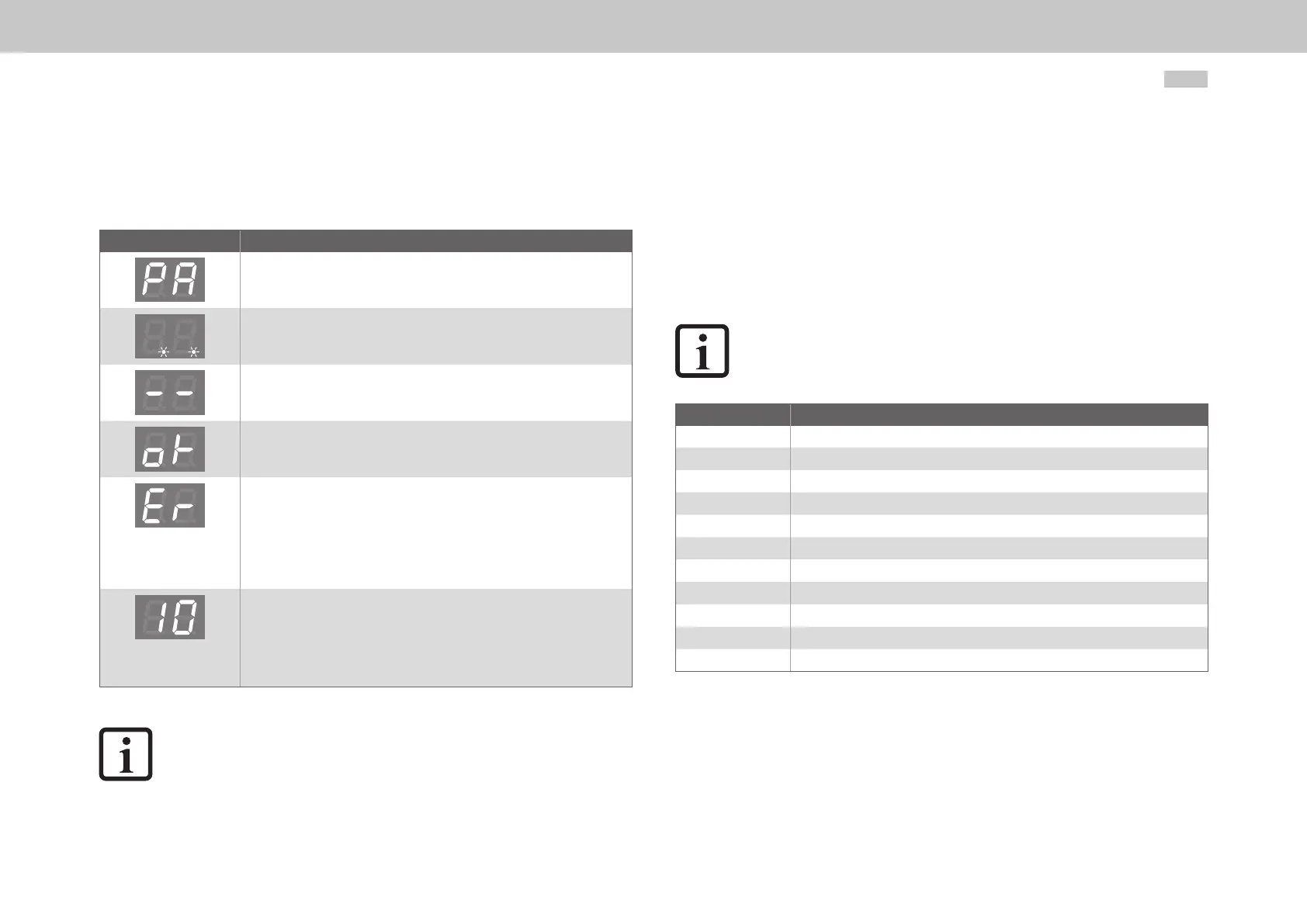

5.4.2 Display
The following table denes various indications and items of status information provided
via the display.
Display Meaning
Menu entries
("PA" in this case serves as an example, for further possible entries see chapter
5.2.1 and 5.4.2)
[Flashing decimal points]
Selected function in progress
[Two dashes]
Entry/function not available
[OK]
Action executed successfully, no errors
[Error]
• Action via control unit not executed successfully,
"Er" ashes alternately with the error number
(see chapter 5.4.3)
• Device error indication,
"Er" ashes alternately with error number and error location (see
"MSDServoDrive Device Help")
Numerical values
("10" in this case serves as an example)
• Data set and error numbers are shown in decimal on the parameter menu
(PA).
• All other values are displayed in hexadecimal. In these cases the 10
displayed would represent the decimal value 16.
Table 5.5 Meaning of display
NOTE:
If no input is made via the buttons for 60s, the display switches back to the
indication of the device status.
5.4.3 Parameter menu (PA)
The following functions are available on the Parameter menu:
y Reset device to factory settings
Error numbers
A failed user action is indicated by an error message. The message consists of the
alternating display of "Er" and the error number.
NOTE:
The error messages displayed during user data entry should not be confused
with drive error messages. You will nd detailed information on the error codes
and on error management in the "MSDServoDrive Device Help".
Error number Meaning
00
File system no error
01
File system any le system error
02
File system command rejected
03
File system function parameter invalid
04
File system create le error
05
File system open le error
17
Parameter reset to factory settings failed
18
Parameter write access failed
19
Save parameter data set non volatile failed
20
Not all parameters written
21
Error while reset to factory settings
Table 5.6 Error numbers
