Commissioning
5.4.4 Ethernet IP address menu (IP)
An Ethernet TCP/IP port is available as a service and diagnostics interface. The IP
address is set in the factory to 192.168.39.5. It can be changed using the PC software
MoogDriveADministrAtor5 or via the display.
Menu level
Parameter
Value
range
Meaning Explanation
1 2
IP
Iu b0 00..FF IP address
update byte0
Setting for byte0 of the IP address in
hexadecimal format
(e.g. "05" in 192.168.39.5)
b1 00..FF IP address
update byte1
Setting for byte1 of the IP address in
hexadecimal format
(e.g. "27" for 192.168.39.5)
b2 00..FF IP address
update byte2
Setting for byte2 of the IP address in
hexadecimal format
(e.g. "A8" for 192.168.39.5)
b3 00..FF IP address
update byte3
Setting for byte 3 of the IP address in
hexadecimal format
(e.g. "C0" at 192.168.39.5)
Ir - - IP reset to
factory setting
Reset IP address to factory setting
(192.168.39.5)
Su b0 00..FF Subnet mask
update byte0
Setting for byte0 of the subnet mask in
hexadecimal format
(e.g. "00" in 255.255.255.0)
b1 00..FF Subnet mask
update byte1
Setting for byte1 of the subnet mask in
hexadecimal format
(e.g. "FF" in 255.255.255.0)
b2 00..FF Subnet mask
update byte2
Setting for byte2 of the subnet mask in
hexadecimal format
(e.g. "FF" in 255.255.255.0)
b3 00..FF Subnet mask
update byte3
Setting for byte3 of the subnet mask in
hexadecimal format
(e.g. "FF" in 255.255.255.0)
Sr - - Subnet mask
reset to
factory setting
Reset subnet mask to factory setting
(255.255.255.0)

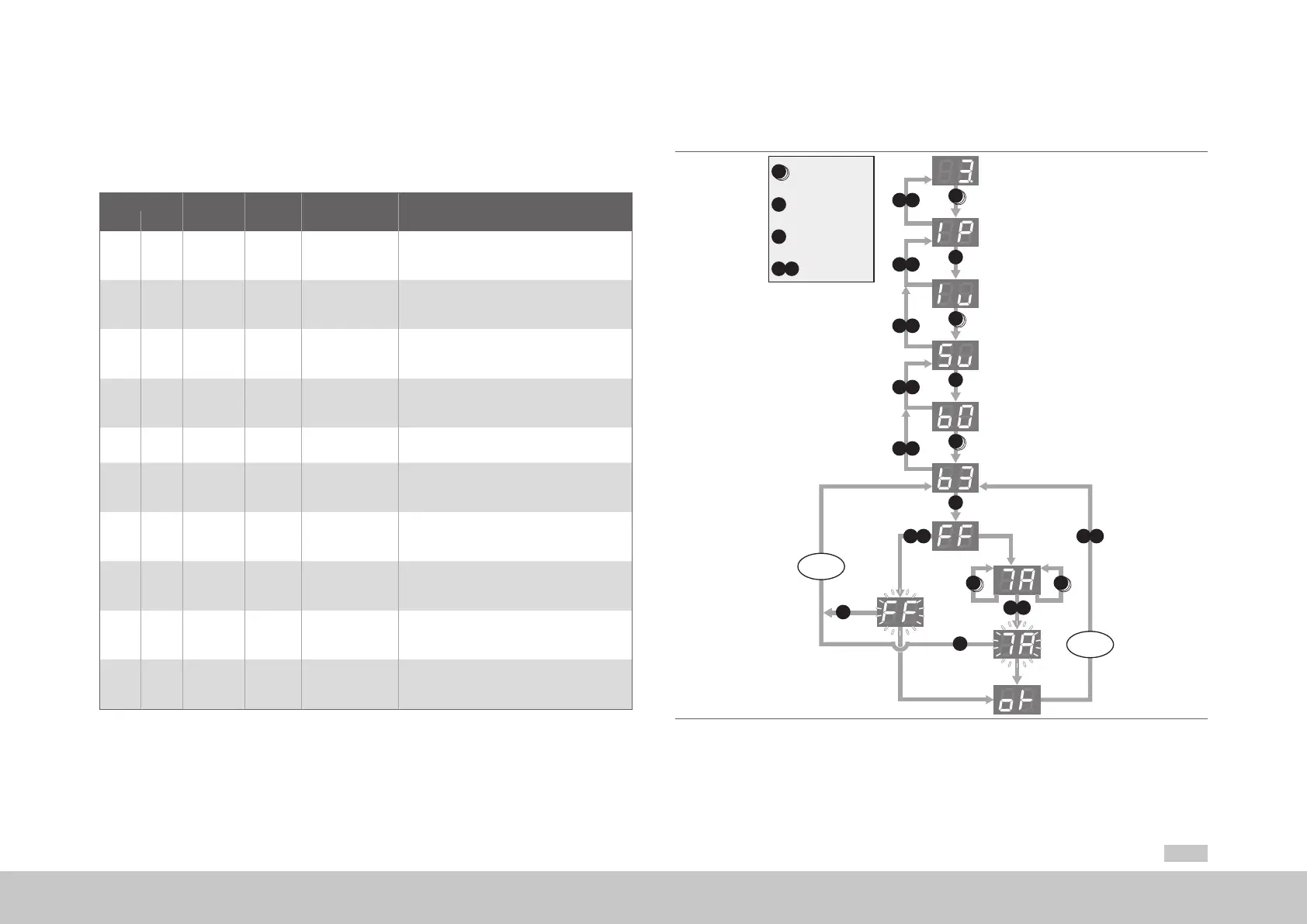

Table 5.7 IP address menu
Example conguration of the subnet mask
In this example the subnet mask is changed from 255.255.255.0 to 122.255.255.0.
T1
T2
Tx
Tx
back
back
back
several actuations
of buttonTx (X = 1, 2)
until the desired menu
appears in the display
single actuation
of button Tx (X = 1, 2)
simultaneous actuation
of both buttons T1 and T2
Actuation of
any button
accept
>5 s>5 s
<5 s
T2
<5 s
T1 T2
T1 T2
T1 T2
back
T1 T2
back
T1 T2
T1 T2
T1 T2
T1 T2
Value NOT
saved
Value
saved
T1
T2
T1
T1
back
T1 T2
T2
Figure 5.3 Example conguration of the subnet mask
