Moog MSD User Manual

48
Electrical installation
MSD Single-Axis System Operation Manual AC-AC Servo Drive
ID no.: CA65642-001 06/2018
moog
DANGER! Risk of injury due to electrical power!
• Carelessness will result in serious injuries or death.
Never make or disconnect electrical connections while they are electrically live! Always disconnect
the power before working on the device. Even 10min. after switching off the mains supply,
dangerously high voltages of ≥50V may still be present (capacitor charge). So check that
electrical power is not present!
Terminal L+ (Size 1 to Size 4) or BR+ (Size 5 to Size 7) is permanently connected to DC link
potential (>300VDC). The connection is not protected internally in the device.
WARNING!
Risk of injury due to hot surfaces on the ext. braking resistor!
• Carelessness may result in serious burns.
The braking resistor heats up very signicantly during operation and can reach temperatures of
up to +250 °C (+482 °F). On touching there is a risk of serious burns to the skin.
CAUTION!
Damage to the external braking resistor due to lack of tempera-
ture monitoring!
• Carelessness can result in overheating of the ext. braking resistor!
The external braking resistor must be monitored by the controller. The temperature of the
braking resistor is monitored by a temperature sensor (Klixon). In the event of overheating the
servo drive must be disconnected from the mains supply.

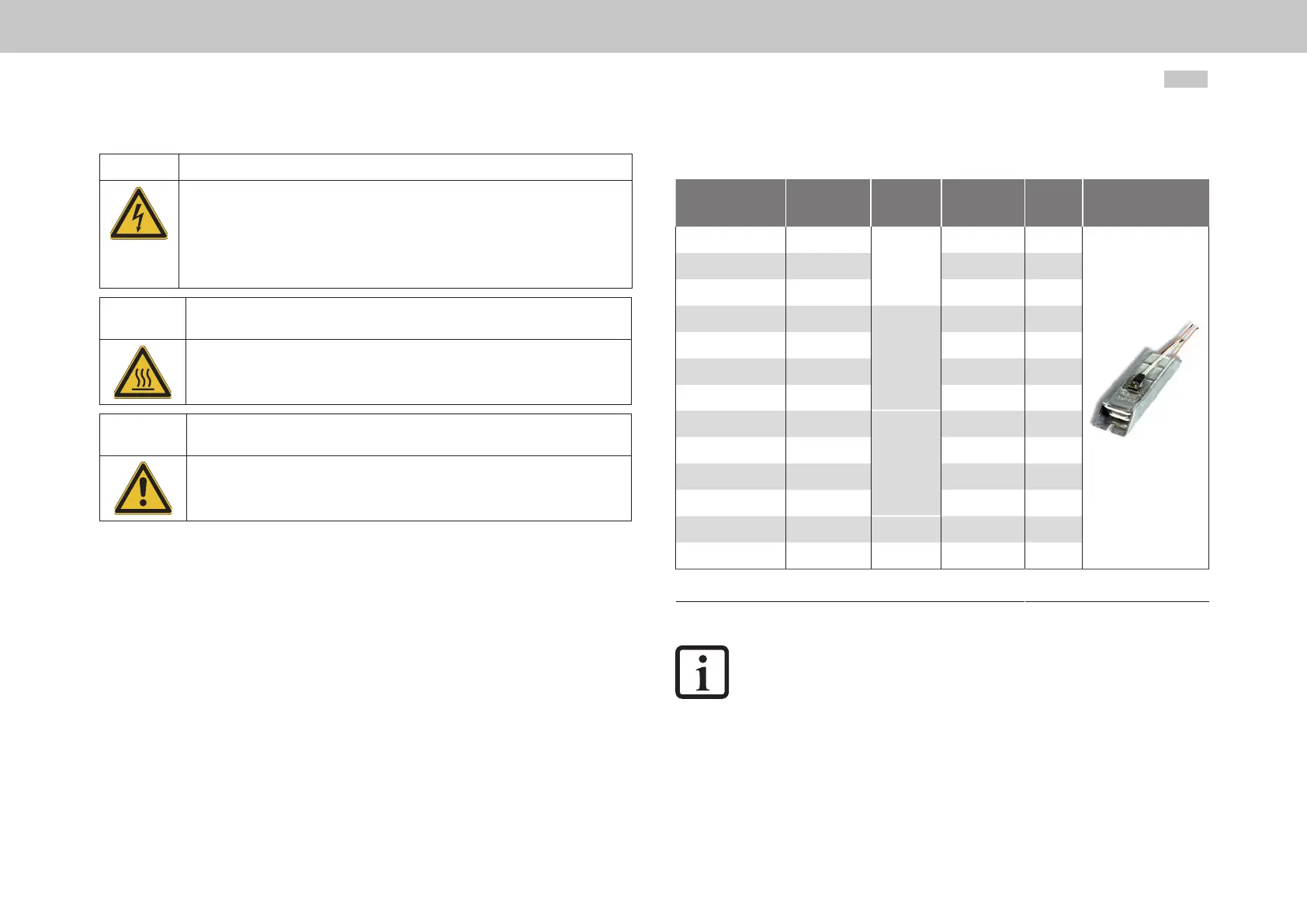

Available braking resistors (excerpt)
Order
designation
Continuous
braking power
Resistance
1)
Peak braking
power
2)
Protection Figure
CB09047-001 35W
200Ω
2800W IP54
Example:
CB09047-001
CB09048-001 150W 2800W IP54
CB09049-001 300W 2800W IP54
CA59737-001 35W
90Ω
6250W IP54
CA59738-001 150W 6250W IP54
CA59739-001 300W 6250W IP54
CA59740-001 1000W 6250W IP65
CA59741-001 35W
26Ω
21600W IP54
CA59742-001 150W 21600W IP54
CA59743-001 300W 21600W IP54
CA59744-001 1000W 21600W IP65
CB36901-001 300W 20Ω 27750W IP54
CB36902-001 300W 15Ω 37000W IP54
1) Tolerance ±10%
2) Is the maximum possible braking power depending on the ON-time and cycle time
Table 4.22 Technical data - braking resistors
NOTE:
You will nd the exact specications of the braking resistors, in particular the
surface temperature, the maximum supply voltage and the dielectric strength
at high voltages in the MSDServoDrive Ordering Catalog.
Please consult your project engineer for more detailed information on the design of
braking resistors.
