7.4.4 Software Conguration For Analog Torque Mode

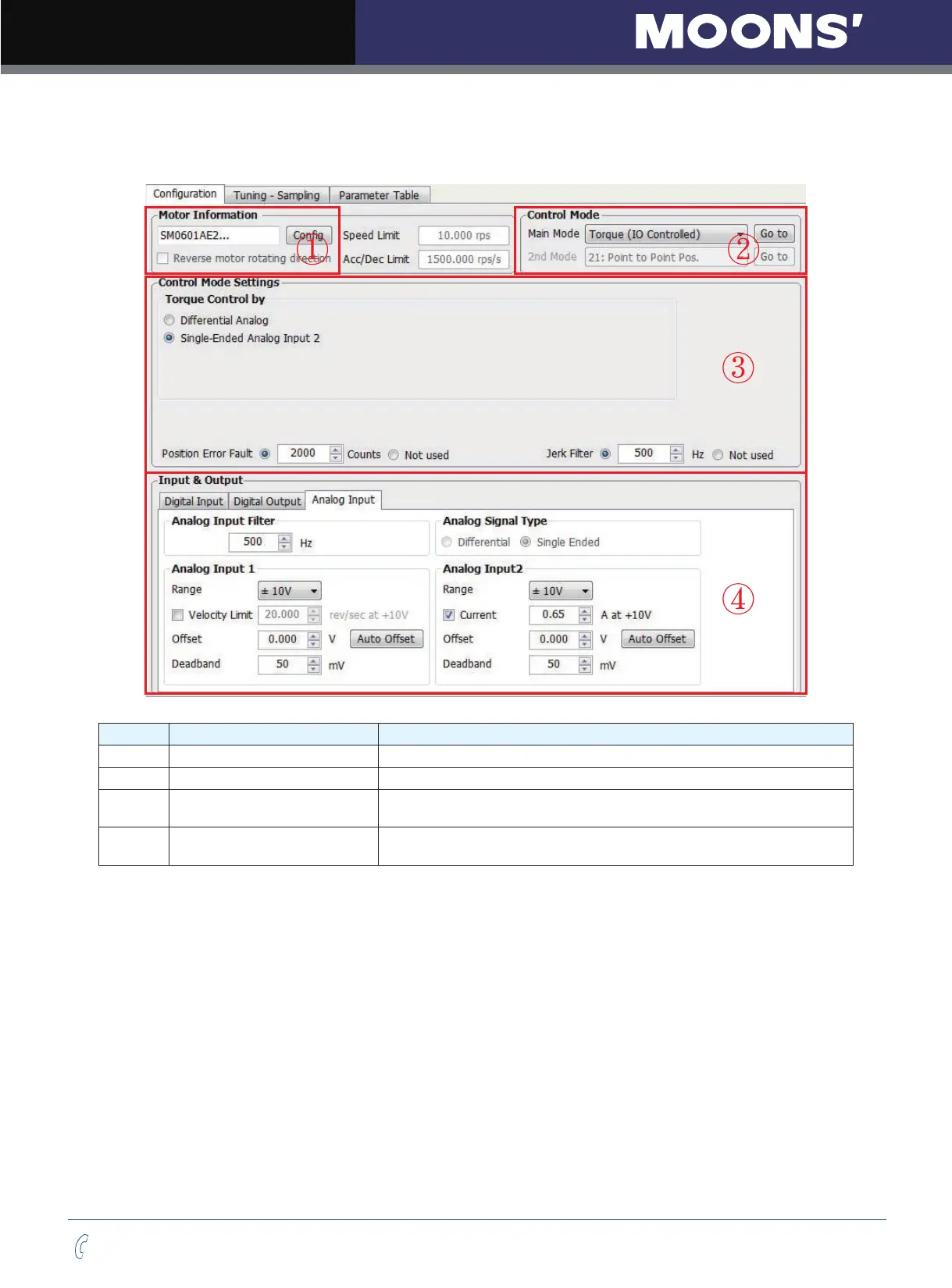

The M servo suite can help you easily congured the drive and motor, as well as tuning parameters.
Step Operation
Description
1st Congure motor
Choose your motor number. Please refer to 2.3 Motor number for details.
2nd Choose control mode
In control mode, choose “torque” for torque mode.
3rd Control mode conguration
Choose specied torque analog type, please refer to 7.4 Analog torque
mode.
4th
Set analog signal function, or
digital input/output functions
In Input/Output functions to setup. Please refer to 4.8.3 CN2 connections,
and 7.4 torque mode and 7.1 general function settings.
