4.8.4 CN2 Output Signal Specication
M2 series AC servo drive features 6 optically isolated digital outputs. They can be congured via M Servo
Suite. Y1
、
Y2
、
Y5
、
Y6 are di󰀨erential output signals, they can be used for both sourcing or sinking signals.
Y3
、
Y4 common ground outputs
，
they can be used for sinking signals.

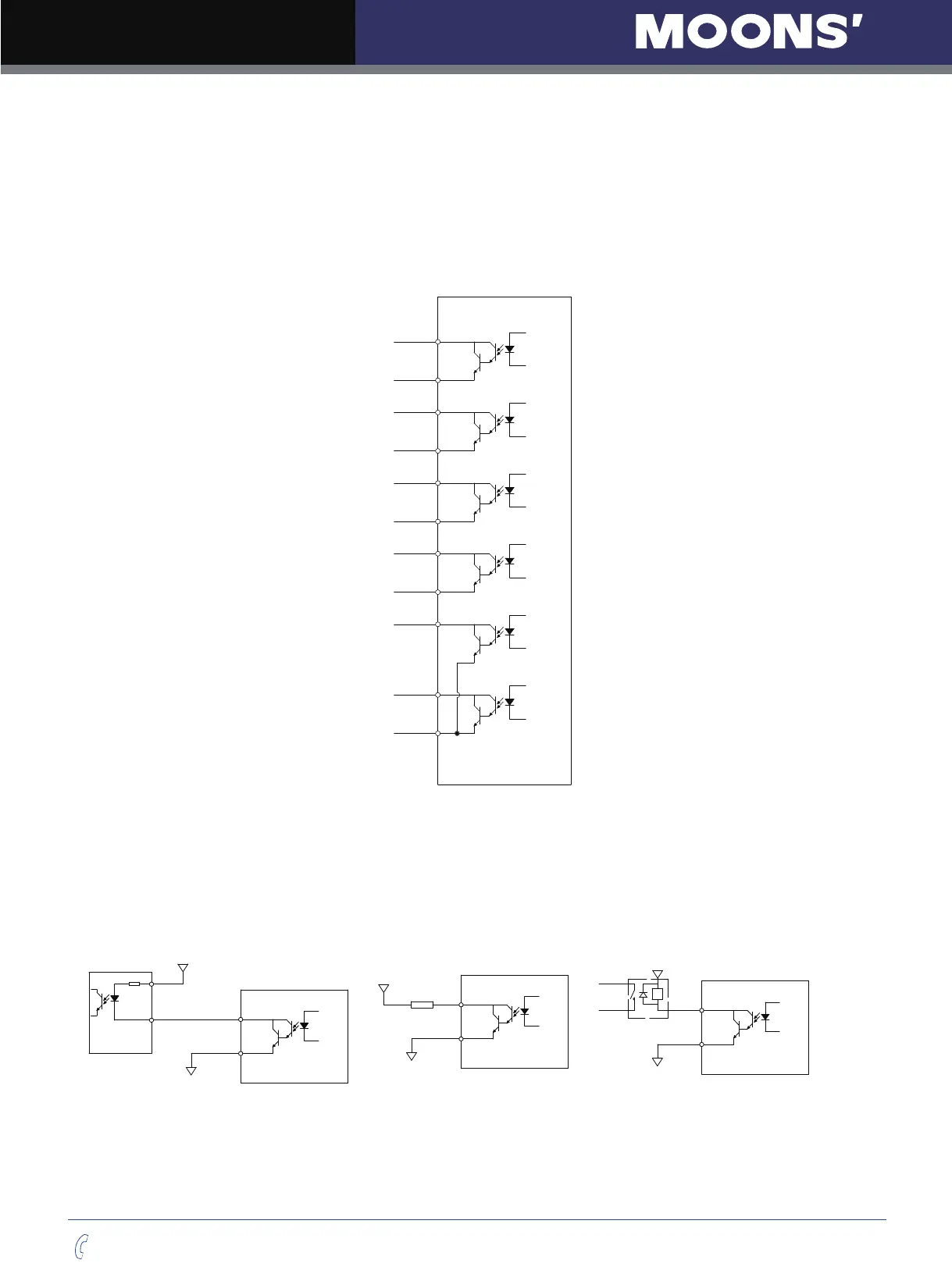

4.8.4.1 CN2 Output Signal Diagram
37
Y1+
36
Y1-
11
Y2+
10
Y2-
40
Y5+
41
Y5-
14
Y6+
13
Y6-
42
Y3
43
Y4
OUT-
4.8.4.2 Y1、Y2、Y5、Y6 Output Connection Diagram
NOTE: Y1
、Y3、Y4、Y5、Y6 maximum outputs are 30VDC 30mA. Y2 maximum output is 30VDC,
100mA.
Opt Coupler Circuity
Y1/2/5/6+
Controller
0VDC
Y1/2/5/6-
24VDC
COM
IN
Connect To External Load
Y1/2/5/6+
0VDC
Y1/2/5/6-
24VDC
Connect To Relay Circuity
Y1/2/5/6+
0VDC
Y1/2/5/6-
24VDC
Relay
