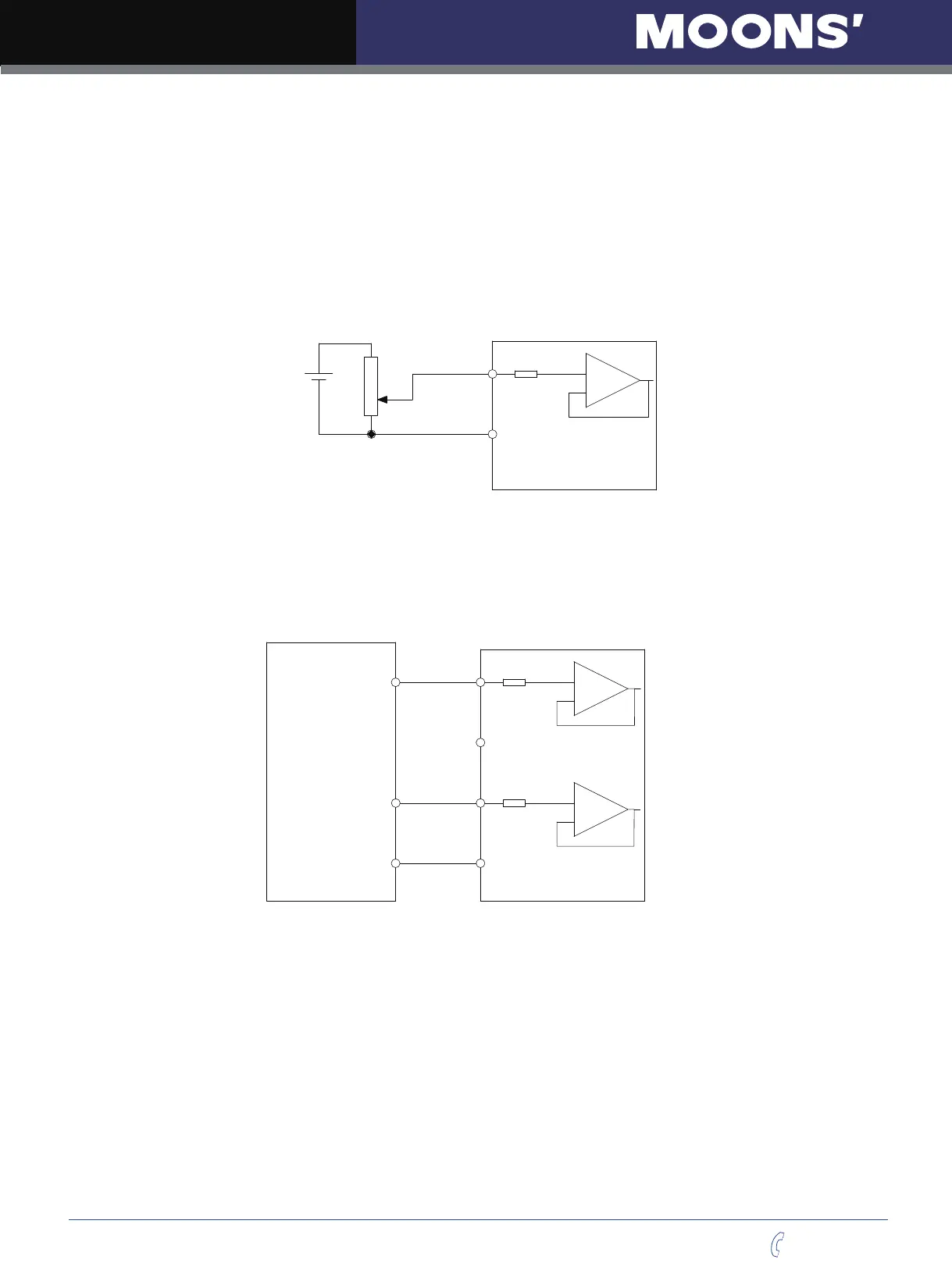

4.8.3.2 Analog Signal Input For Velocity And Torque Mode
M2 series AC servo drive has 2 single ended analog inputs and 1 differential analog input. The input
voltage range is between -10V~+10V. Velocity and torque range can be configured via M servo suite
software.
A.Single Ended Analog Input
Single Ended Analog Control Mode
16(18)
ANA1(ANA2)
15(17)
DGND
+
-
±10VDC
B. Differential Analog Input
Differential Analog Control Mode
16
15
+
-
18
17
+
-
Host PC
D/A Output
DGND
DGND
