7.5.2 Rotary motion
Rotary motion is highly suitable for dividing plate applications, system gearing reduction ratio can also
be set based on the application. Settings such as number of division per revolution, motion proles and
homing proles can also be set.
After the conguration. Input X4 is the motion trigger, the load will rotate according to set direction. Each
trigger signal will turn the load by one single rotary point based on the settings.
7.5.2.1 Rotary motion software conguration
Edit: Click on
‘
Edit
”

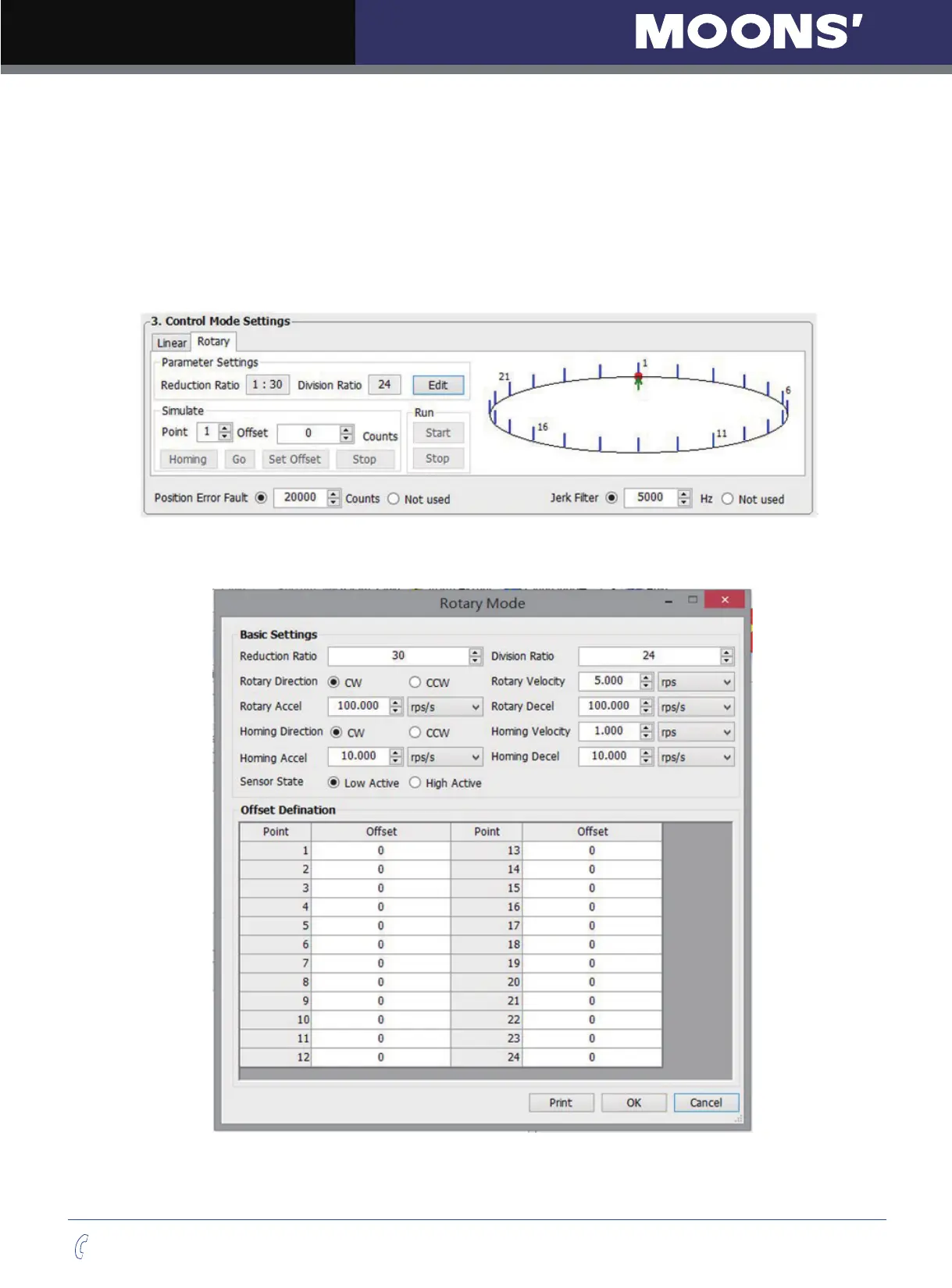

to enter detailed conguration page, as shown in Figure 7.5.9Detail conguration for
rotary motion below
Figure 7.5.9Detail conguration for rotary motion
