7.3.4 Analog Input Filter
When analog input is used, there might be external interferences that a󰀨ect the accuracy of the analog
input voltage. In some cases will cause the motor to turn unexpectedly, or unstable torque output.
Therefore, analog input lter is recommended. It is designed as a digital low pass lter; reasonable lter
frequency can signicantly improve the motor performance.
To setup the analog input lter directly from the drive, please refer to the following calculation
Display analog input value
Where X is input lter frequency, unit Hz
Setting Via Software

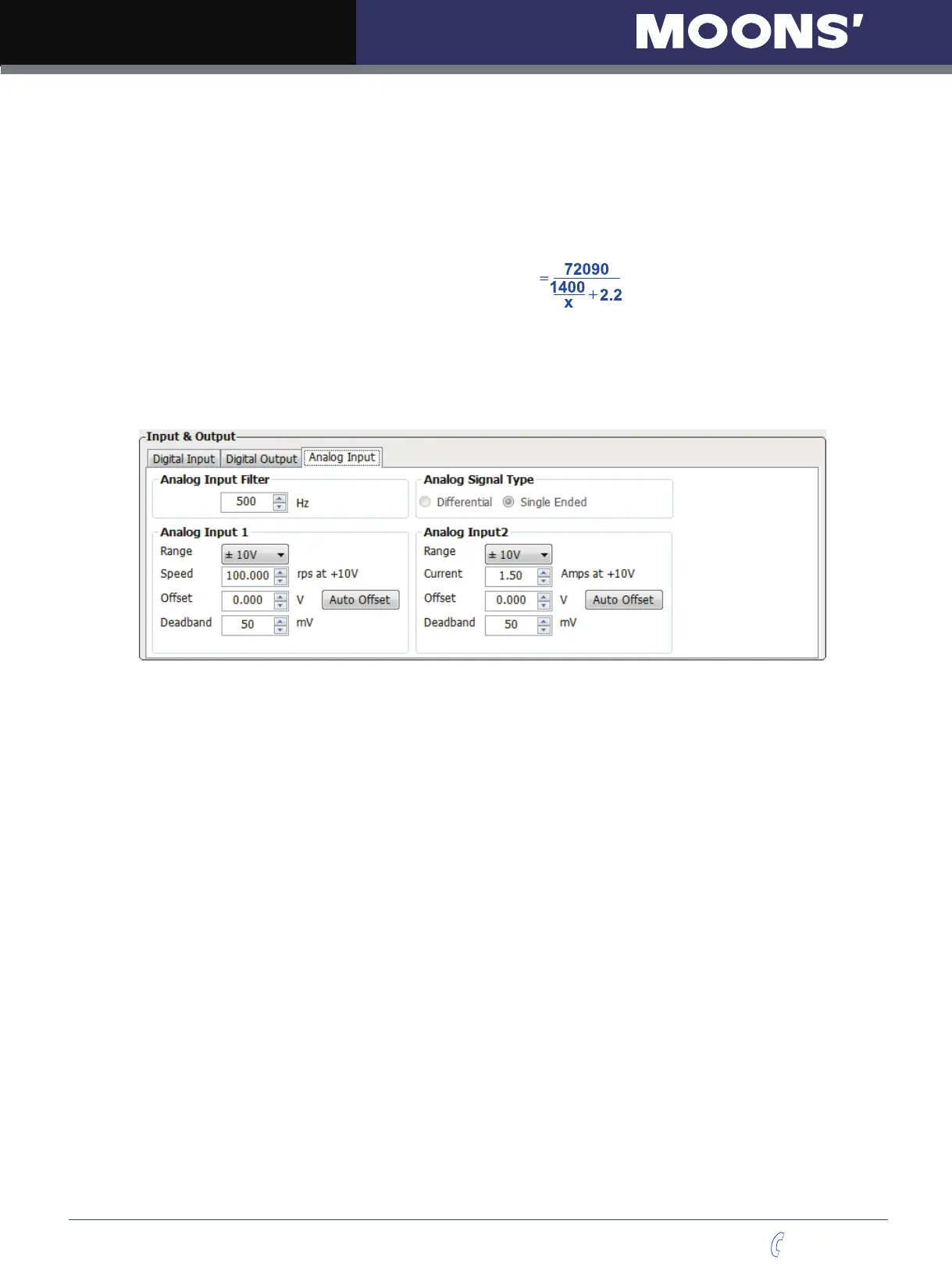

In drive conguration page-------input/output analog input 1/2 settings to setup
