7.5 Position Table Mode Instruction
Position table mode allows Point-to-Point linear motion and Rotary motion without any external pulse
input. Instead, position table mode uses Input port X7~X12 to conguredi󰀨erent positions command. Input
X4 is the trigger for motion.

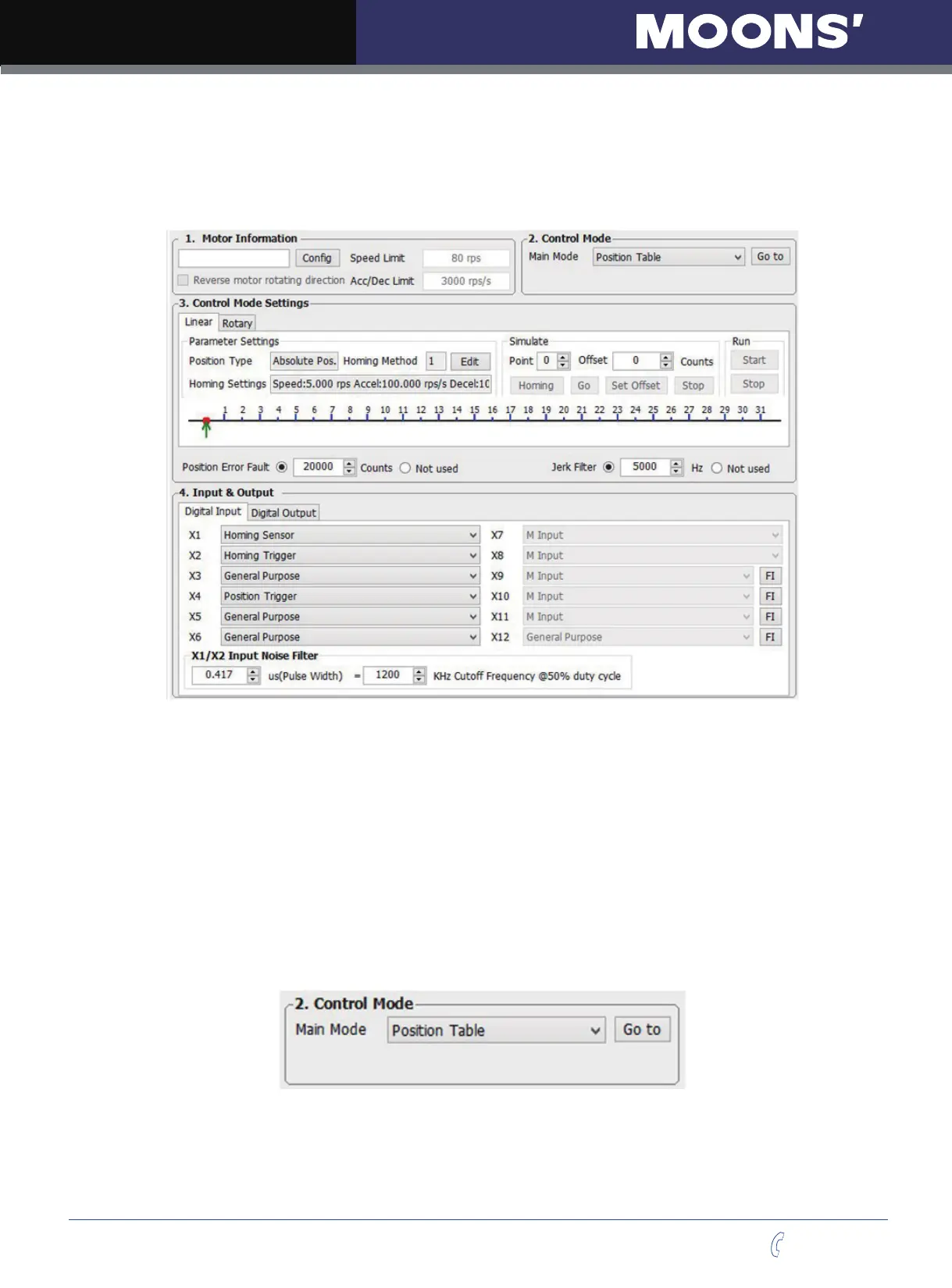

Figure 7.5.1 Position table mode
NOTE: Only -S type M2 series servo drive supports position table mode
7.5.1 Linear motion
Linear motion for position table mode can set up to 63 positions (not include homing position). Detailed
software setting as follows:
7.5.1.1 Linear Motion Software Conguration
1) Open M Servo Suite, connect the driver with software(refer to software manual for details)
2) Select
“
position table
”
control mode from
”
step1: conguration
”
------
“
2. Control mode
”
As shown in Figure 7.5.2 Select Position Table
Figure 7.5.2 Select Position Table
