7.2.9 Software Conguration For Position Mode

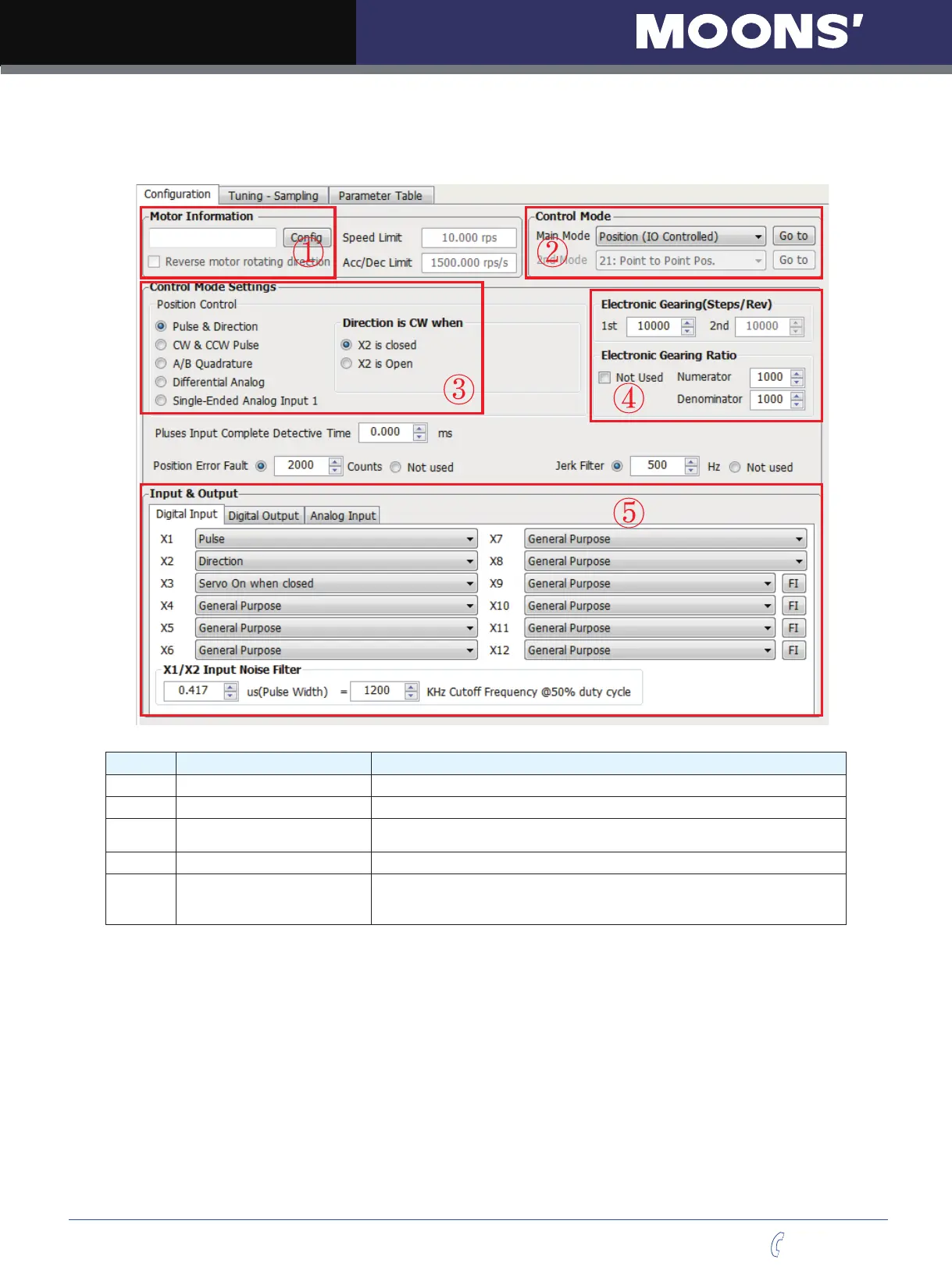

The M servo suite can help you easily congured the drive and motor, as well as tuning parameters.
Step Operation Description
1st Congure motor
Choose your motor number. Please refer to 2.3 motor number for details.
2nd Choose control mode
In control mode, choose “Position” for position mode.
3rd Control mode conguration
Choose specied input pulse type, Please refer to 4.8.3 CN2 input signal
connections and and 7.2 position mode.
4th Set electronic gearing ratio
Please refer to 7.2.5 for electronic gearing ratio settings.
5th Set analog signal
Function, or digital input/output functions. In Input/Output functions to
setup. Please refer to 4.8.3 CN2 connections, and 7.2 position mode and
7.1 general function settings.
