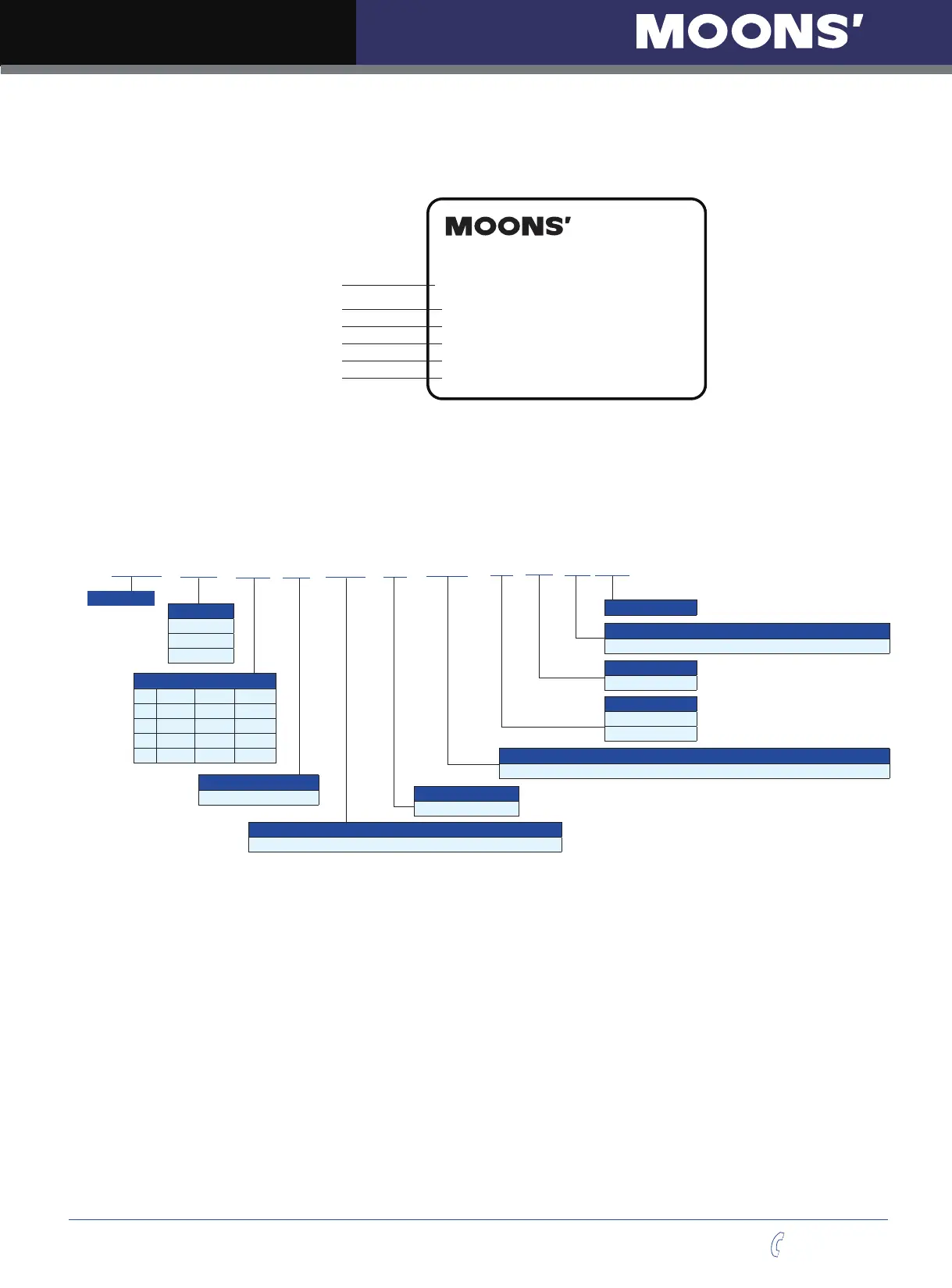

2.3 Servo Motor Model Introduction
2.3.1 Motor Name Plate Description
AC SERVO MOTOR
Model NO.SM0602AE2-KCD-NNV15
Ser NO. 12110027
Rated Torque 1.27N
·m
Input 3ØAC 220V 2.8A
Output 400W
Rated Rev. 3000r/min
Model NO.
Rated Torque
Series NO.
Input Current
Output Power
Rated Speed
2.3.2 Motor Model Description
Servo Motor
Frame Size
04-40mm
06-60mm
08-80mm
Winding
A: 320 VDC(240 VAC)
Shaft
K: Standard Keyway
E4: 2500 ppr Optical Encoder and Shared Commutation Tracks
Brake Option
N: No Brake
B: 24VDC Brake
Thermal Protector
N: No Protector
Shaft Seal
V: Shaft seal shipped with motor, but not placed on shaft
Connections
CD: 300mm (12") Shielded Cables with AMP 4 Pin, 6-7 Amp Motor Connector.
SM 04 01 A E4-K CD-N N V
**
Motor Length
□
40
□
60
□
80
01 50W 200W
02 100W 400W
03 750W
04 1000W
Ecoder
Code
