7.1.5 Control Mode Switch
M2 series AC servo drive allows to choose 2 types of control mode by using external input switch X8. The
control mode can be configured via two parameters P-12 (CM) and P-13 (CN).
In factory default mode, control mode switch function is disabled. It can be configured via M servo suite or
P-65 (MI) third digit (from right to left) in parameter setting mode in the drive.
Signal Name PIN P-65 (MI) Condition Function
X8
X8+ (12)
X8- (32)
□
1
□□
Closed Use Control mode 1-------P-12 (CM)
Open Use Control mode 2-------P-13 (CN)
□
2
□□
Closed Use Control mode 2-------P-13 (CN)
Open Use Control mode 1-------P-12 (CM)
□
3
□□
(Default) Always use control mode 1---P-12(CM)

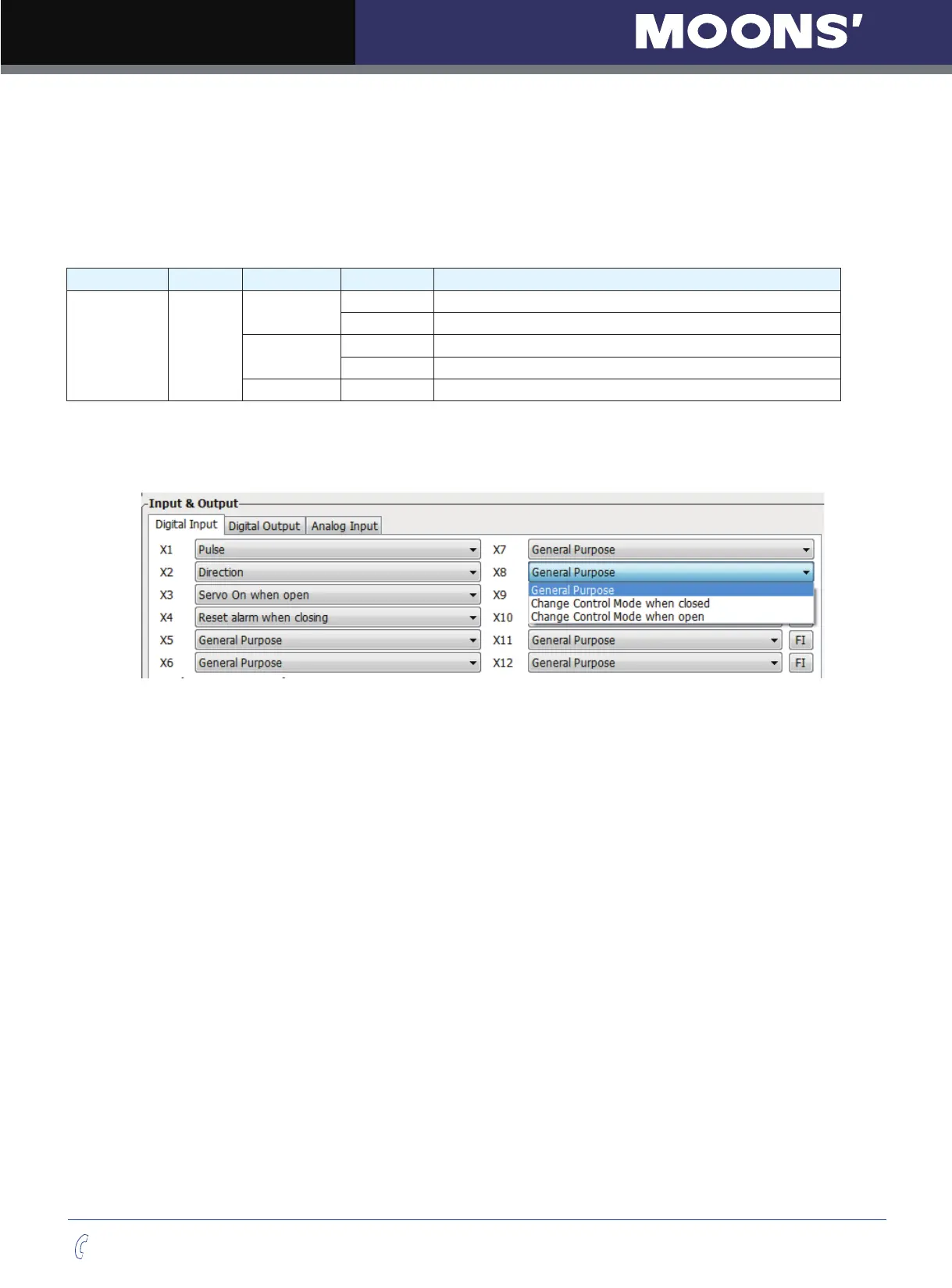

Software Configuration
In drive configuration page-------input/output select X8 function to setup.
