M Series AC Servo
User Manual
64
Rev. 1.0
7/31/2019
400-820-9661

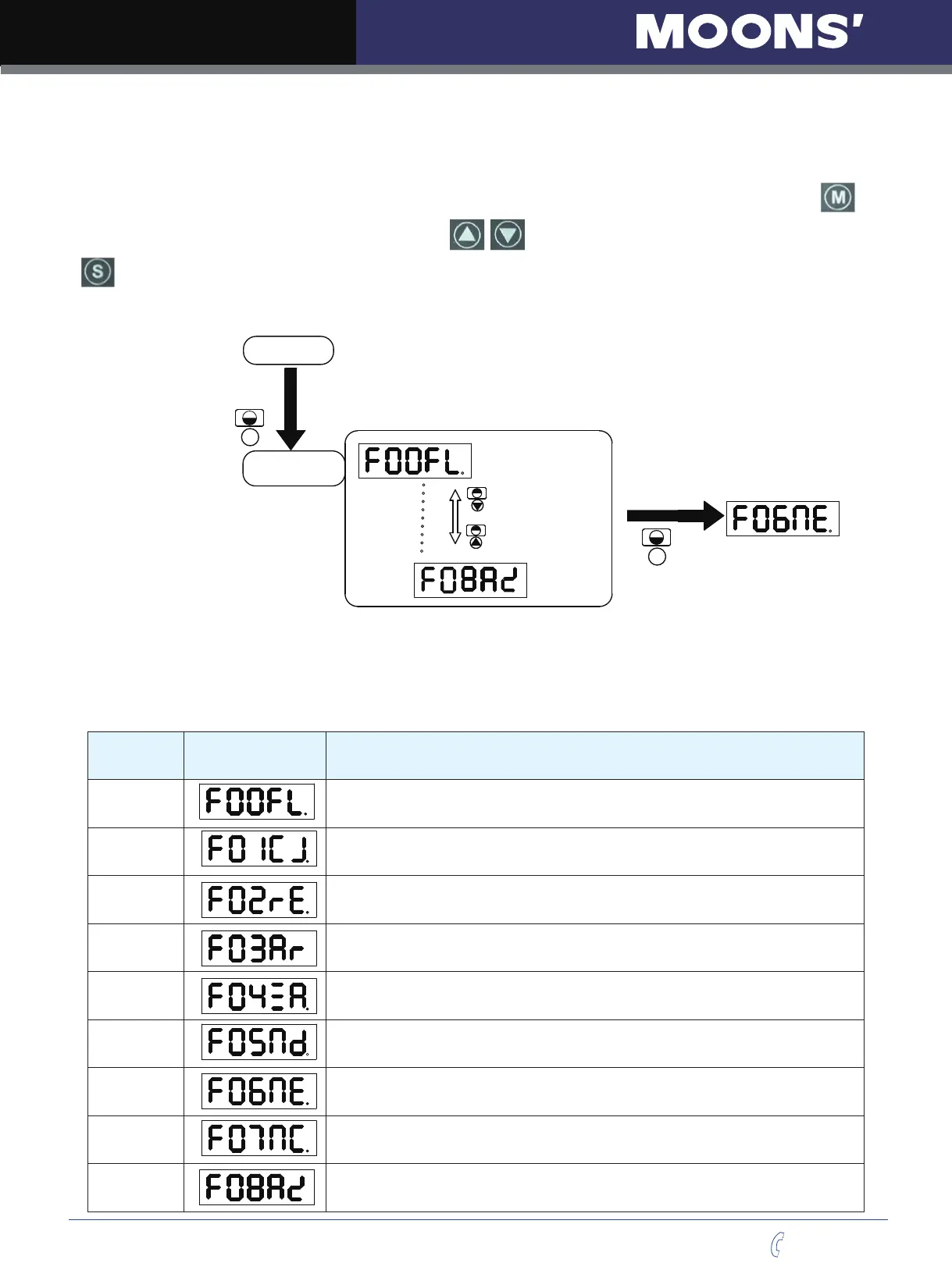

5.5 Function Mode Control
In function mode (display F+ parameter number), you can select functions for preoperational mode,
restart the drive, enable or disable the drive and so on. In status monitoring mode, press and hold
for
1 second will enter function control mode. Press
to select function, and then press and hold
to confirm or execute the function. (NOTE: F-00(FL) and F-01(CJ) excepted)
Function Mode
Selection
Press UP and
DOWN key
to select display detail.
S
Press and Hold Set key to
select and execute the function
Status display
selection
M
Press and Hold MODE key
for 1 second
5.5.1 Function Mode Description
Function mode details are as follows:
Function mode
number
LED display Description
F-00
point to point position mode: 1) rotating speed: 1rps 2)travel distance: 1rev
F-01
JOG mode: JOG speed 1rps
F-02
Restart the drive
F-03
(F-03AR) Clear drive
’
s current alarm
F-04
(F-04SA) Save parameter changes for P-00 to P-98
F-05
(F-05MD) Drive disable
F-06
(F-06ME) Drive enable
F-07
(F-07MC) Select motor specification
F-08
(F-08AZ)Analog auto tunning
