M Series AC Servo
User Manual
26
Rev. 1.0
7/31/2019
400-820-9661
3.5 Motor Installation

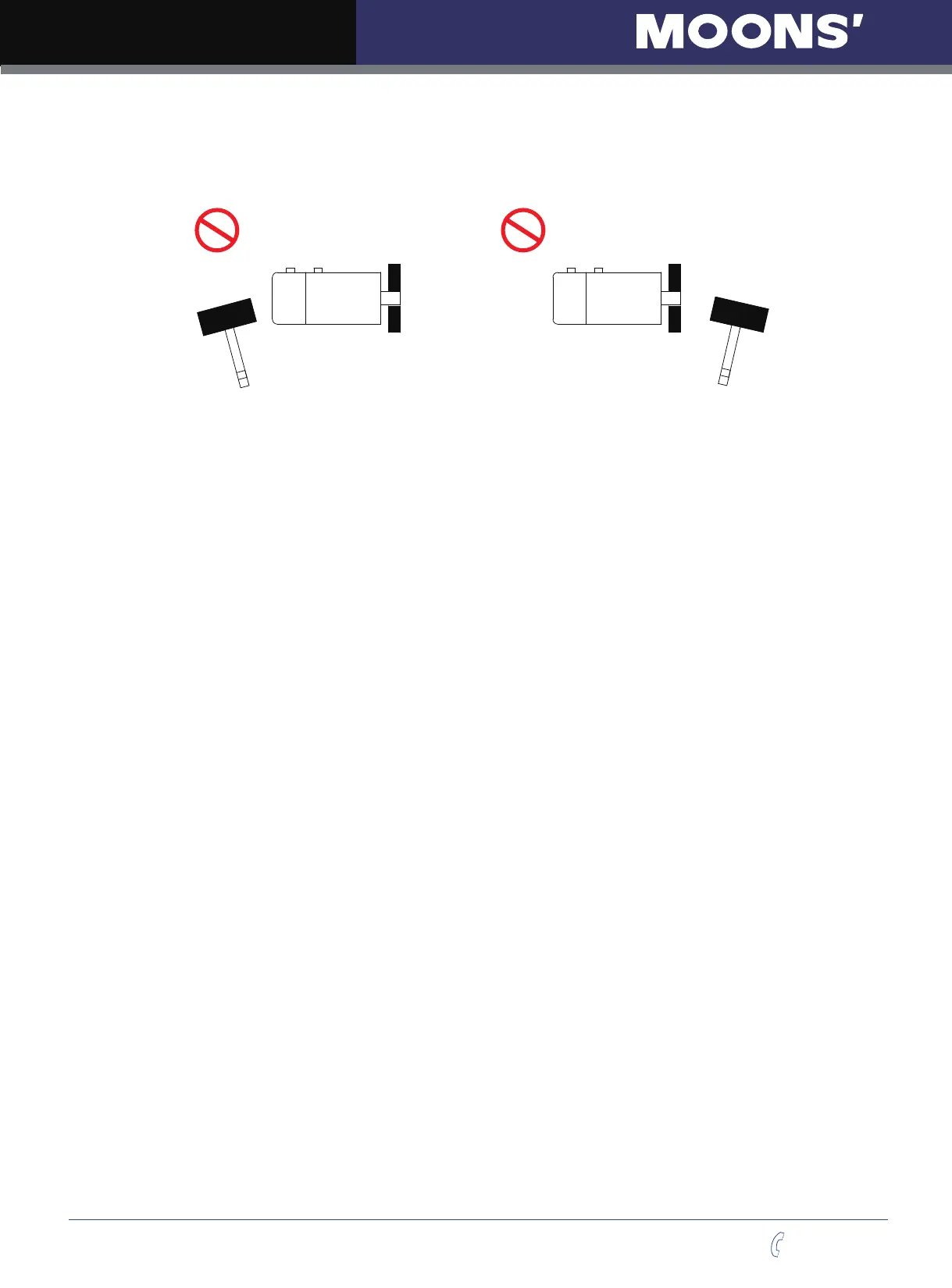

• DO NOT strike the motor when mounting as the motor shaft or encoder may be damaged.
• DO NOT use cables soaked in water or oil.
• Avoid a stress application to the cable outlet and connecting portion by bending.
• Please use flexible cables when using cable carrier, make sure the minimum cable bending diameter
is 200mm.
• The shaft through hole and cable end connector is not IP65 design. Make sure to prevent any liquid or
oil into the motor from these parts.
To Next Page
