M Series
AC Servo
User Manual
35
Rev
. 1.0
7/31/2019
400-820-9661

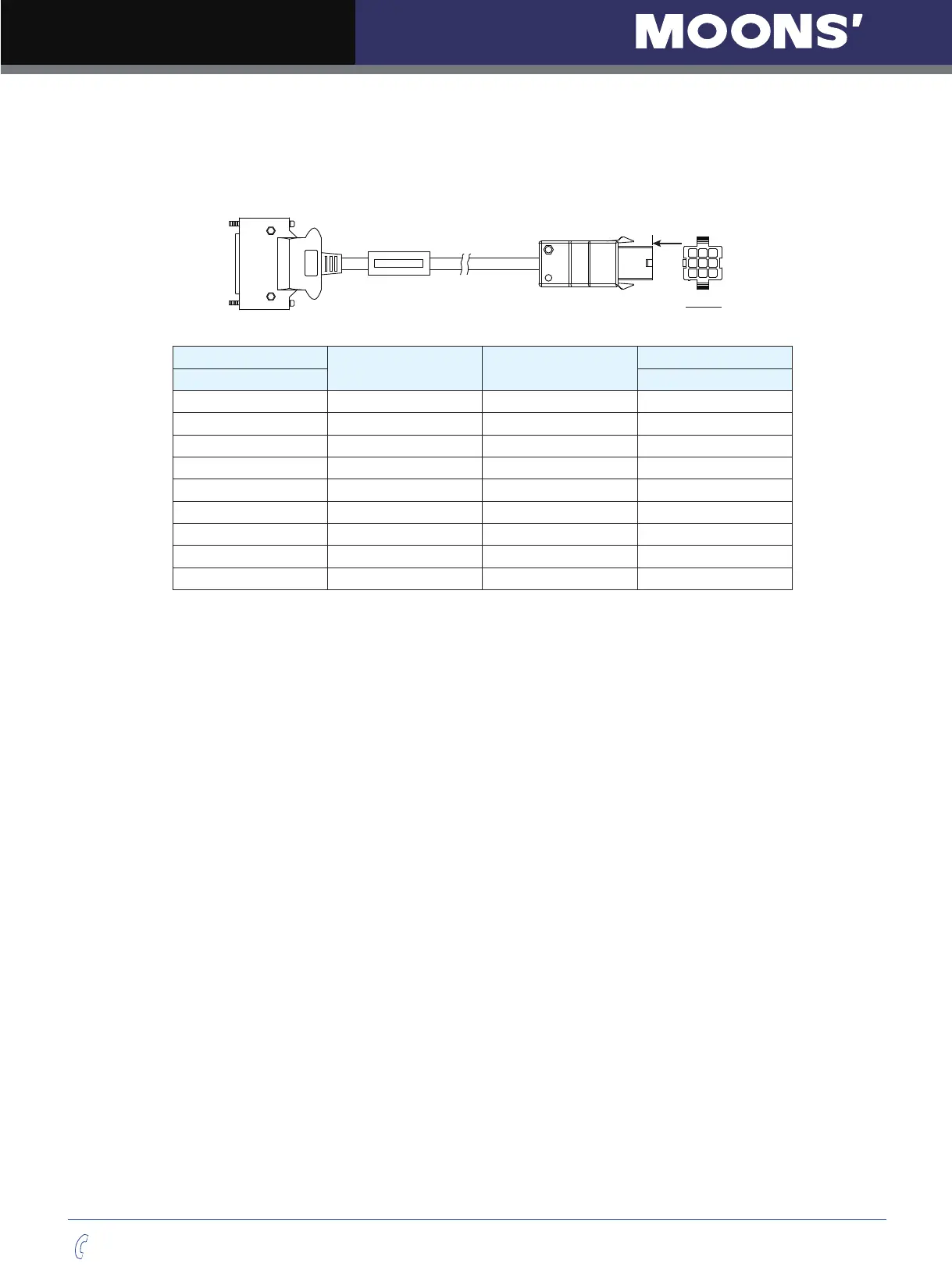

4.3.5 Wiring Diagram of Motor Encoder Extend Cable
A. Diagram of 9PIN Encoder Cable
Connect to drive
Connect to Motor
1
3
7
9
A
View A
Drive Side
Signal
Colour
Housing for the motor
3M 26PIN
AMP 172161-1
1
A+/U+
Blue
1
2
B+/V+
Green
2
3
Z+/W+
Y
ellow
3
14
A-/U-
Y
ellow/Black
4
15
B-/V-
Green/Black
5
16
Z-/W
-
Y
ellow/Black
6
11
+5V
Red
7
24
GND
Black
8
26
Shield
Shield
9
34
36
