Moons' M2DV-1D82D User Manual

M Series AC Servo
User Manual
71
Rev. 1.0
7/31/2019
400-820-9661
6.3 Motor Configuration Manually
Before JOG mode operation, M2 series AC servo drive requires motor configuration setup. For more
details about how to configure your motor specification, please refer to chapter 2.3.
6.3.1 Use Drive Control Panel To Setup

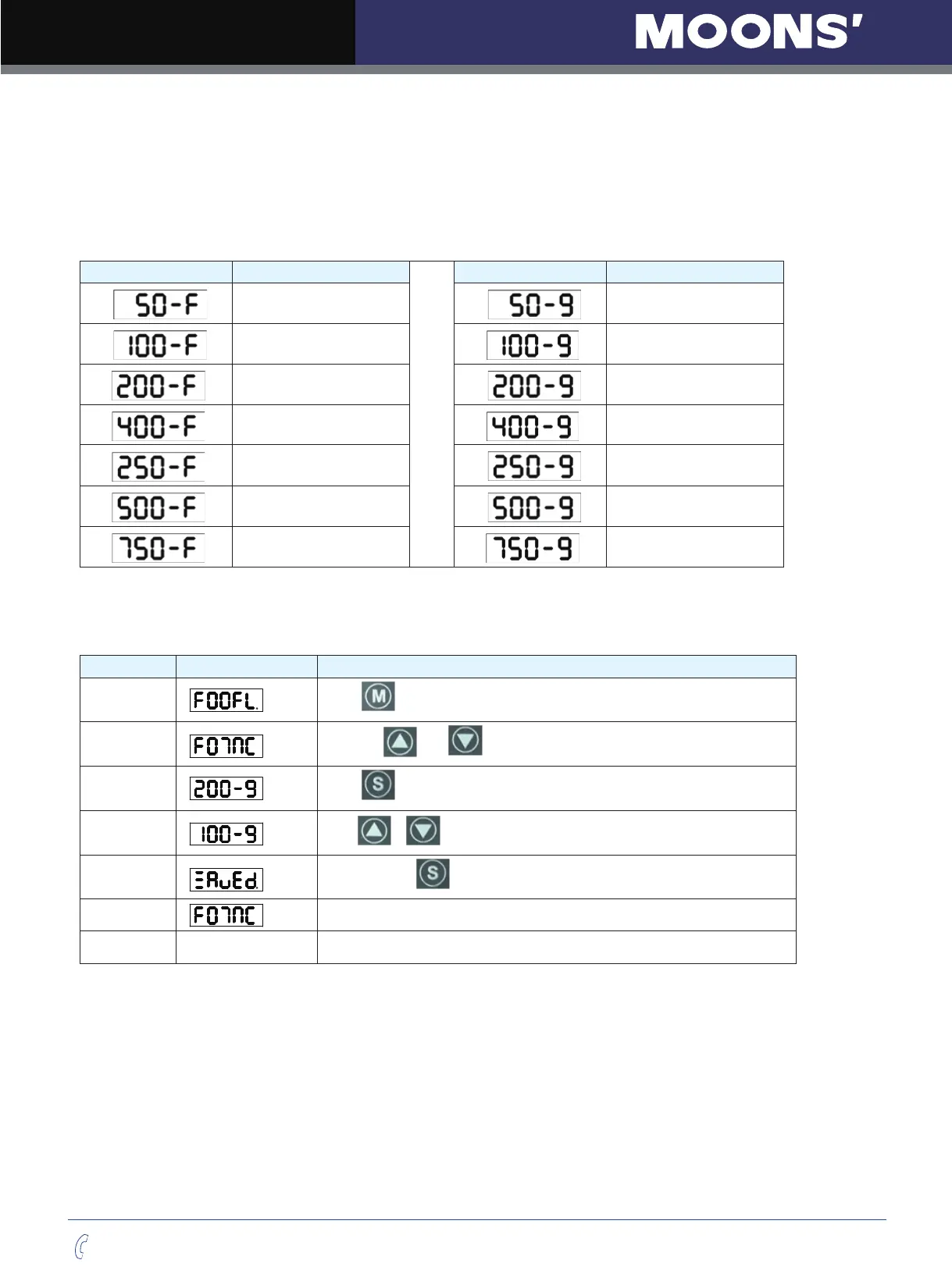

Motor information and LED display list:
LED display Motor Model Number LED display Motor Model Number
SM0401AE2-KCD-NNV SM0401AE4-KCD-NNV
SM0402AE2-KCD-NNV
SM0402AE4-KCD-NNV
SM0601AE2-KCD-NNV
SM0601AE4-KCD-NNV
SM0602AE2-KCD-NNV SM0602AE4-KCD-NNV
SM0801AE2-KCD-NNV
SM0801AE4-KCD-NNV
SM0802AE2-KCD-NNV
SM0802AE4-KCD-NNV
SM0803AE2-KCD-NNV SM0803AE4-KCD-NNV
For more MOONS
’
motor information, please refer to appendix 1.For example: To setup a drive for model:
SM0402AE4-KCD-NNV09 motor. These are the following steps:
Step LED display Description
1
Press into the Function Parameters mode at the Monitor Status mode
2
Press the and key to select F07 (MC)
3
Press key into value setting mode.
4
Press 、 key to change value.
5
Press and hold key for 1 second to confirm motor configuration.
6
Parameter is effective only after the servo drive is restarted.
