3) Select linear motion from
“
3. Control mode setting
”
as show in Figure 7.5.3Linear motion setting.

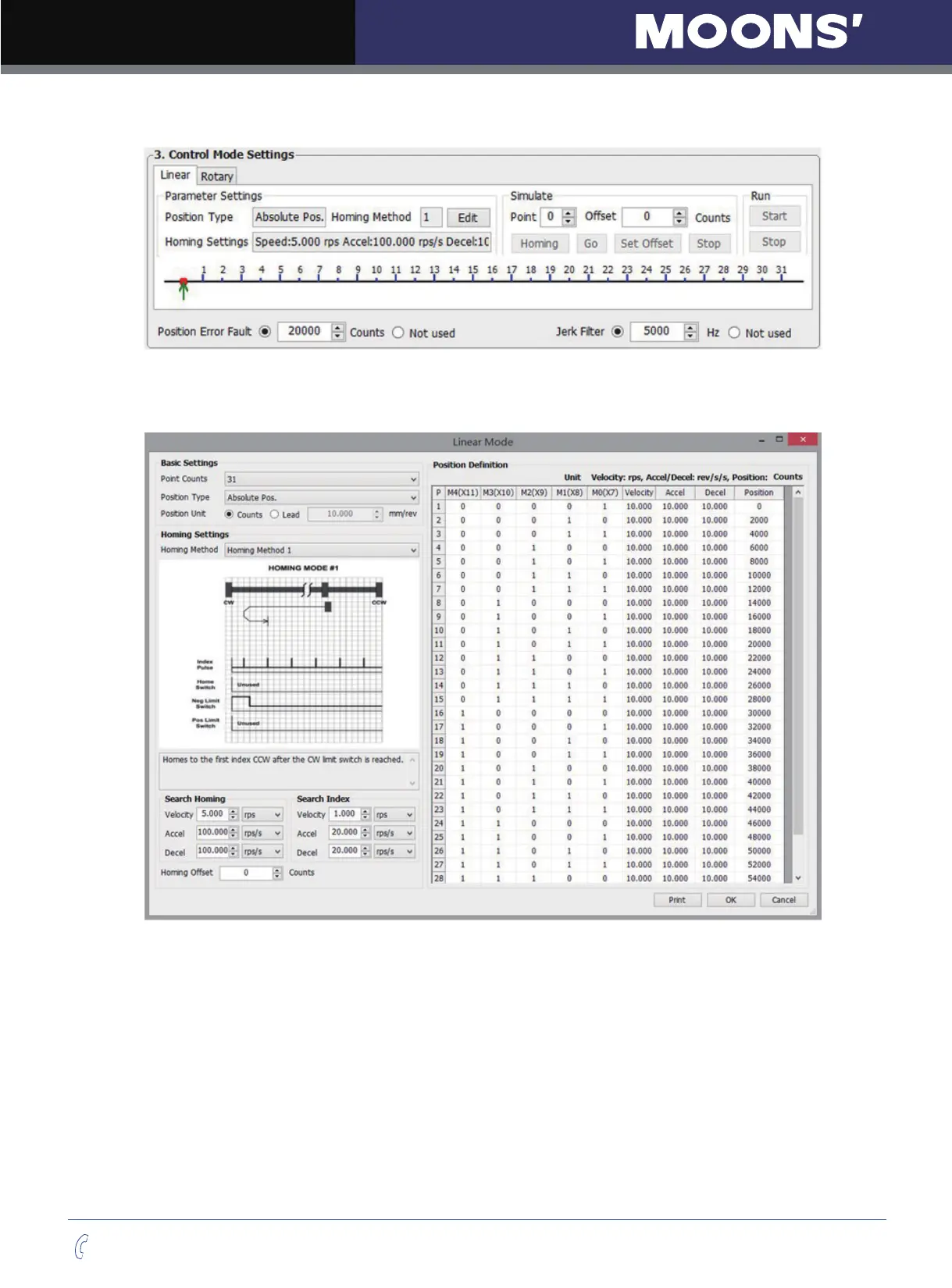

Figure 7.5.3Linear motion setting
4) Click edit for detailed motion congurations, as shown inFigure 7.5.4Linear motion conguration.
Figure 7.5.4Linear motion conguration
