Medical Isolation Transformer

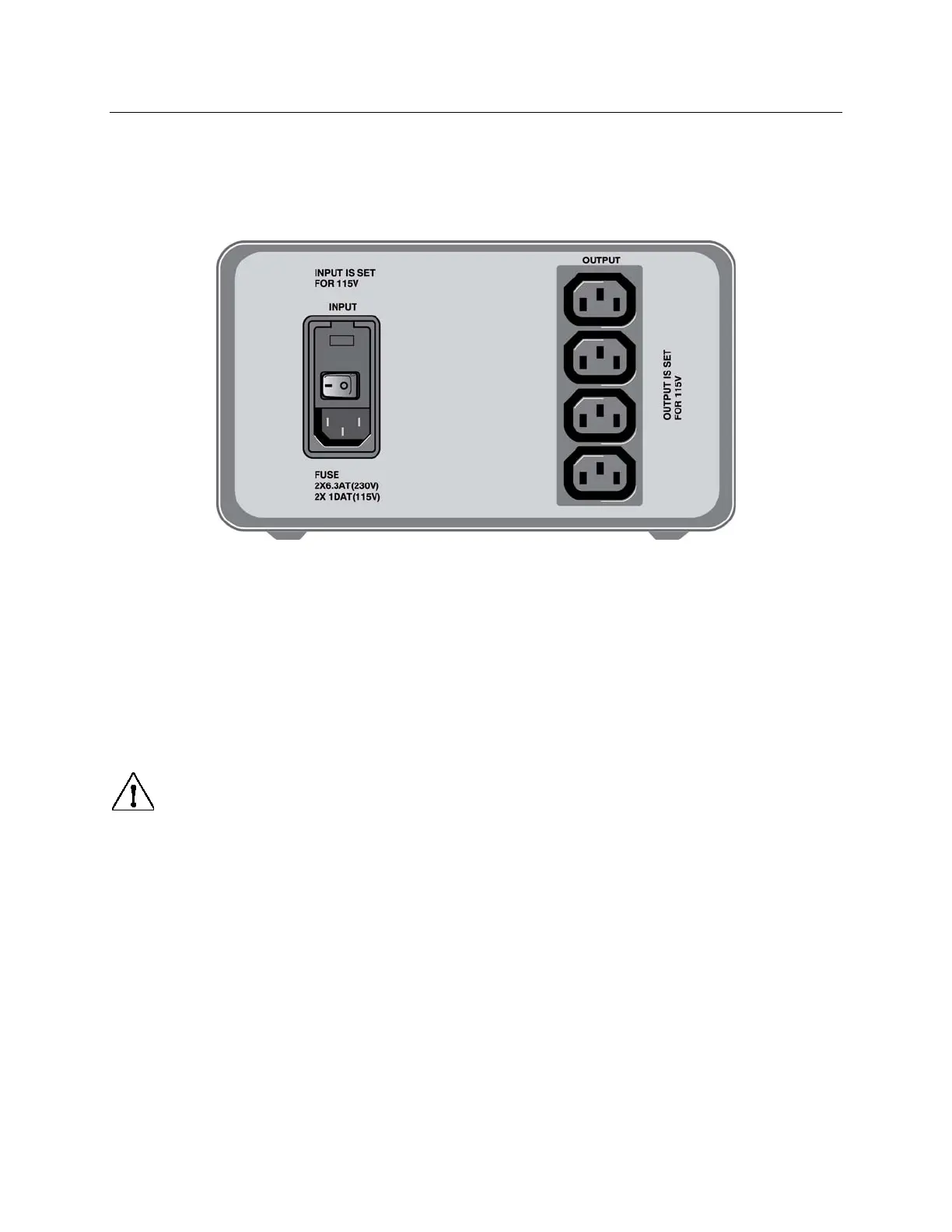

Figure 2-2
Product Specifications
Frequency: 50/60 Hz
Output Ratings: 115/230V 1000VA
Weight: 22 lbs. (9.98 kg)
Dimensions: Height = 5.1” (130 mm)
Width = 8.0” (203 mm)
Depth = 11.0” (280 mm)
REF: 1404-002 Input 115VAC 50/60 Hz 2x10AT Fused
REF: 1404-003 Input 230VAC 50/60 Hz 2x6.3AT Fused
CAUTION: Before connecting system components to the isolation transformer, ensure the voltage
selector (located above the power cord) matches the line voltage.
CAUTION: Risk of electrical shock. Do not remove cover. Refer servicing to qualified service
personnel. Grounding reliability can only be achieved when system components are connected to an
equivalent receptacle marked “hospital grade.”
CAUTION: Use of this transformer with equipment other than originally supplied, or surpassing the
ratings, may cause damage, fire, or injury.
WARNING: Possible explosion hazard. Do not use in the presence of flammable anesthetics.
