Mortara X-Scribe - M12 C and M12 RF Analog and TTL Interface Ports

APPENDIX C
66

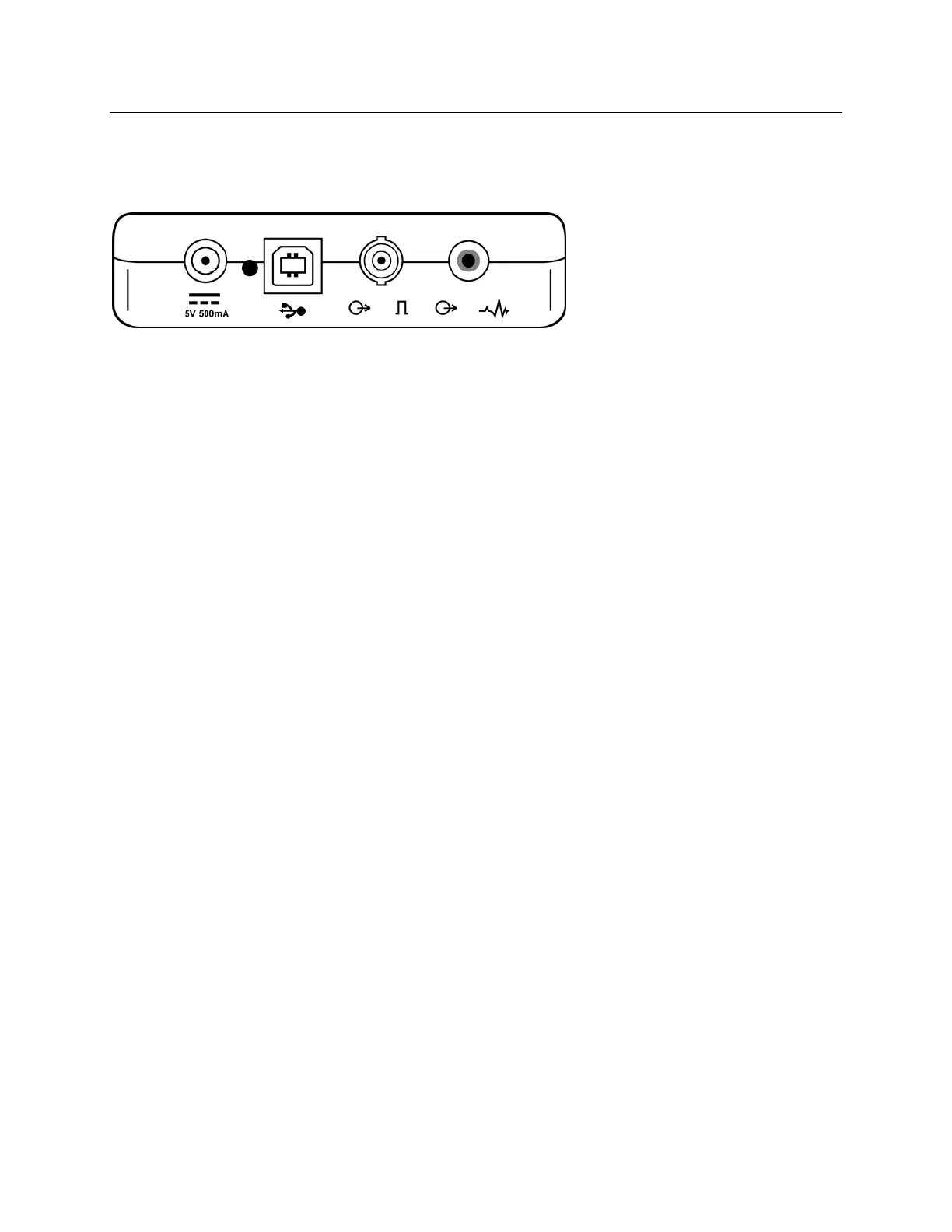

M12C and M12RF Analog and TTL Interface Ports
The TTL option requires a BNC male connector on one end with the other end having the connector required by the
Echo or device you are interfacing to.
The analog option requires a RCA male connector on one end with the other end having the connector required by
the Echo device you are interfacing to.
