APPENDIX F
79
Loading the Thermal Printer Paper

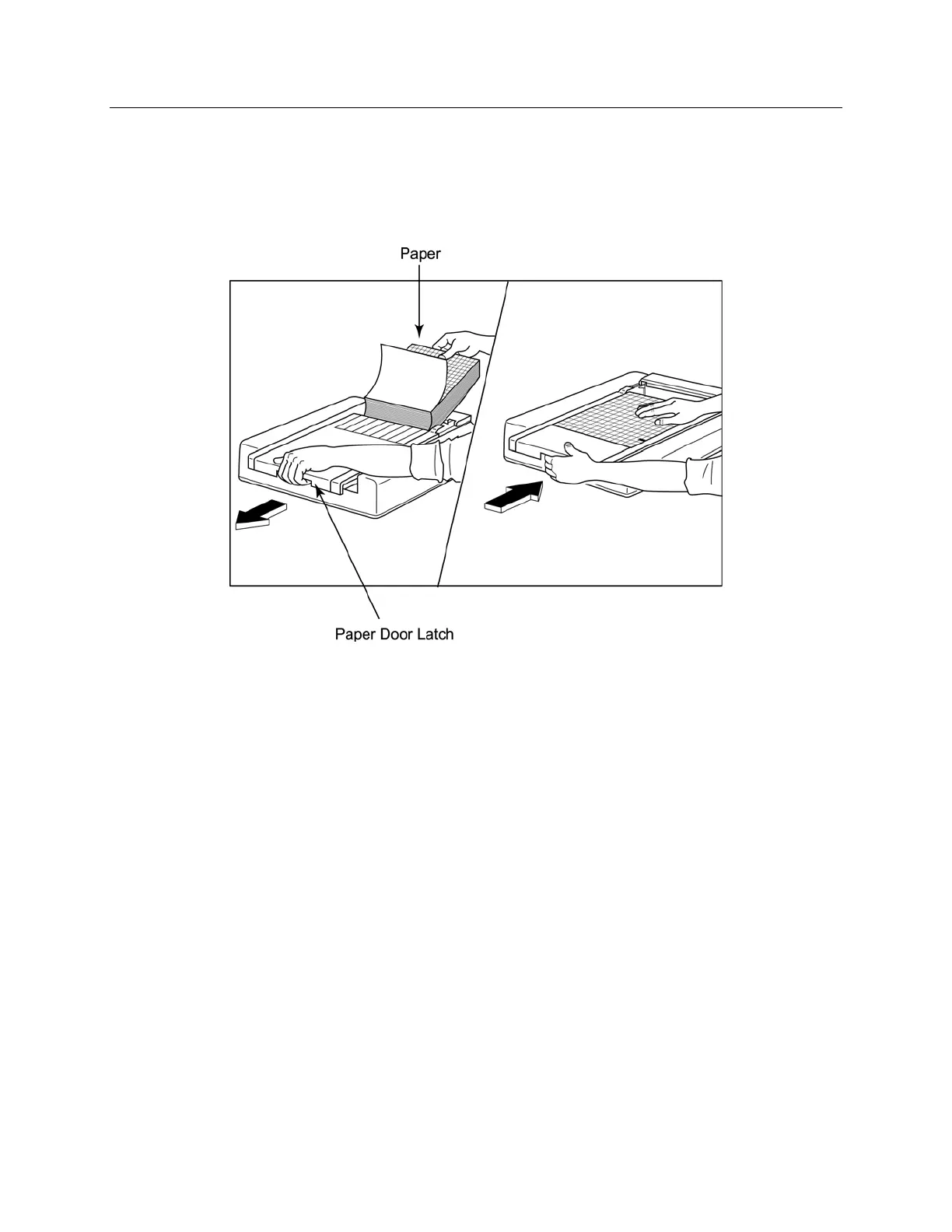

Figure F-4
1. Remove the outer packaging from the paper stack.
2. Facing the front of the unit, use the release latch on the left side and slide the paper tray cover to the left.
3. Place the pack of thermal paper into the paper tray such that the grid side of the paper is up when it is
pulled over the paper tray cover. The paper cue mark (a small black rectangle) should be in the lower
left corner.
4. Manually advance one page of paper beyond the closure point of the writer. Make sure the paper lies on
the black roller evenly within the channel of the paper door.
5. Slide writer cover to the right until the cover latches in a locked position. You will hear a sharp click when
the door is properly latched.
6. Push the form-feed button to align the cue mark and prepare the paper for printing.
