System Display

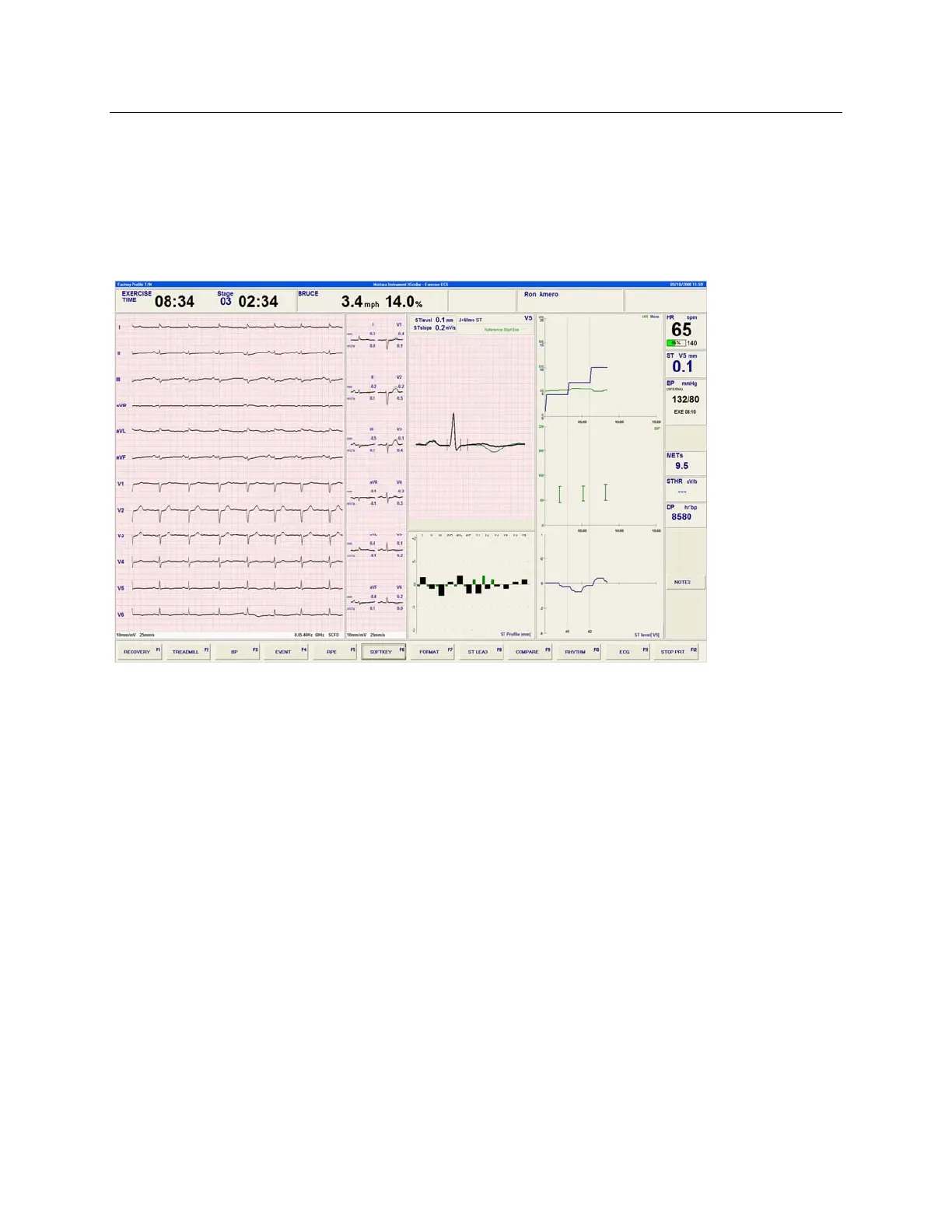

Figure 3-2
Total Exercise Time
Time clock starts at zero in the Pre-exercise phase and resets to zero at the start of the Exercise phase. When the
Exercise phase is terminated, the time clock freezes until a new stress test begins.
Stage Time/Stage
Time clock automatically tracks elapsed time of each stage of exercise. The time clock resets to zero at the start of
each stage or when you manually change the workload, and at the start of the Recovery phase. The stage number is
also displayed.
Protocol Name
Specific protocol name currently being used for the stress test.
Treadmill Speed/Grade %
Displays the MPH or KPH (speed) and percent (elevation/grade) for the current workload settings of the treadmill
when using a treadmill protocol.
NOTE: If the treadmill is off and a printout is made, dashes will print next to MPH and %.
Total Exercise
Time
Stage Time/
Stage
Protocol
Name
Treadmill Speed/
Grade % or Watts
Patient Name
Heart Rate, % of Target HR,
and Max HR to be obtained
ST Level
Blood Pressure, SpO
2
Level and
time/phase it was acquired in
METs
ST/Index
Double Product
Notes
ST Profile
