SECTION 4
27

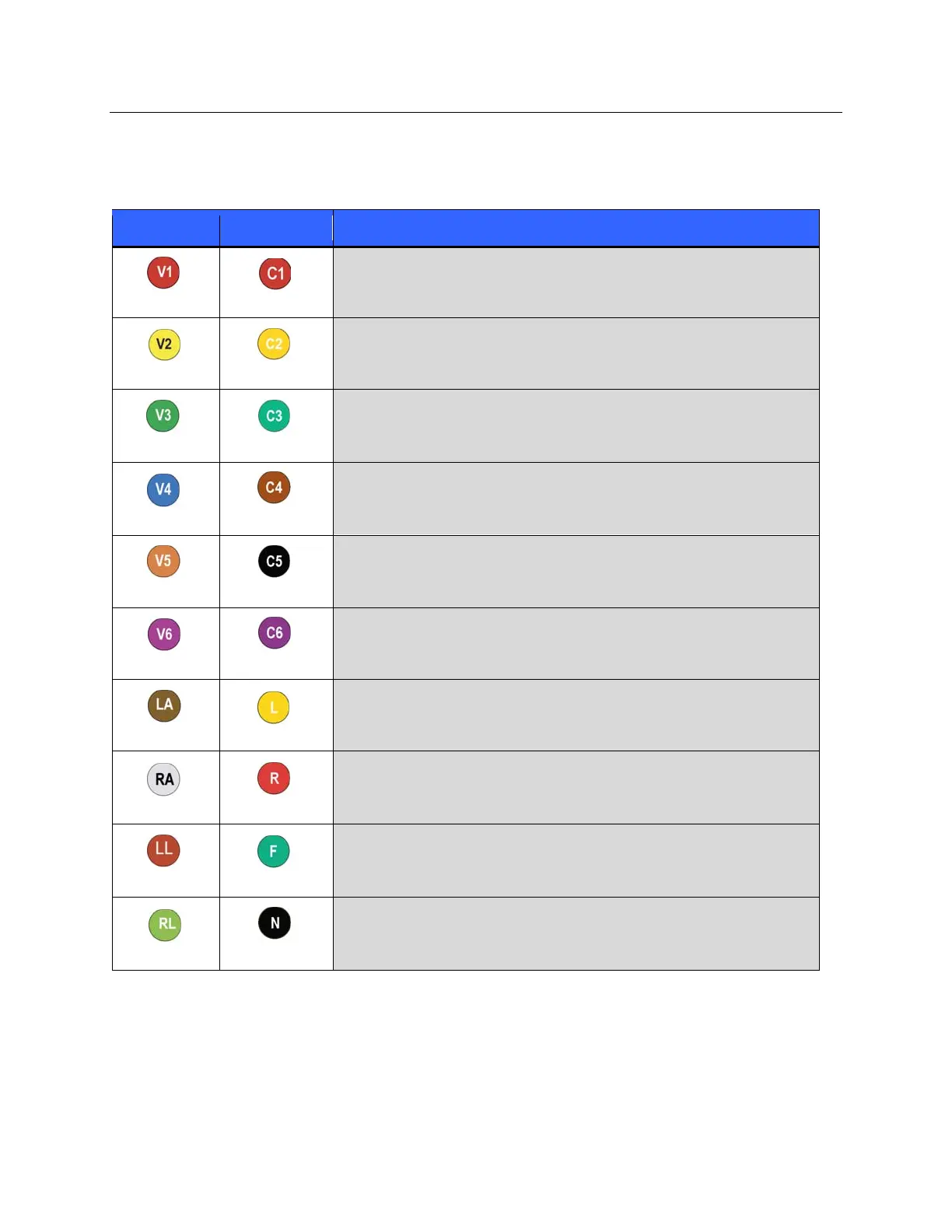

Patient Hookup Summary Table
AAMI Lead IEC Lead Electrode Position
Red
Red
Right side of the sternum in the 4th intercostal space.
Yellow
Yellow
Left side of the sternum in the 4th intercostal space.
Green
Green
Midway between V2/C2 and V4/C4.
Blue
Brown
Left midclavicular line in the 5th intercostal space.
Orange
Black
Between V4/C4 and V6/C6.
Violet
Violet
Midaxillary line on the same horizontal level as V4 and V5.
Black
Yellow
On or below the left clavicle.
White
Red
On or below the right clavicle.
Red
Green
Place on lower left side of body, as close to the hip as possible, or on the
lowest rib on the left side of the chest; see Note and Caution*.
Green
Black
Place in the area of the upper third of the sternum.
