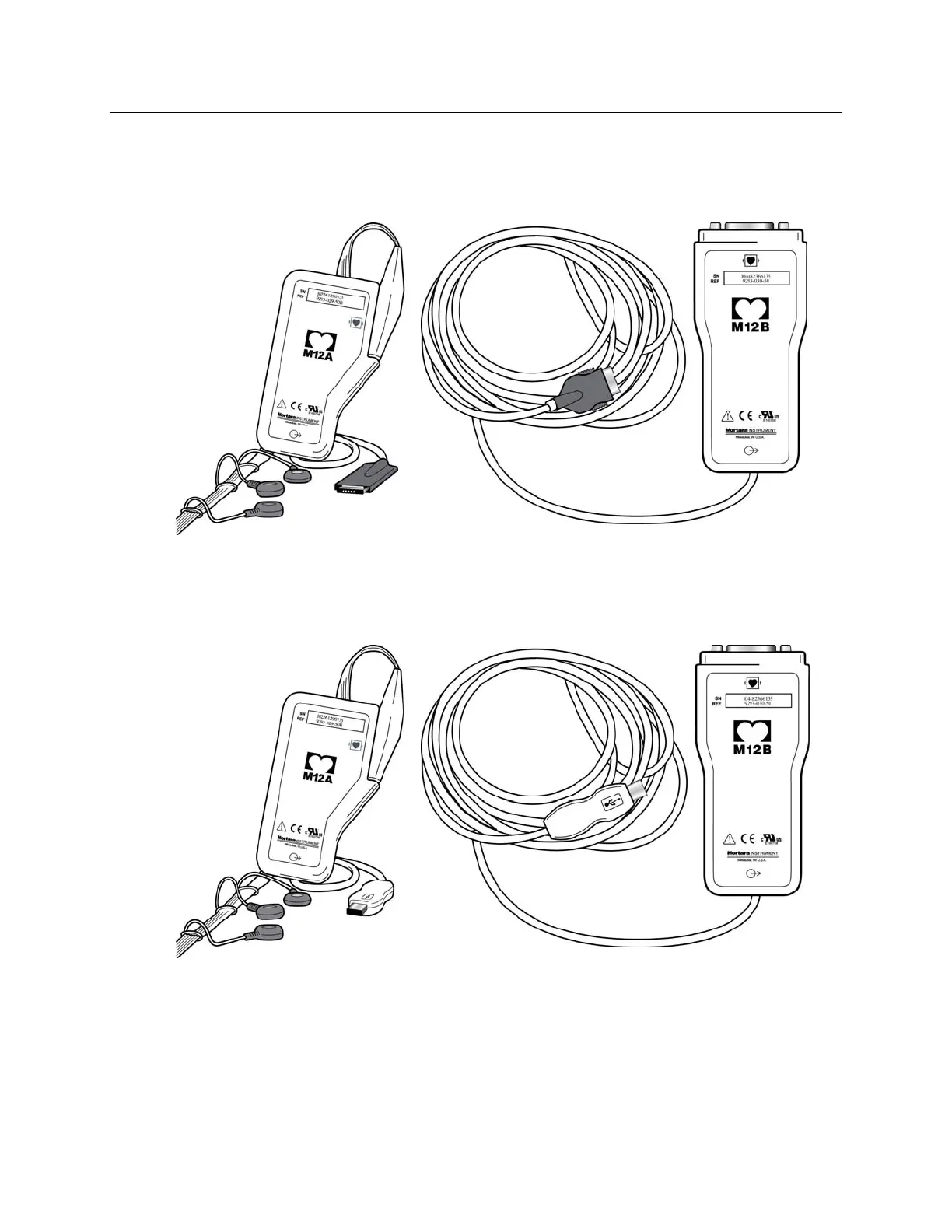

Direct-Connect Module
 permits the X-Scribe to function in a wired or tethered mode. This may be accomplished by a direct
connection to the MMM ECG port with either the M12A or the M12B patient module.
Quick-Connect Module
 permits the X-Scribe to function in a wired or tethered mode. This may be accomplished by a direct
connection to the CPU with either the M12A or the M12B patient module using the USB end.
 use of the quick-connect module means the user will not have the ability to acquire a TTL or analog
output signal.
