Description
1-2
The basic (default) model includes one power supply and one CPU module. The number of
I/O modules is selected as an option of the base model.

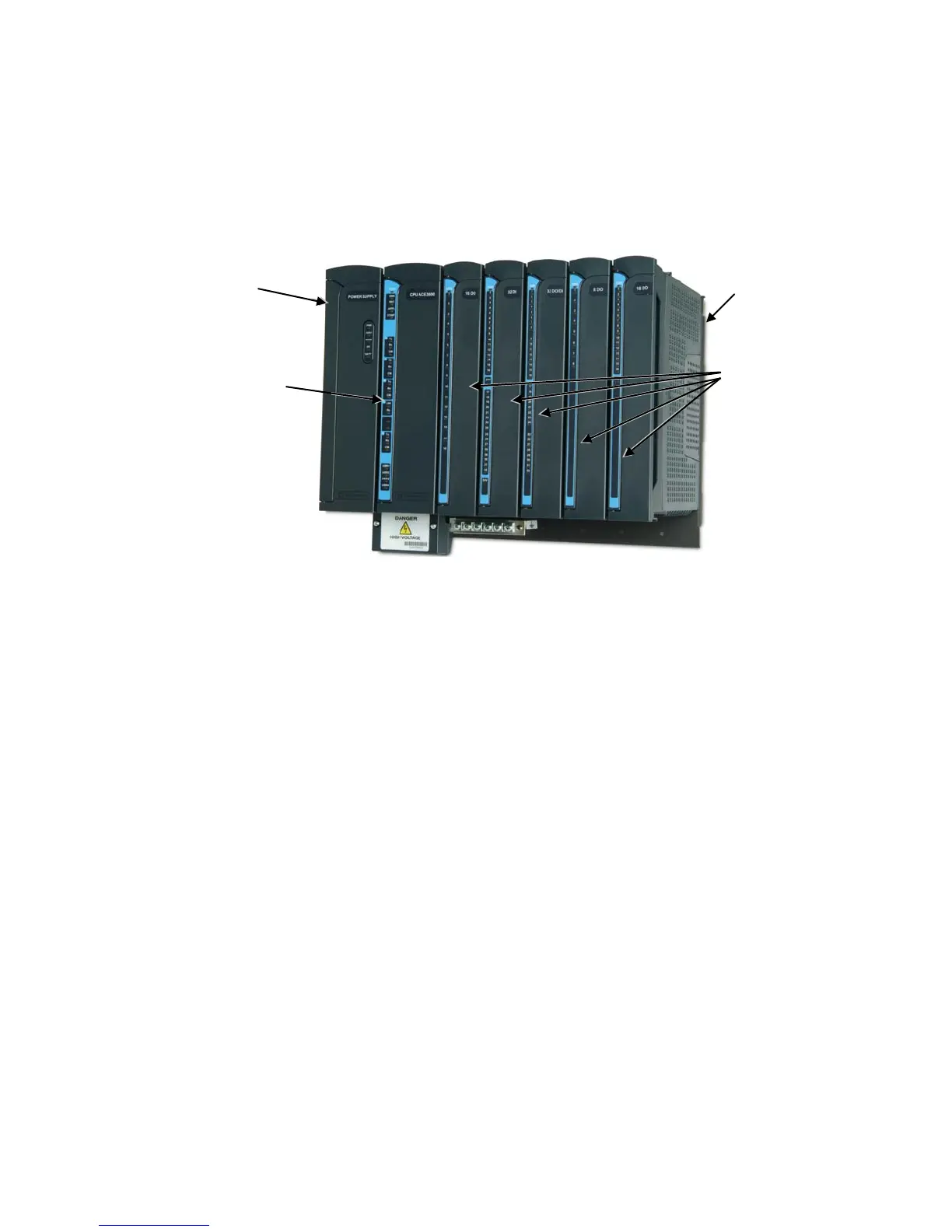

Figure 1-1 provides a general view of the ACE3600 RTU with five I/O modules.
Figure 1-1 ACE3600 RTU – General View
I/O Module Options
The following types of I/O modules are available:
• Digital Inputs (DI), including High Voltage
• Digital Outputs (DO), including High Voltage
• Analog Inputs (AI)
• Analog Outputs (AO)
• Mixed I/O
• Mixed Analog
Communication Interfaces
The ACE3600 CPU includes the following serial ports:
• Configurable RS232 or RS485 serial port
• Configurable RS232 with GPS receiver support (for time sync)
• Ethernet 10/100 Mb/s (ACE3600 CPU 3640, CPU 3680 models)
SUPPLY
MODULE
PLATE
