Motorola ACE3600 RTU User Manual

14-1
MIXED I/O MODULE
General Description
The ACE3600 Mixed I/O modules include a mixture of Digital Inputs, Relay Outputs and
Analog Inputs on the same module.
The available Mixed I/O modules are:
• 16 Digital Inputs + 4 EE DO Relay Outputs + 4 Analog Inputs ( ±20 mA)
• 16 Digital Inputs + 4 ML DO Relay Outputs + 4 Analog Inputs ( ±20 mA)
Figure 14-1 provides a general view of the ACE3600 Mixed I/O module.
D
I
D
O
O
F
U
F
O
F
U
F
O
F
U
F
U
F
1
2
3
4
O
F
A
I
E
R
R

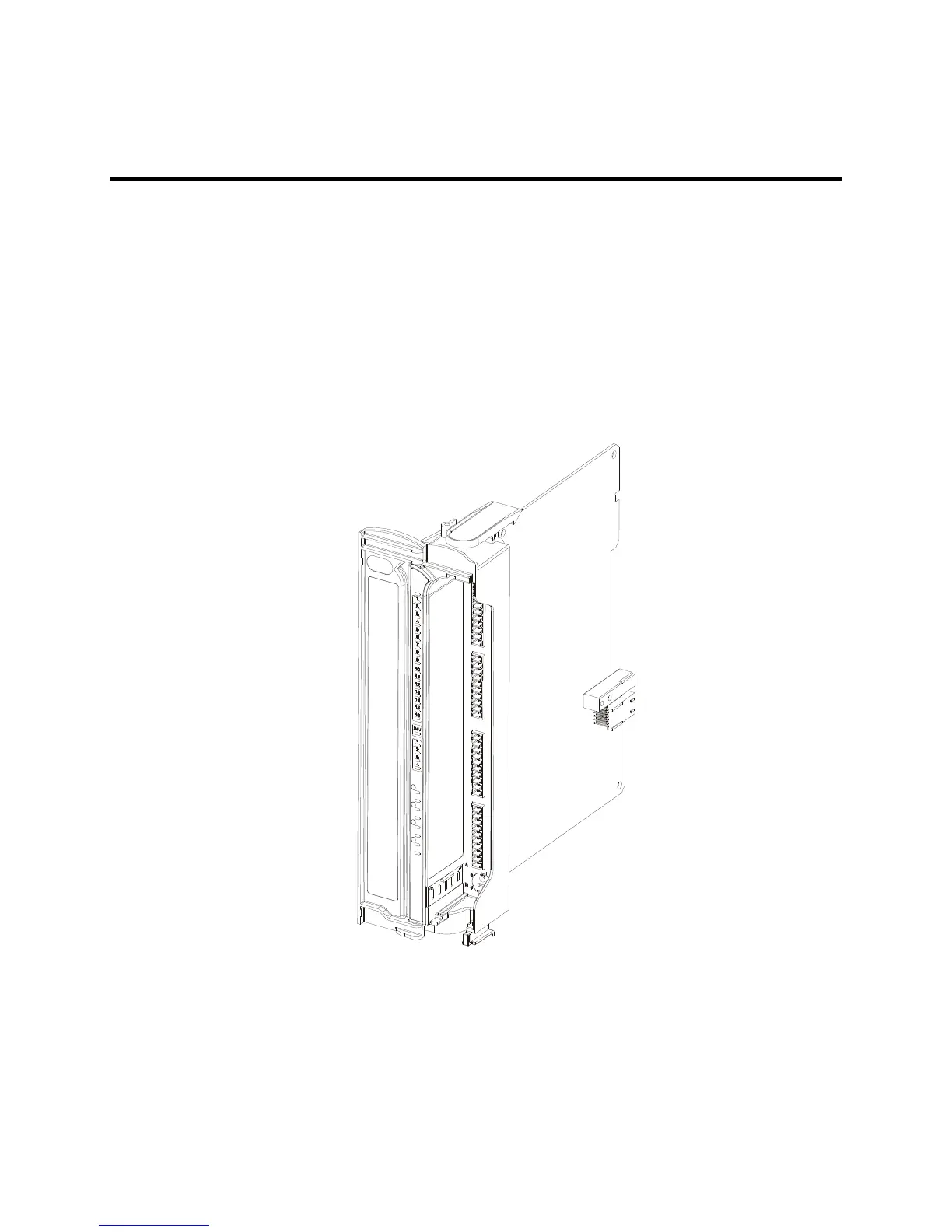

Figure 14-1 ACE3600 Mixed I/O Module – General View
Another type of mixed I/O is found on the Digital Output/Digital Input (DO/DI) FET module.
See the Digital Output/Digital Input (DO/DI) FET module chapter above for more information.
