5-12 Troubleshooting Charts: Troubleshooting Test Points
5.4 Troubleshooting Test Points
The following figures show the location of the main board test points for measuring voltages and
viewing waveforms.

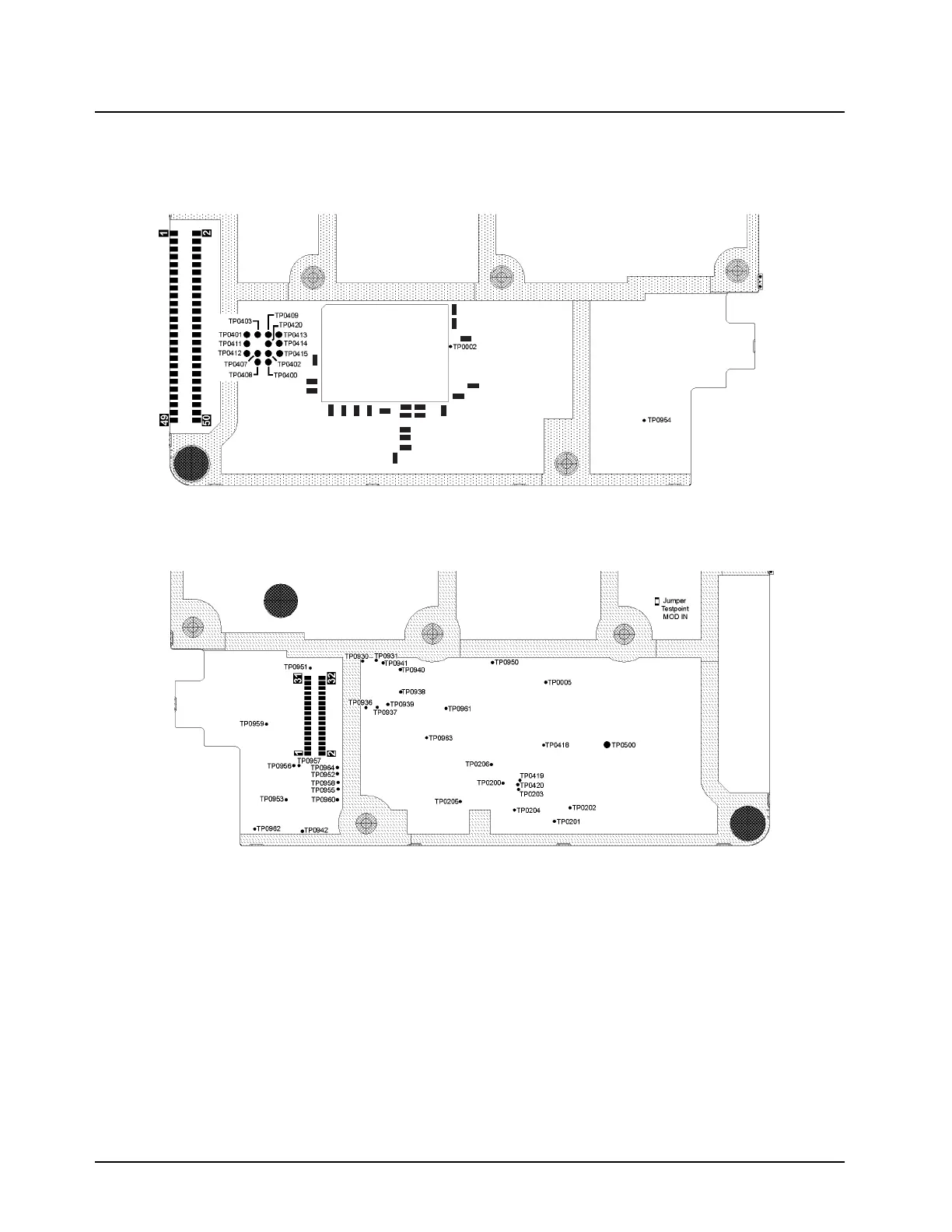

Figure 5-1. Main Board Test Points—Top Side (for Mid Power)
Figure 5-2. Main Board Test Points—Bottom Side (for Mid Power)
MAEPF-27802-O
ID7
ID6 ID5 ID3
ID4
ID2
ID1
ID0
MAEPF-27801-O
