Motorola ASTRO Digital XTL 5000

Interconnect Boards Schematics, Component Location Diagrams, and Parts Lists: Remote Interconnect Board (High Power Only) 8-13
6881096C74-B May 25, 2005
8.4 Remote Interconnect Board (High Power Only)

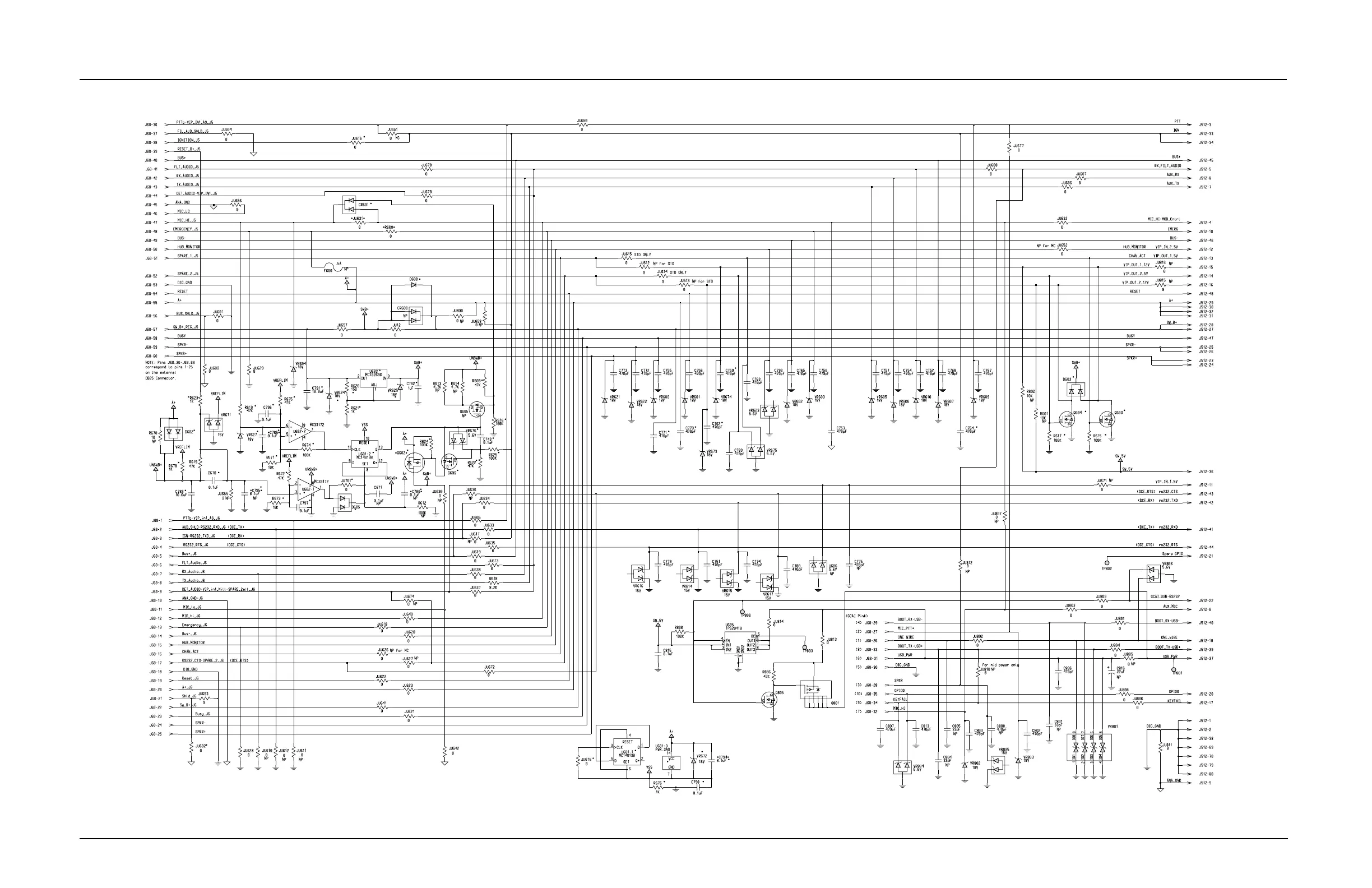

Figure 8-5. HLN6901C, HLN6902C Remote Interconnect Board Schematic (for High Power only)
