Motorola ASTRO Digital XTL 5000 Detailed Service Manual

May 25, 2005 6881096C74-B
5-60 Troubleshooting Charts: Flowcharts
5.6.46 RF Power Amplifier (RFPA)—No or Low TX Power Output (700–800 MHz)—
Part 3 of 5

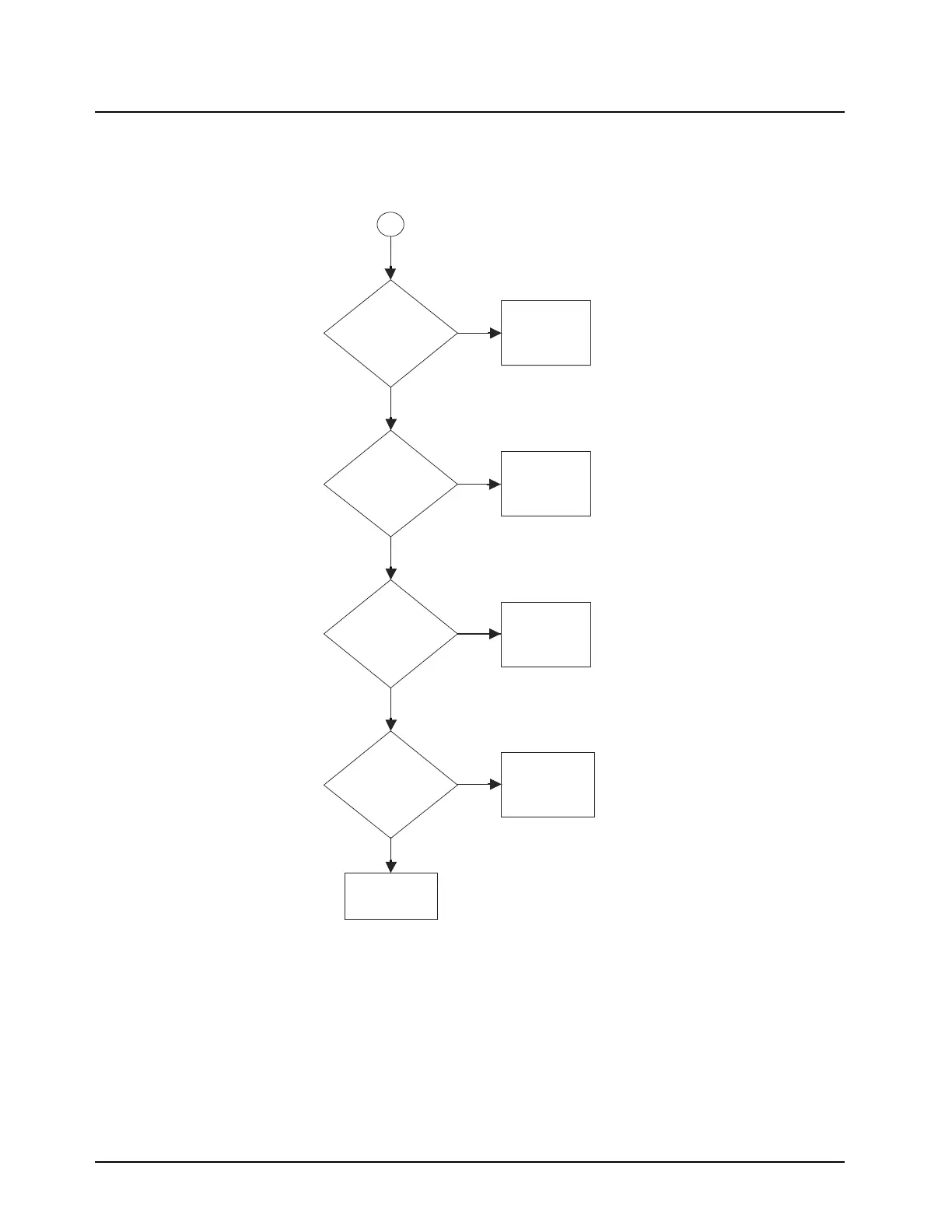

Figure 5-48. RF Power Amplifier (RFPA)—No or Low TX Power Output (700–800 MHz)—Part 3 of 5
Yes
Defective parts in
antenna switch?
(Note 15)
Repair/replace
defective parts
Defective parts in
harmonic filter?
(Note 16)
No
Yes
Repair/replace
defective parts
No
Defective parts in
power detector?
(Note 17)
Yes
Repair/replace
antenna connector
Continuity check
fails from R6740 and
the antenna connector
external coax?
No
Yes
Repair/replace
defective parts
B
MAEPF-27931-O
Go to the
Controller GPIO
Section
No
