6816985H01-F February 14, 2012
UHF2 Troubleshooting Waveforms: PP25 Preselector 2 Output 7.3-27
7.3.26PP25 Preselector 2 Output
Probe point: C47.

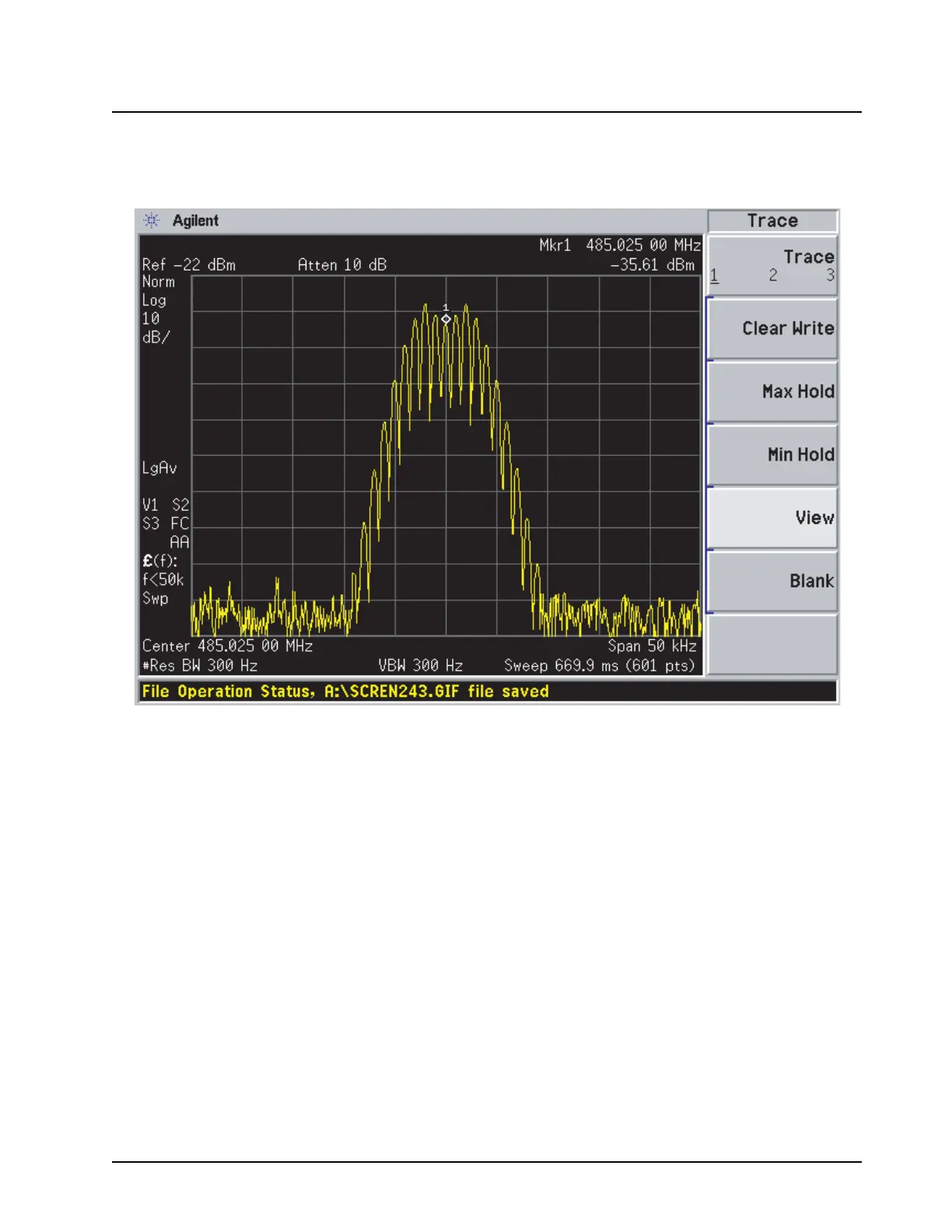

Typical RX signal with 1 kHz modulation. Display shows modulation components of carrier.
