700/800 MHz Troubleshooting Waveforms: TP14 1st LO Control Voltage 7.4-19
7.4.18TP14 1st LO Control Voltage
Test point TP202

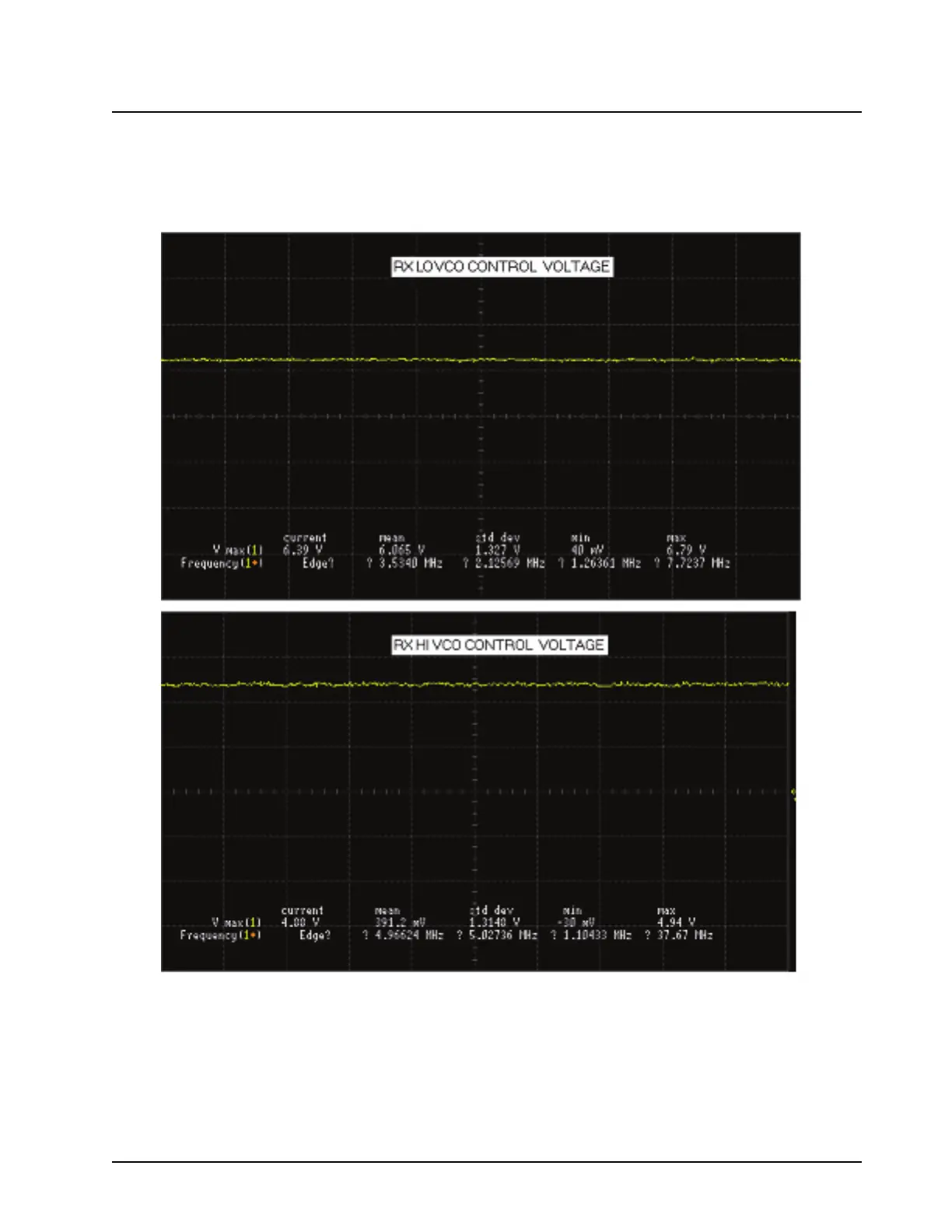

Typical value when tuned to receive at 758.475 MHz.
Typical value when tuned to receive at 873.775 MHz.
