7.4-20 700/800 MHz Troubleshooting Waveforms: PP15 VCO Output
7.4.19PP15 VCO Output
Probe point:C261 for LO Output (located under shield)
C266 for TX Output (located under shield)
C236 for Preselector Output (located under shield).

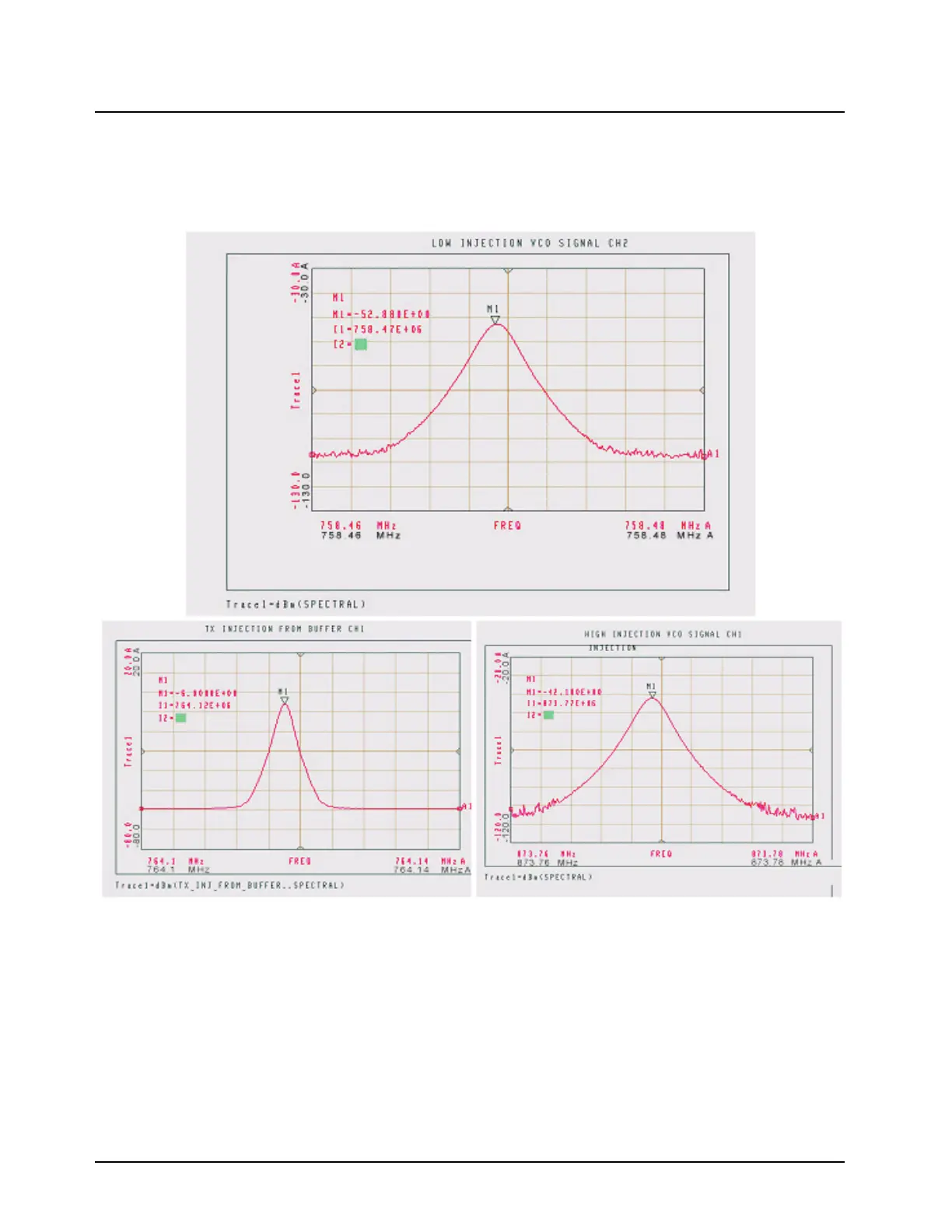

RX VCO LOW Injection
RX VCO HIGH InjectionTX VCO
