February 14, 2012 6816985H01-F

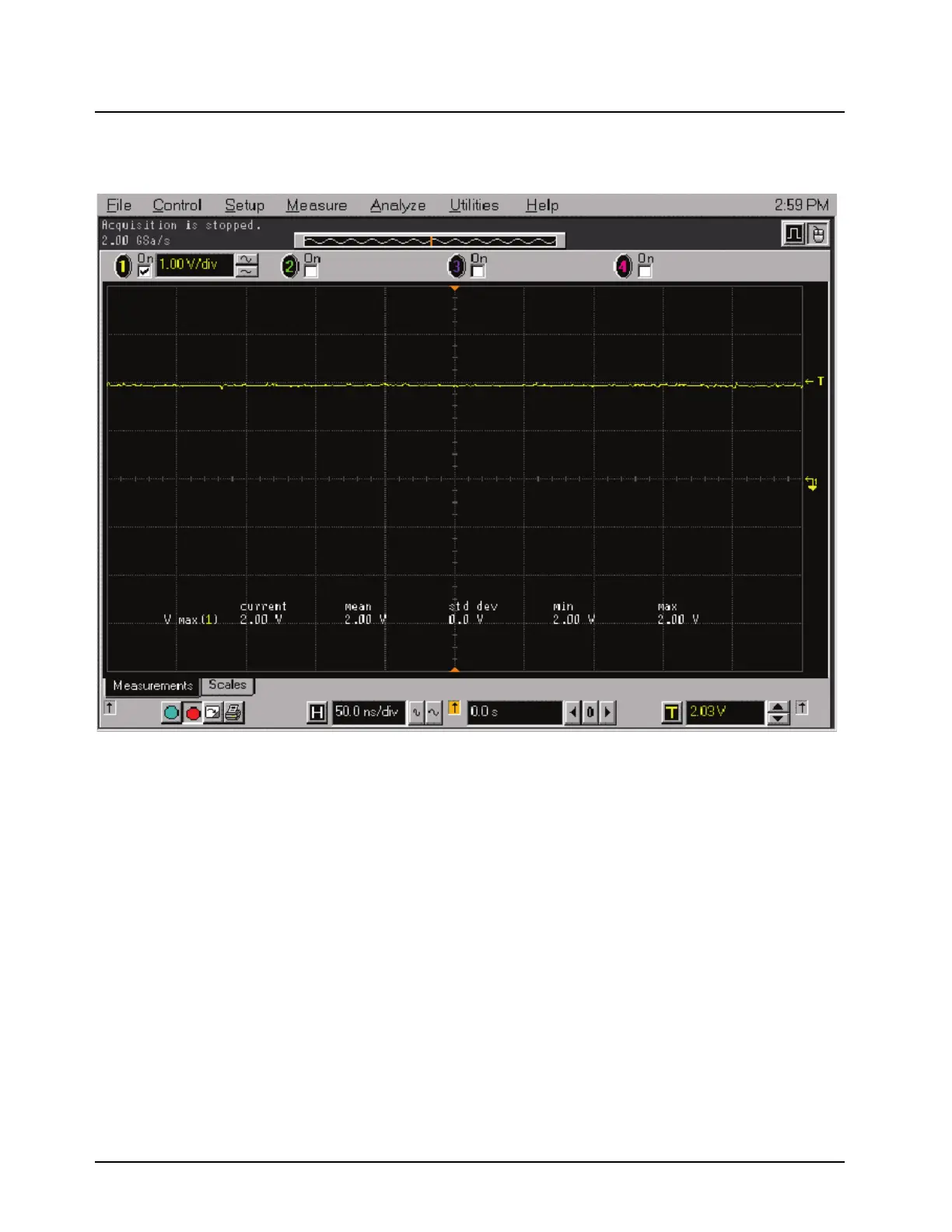

7.4-34 700/800 MHz Troubleshooting Waveforms: PP29 2nd LO Control Voltage
7.4.33PP29 2nd LO Control Voltage
Probe point: U401, pin 38 (located under shield).
