6816985H01-F February 14, 2012

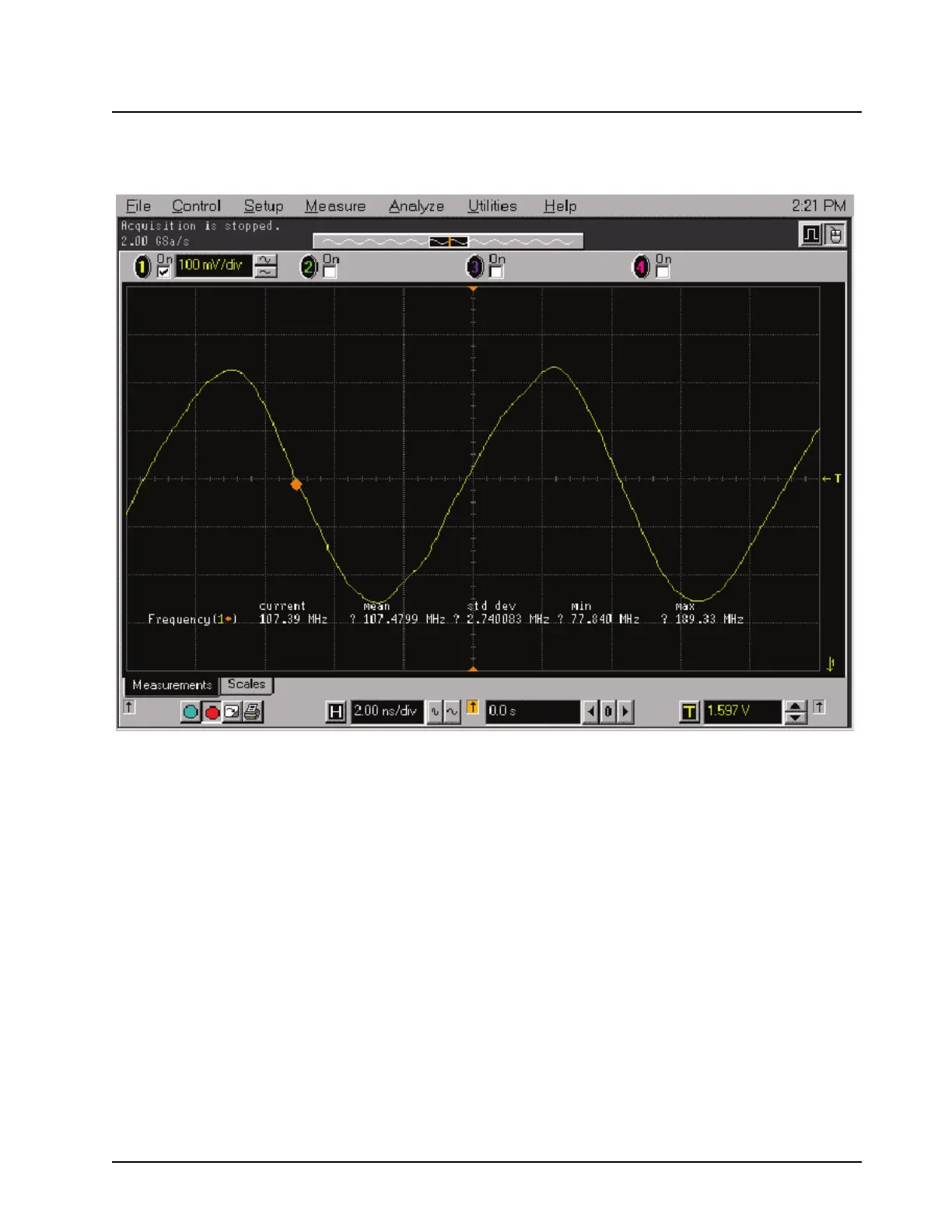

700/800 MHz Troubleshooting Waveforms: PP30 2nd LO VCO Buffer Output 7.4-35
7.4.34PP30 2nd LO VCO Buffer Output
Probe point: Shield C407.
