6816985H01-F
February 14, 2012
700/800 MHz Troubleshootin
g Waveforms:

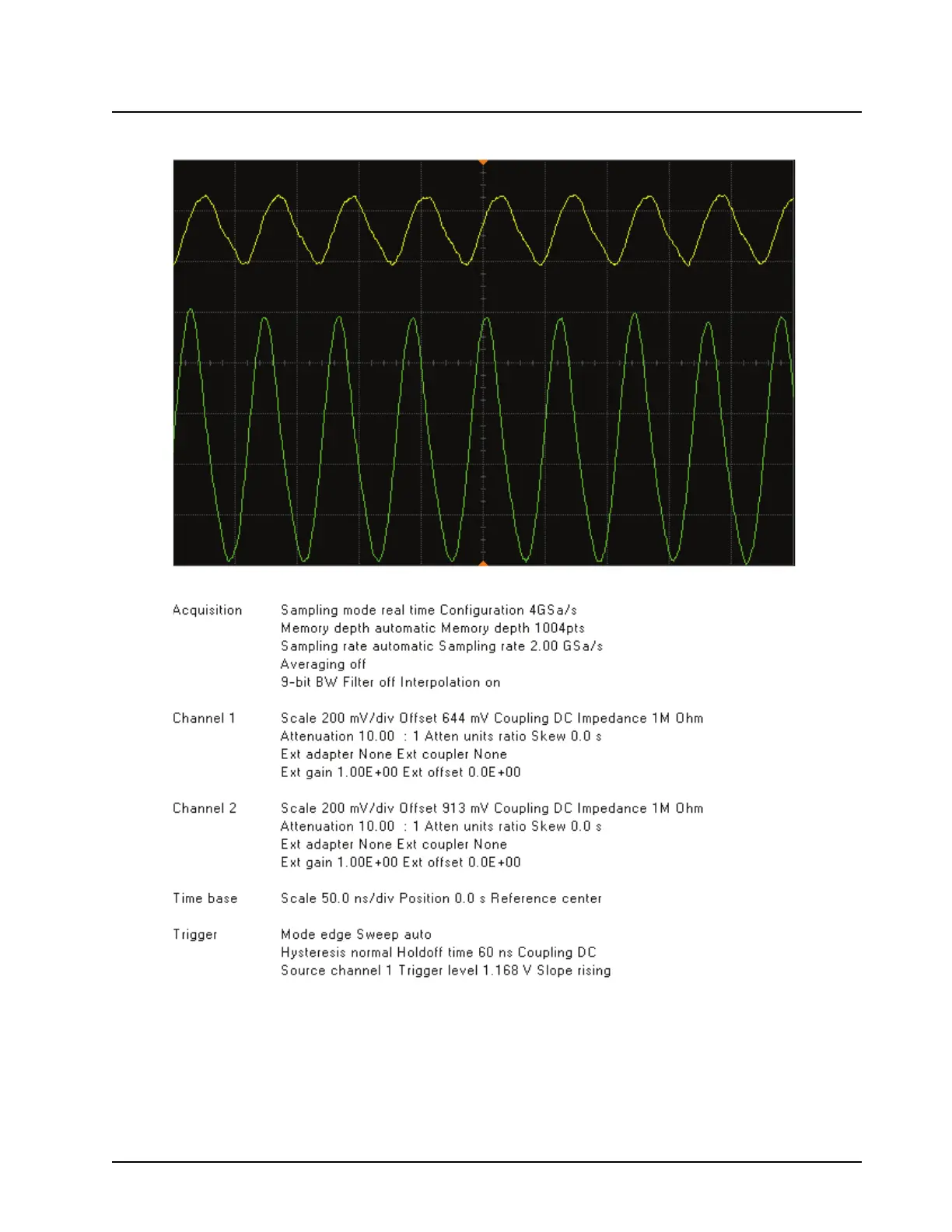

16.8 MHz Buffer Input and Output
7.4-39
7.4.38
16.8 MHz Buffer Input and Output
T
race 1: Buffer input at R729.
T
race 2: Buffer output at C726.
Note: There sh
ould be no voltage gain betwe
en the Buffer’s input and output. The 16.8M
Hz clock
should be a
n appro
ximately 1V
peak-to-
peak sinc
e wave.
