7.4-40 700/800 MHz Troubleshooting Waveforms: 32.768 kHz Clock Outputs

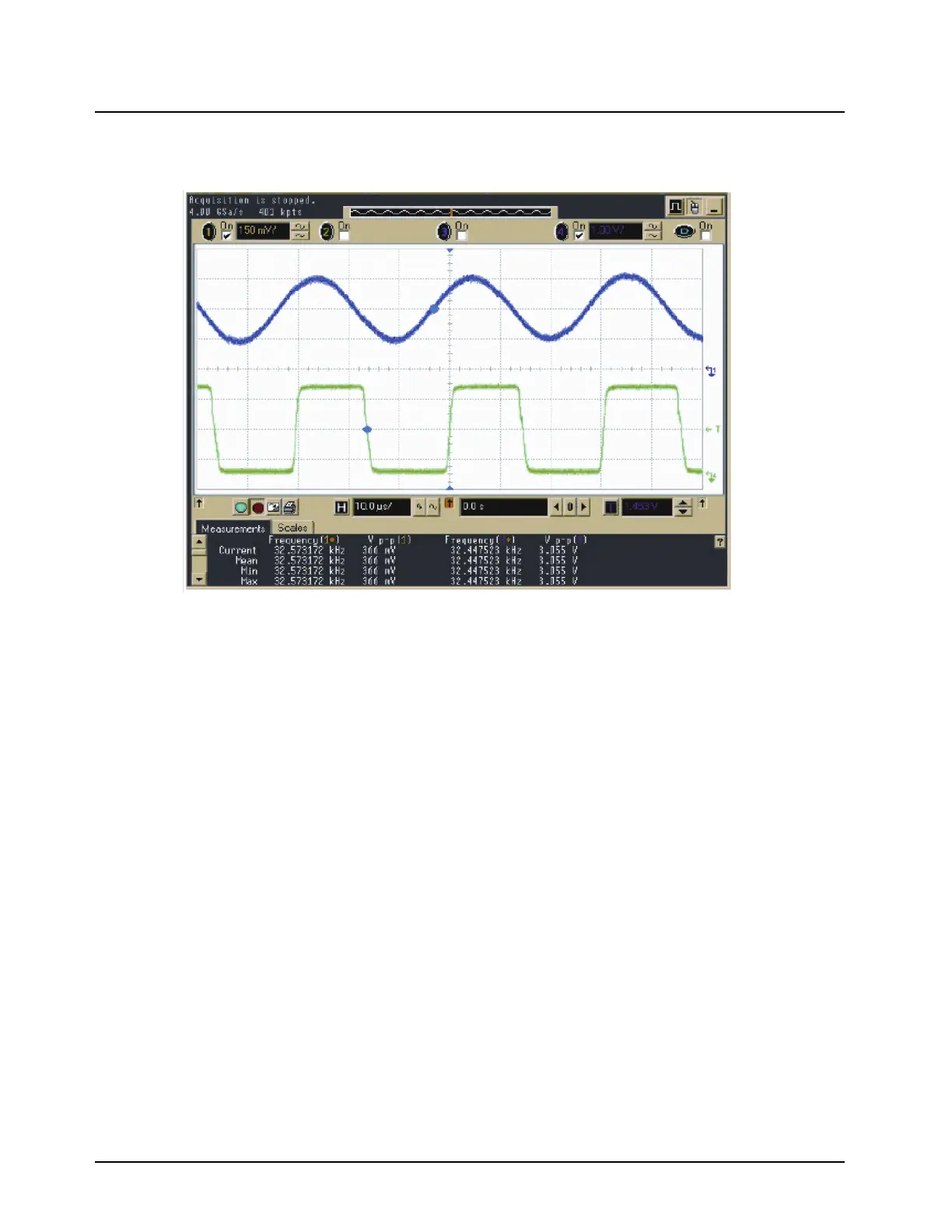

7.4.3932.768 kHz Clock Outputs
Trace 1: Output at C743.
Trace 2: Output at U712, pin 4.
