7.5-30 Troubleshooting Waveforms: PP25 Preselector 2 Output
7.5.29PP25 Preselector 2 Output
Probe point: FL2, pin 2.

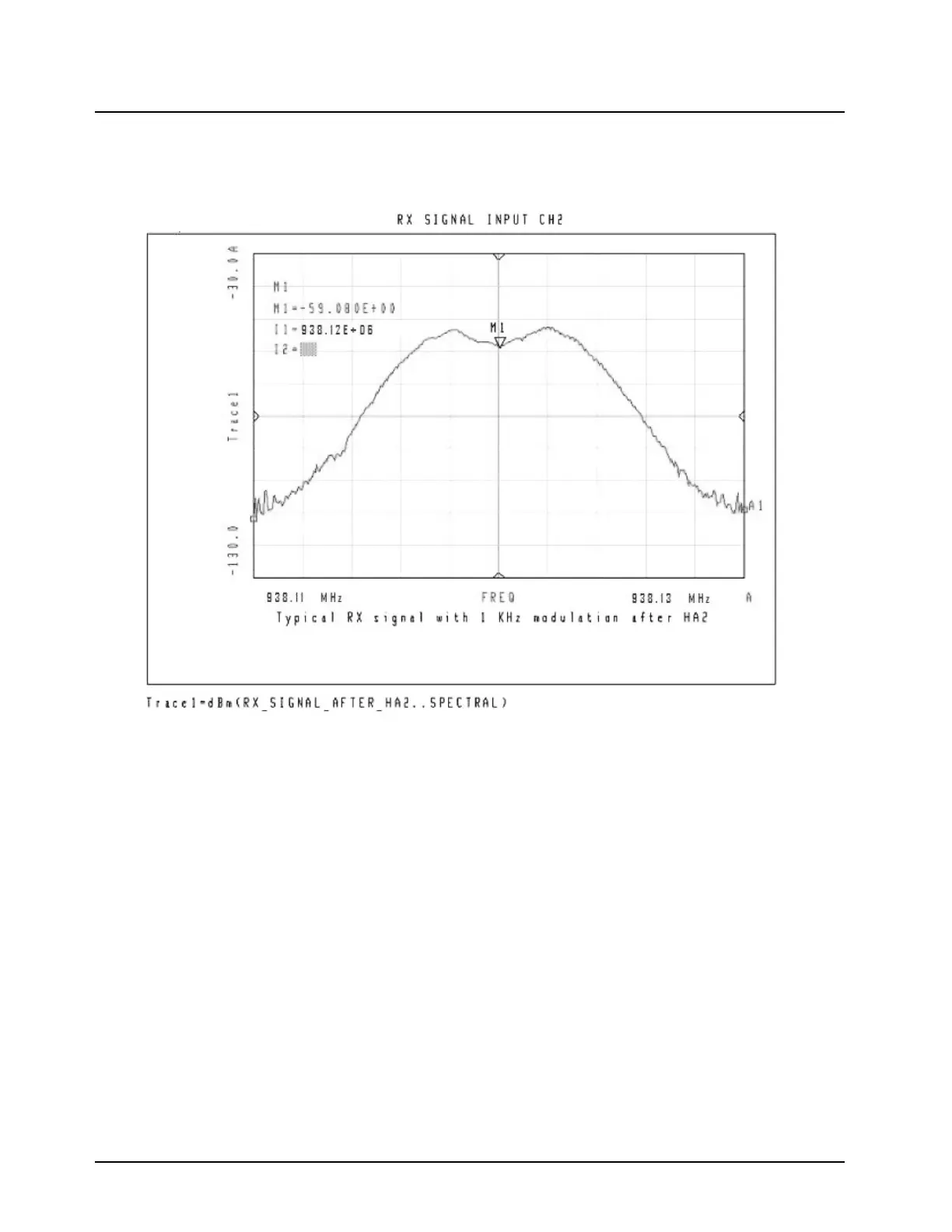

Typical RX signal with 1 kHz modulation. Display shows modulation components of carrier.
