6816985H01-F February 14, 2012

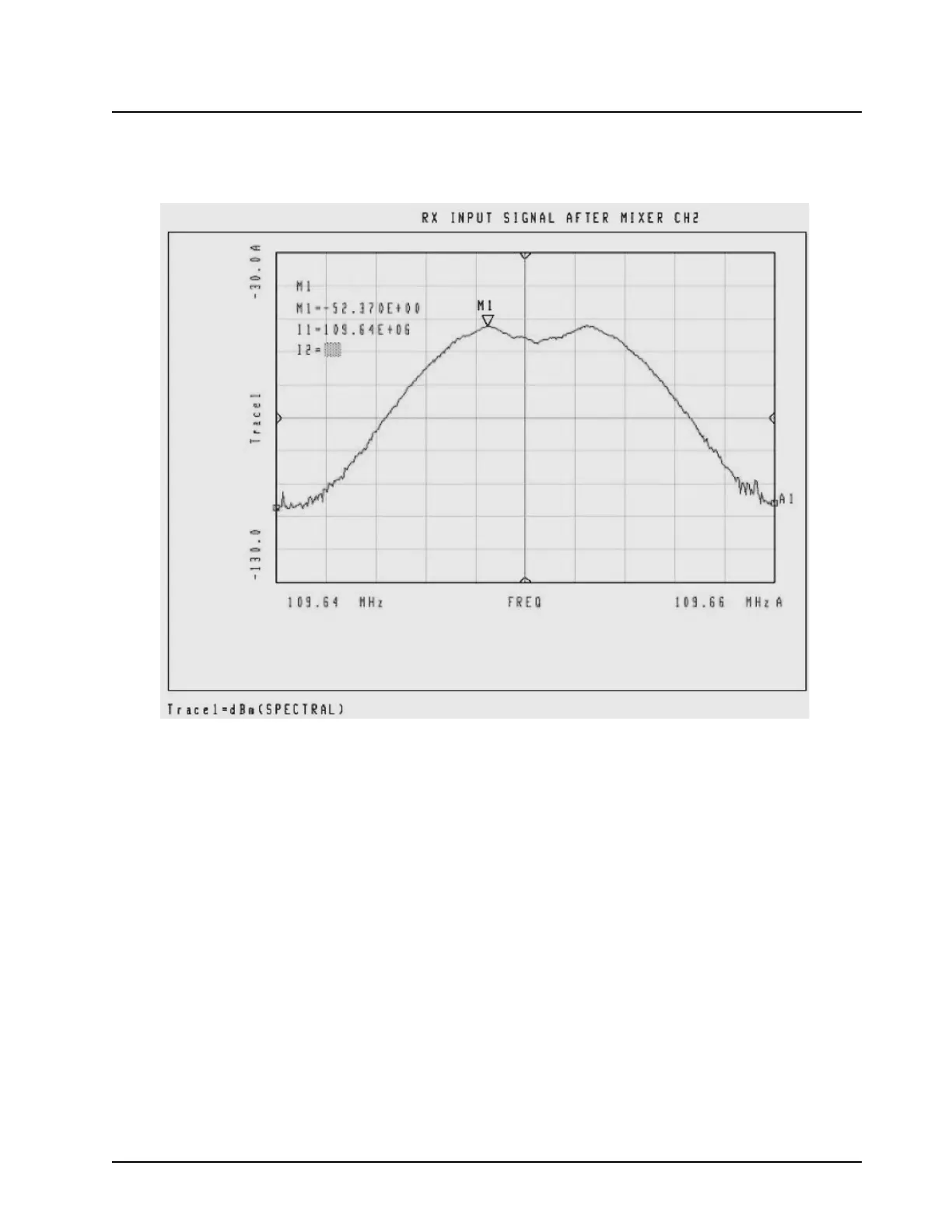

Troubleshooting Waveforms: PP26 Mixer Out (IF) 7.5-31
7.5.30PP26 Mixer Out (IF)
Probe point: L10.
Typical RX signal with 1 kHz modulation. Display shows modulation components of carrier.
