12.8AssemblingtheSecurityAdapter

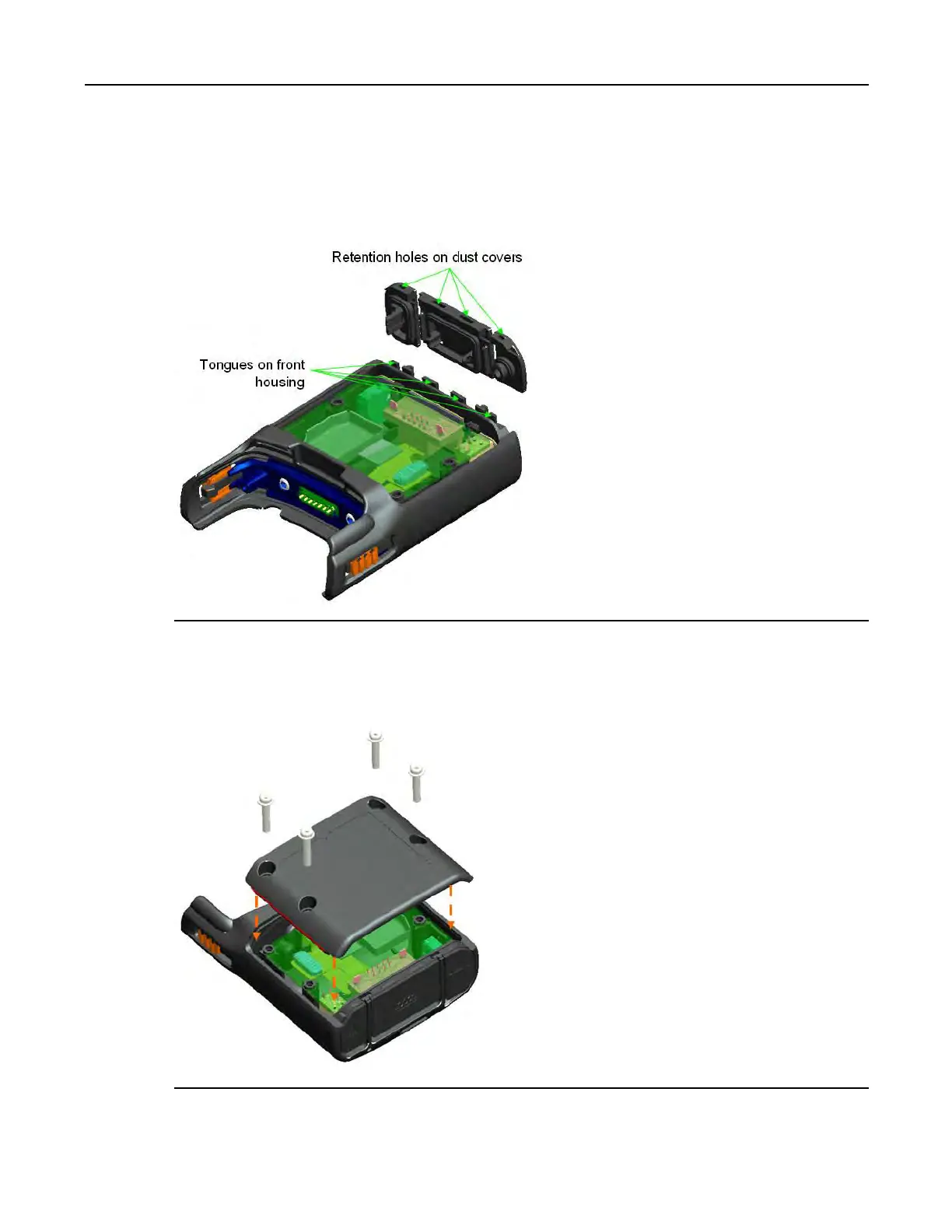

7Slotinthedustcoverretentionholesthroughthetonguefeaturesonthefronthousing.
Figure12-13AssemblingDustCovers
8Pressdownthebackhousingtothefronthousingvertically.Beforeclosingthebackhousing,verifythatthe
USBclipisassembledcorrectly.
Figure12-14AssemblingBackHousingtoFrontHousing
6871018P37-F-January2013
12-13
