MTR3000 Backplane: Description 6-3
6.1.1.1 Location of Backplane Interface Board Connectors
Figure 6-2 shows the location of the connectors on each side of the Backplane Interface Board.

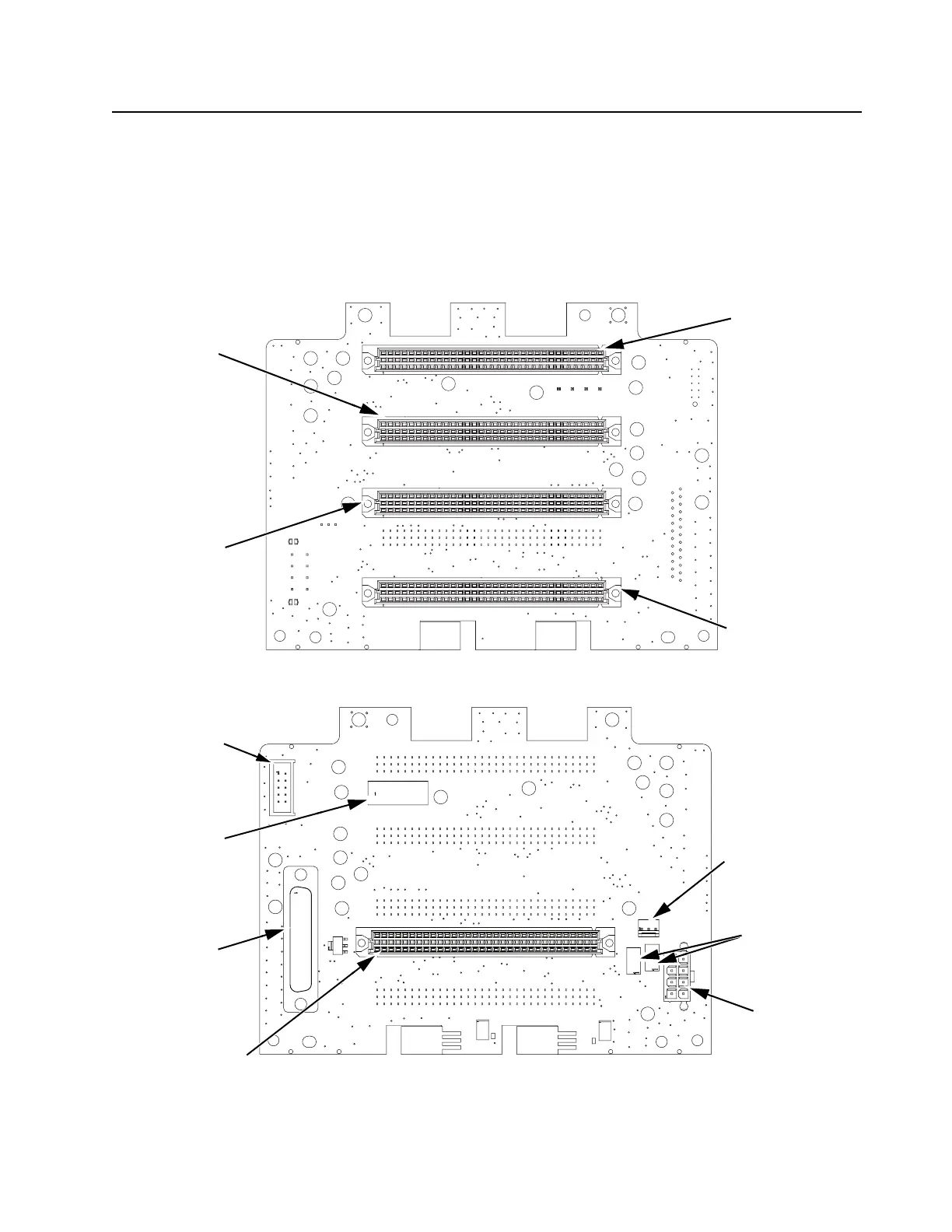

Figure 6-2 Backplane Interface Board Connector Locations (Front and Rear View)
P10
Antenna Relay/
Ptemp+ Connector
F1, F2
Fuses
J4
Connects to
Wireline Interface
Board
J1
Connects to
Option Board no.1
J2
Connects to
Option Board no.2
J3
Connects to
Station Control Module
P7
Connects to
Control Cable From
Power Amplifier
P8
Connects to Power
Supply Cable
J5
System Connector
J7
Aux Connector
Front View
Rear View
J6
Wireline Connector
